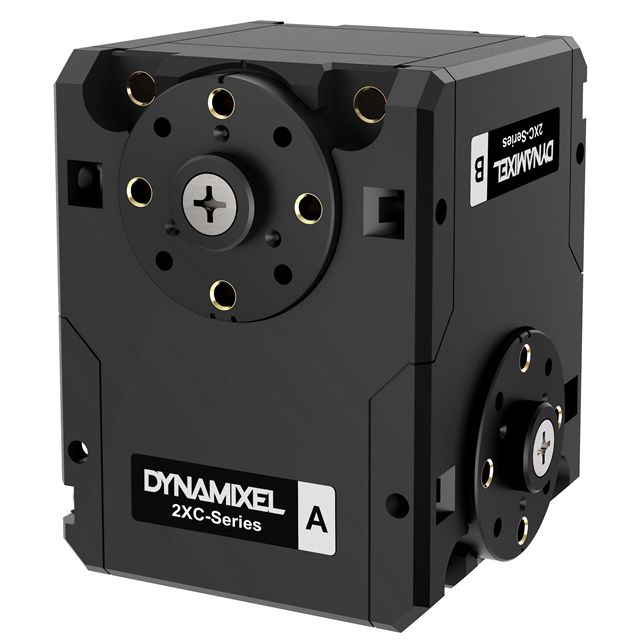

2XC430-W250-T DYNAMIXEL SERVO
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Type | Function | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Motor Type | Voltage - Rated | Encoder Type | Termination Style | Weight | Weight | RPM | Gear Reduction Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | -5 °C | 72 °C | DC Motor | Servomotor | 254.9 oz-in | 1800 mNm | Integrated Controller | 1.417 " | 46.5 mm | 1.83 in | 36 mm | Brushed | 12 VDC | Absolute | Connector | 0.225 lb | 102 g | 64 RPM | 257.4 |
