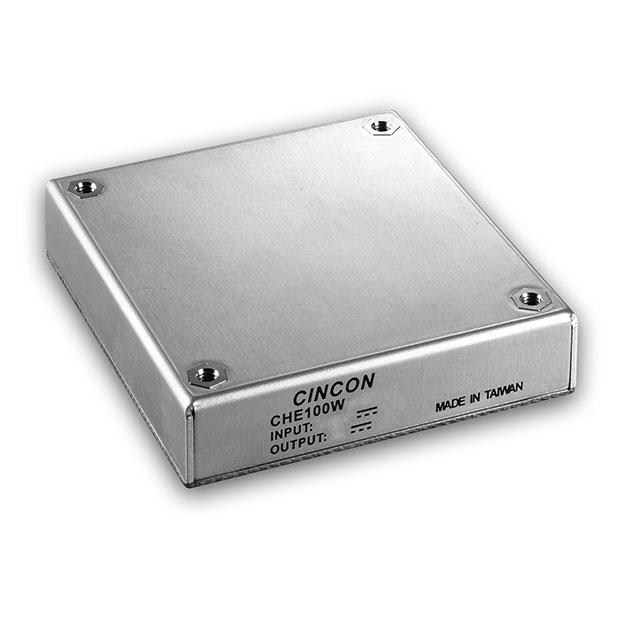

CHE100W Series

Catalog

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT

Part	Voltage - Isolation	Approval Agency	Mounting Type	Voltage - Input (Min) [Min]	Type	Applications	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Control Features	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Package / Case	Features	Efficiency
Cincon Electronics Co. LTD CHE100W-24S05N	1.5 kV	CE	Through Hole	9 V	Isolated Module	ITE (Commercial)	20 A	Half Brick	5 V	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Active Low Enable	60950-1	105 C	-40 °C	36 V	100 W	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO
Cincon Electronics Co. LTD CHE100W-48S05N	1.5 kV	CE	Through Hole	18 V	Isolated Module	ITE (Commercial)	20 A	Half Brick	5 V	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Active Low Enable	60950-1	105 C	-40 °C	75 V	100 W	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	92 %
Cincon Electronics Co. LTD CHE100W-24S12N	1.5 kV	CE	Through Hole	9 V	Isolated Module	ITE (Commercial)	8.4 A	Half Brick	12 V	1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Active Low Enable	60950-1	105 C	-40 °C	36 V	101 W	Half Brick	OCP OTP OVP Remote On/Off SCP UVLO	90.5 %
