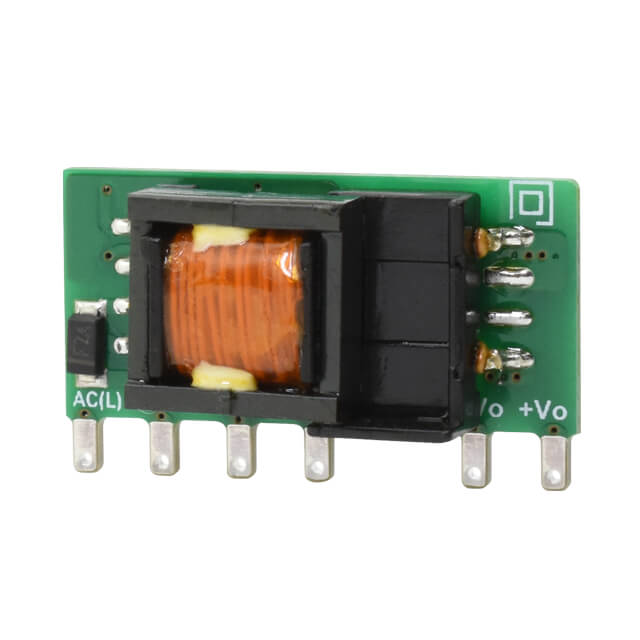

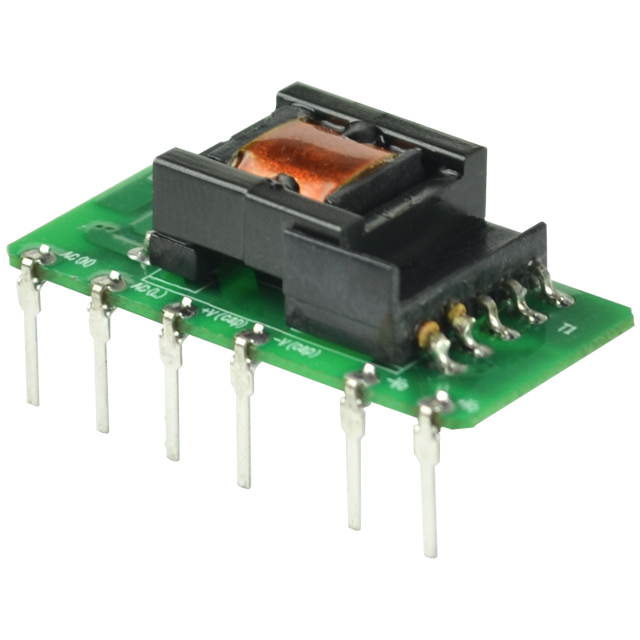

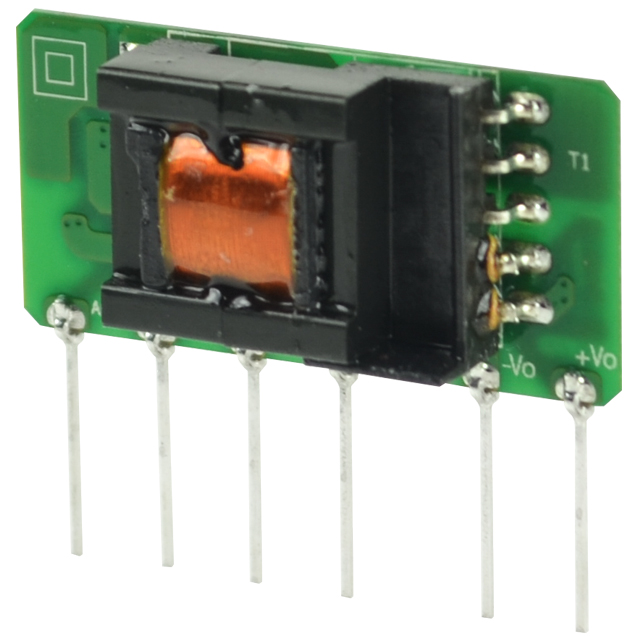

PBO-3 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 5V 3W
| Part | Voltage - Output 1 | Current - Output (Max) [Max] | Efficiency | Type | Applications | Package / Case | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Load Regulation | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Mounting Type | Line Regulation | Weight | Weight | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 5 V | 600 mA | 72 % | Open Frame | Household Appliances ITE (Commercial) | 6-SIP Module | 3 W | 12.6 mm | 11 mm | 26.4 mm | 0.43 in | 0.49 " | 1.04 in | 3 % | CE cURus | 70 VDC 85 VAC | 305 VAC 430 VDC | 60335-1 62368-1 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | ||||
CUI Inc. | 3.3 V | 600 mA | 67 % | Open Frame | Household Appliances ITE (Commercial) | 6-SIP Module | 1.98 W | 12.6 mm | 11 mm | 26.4 mm | 0.43 in | 0.49 " | 1.04 in | 3 % | CE cURus | 70 VDC 85 VAC | 305 VAC 430 VDC | 60335-1 62368-1 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | ||||
CUI Inc. | 24 V | 125 mA | 80 % | Open Frame | Household Appliances ITE (Commercial) | 6-SIP Module | 3 W | 12.6 mm | 11 mm | 26.4 mm | 0.43 in | 0.49 " | 1.04 in | 3 % | CE cURus | 70 VDC 85 VAC | 305 VAC 430 VDC | 60335-1 62368-1 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | ||||
CUI Inc. | 9 V | 333 mA | 76 % | Open Frame | Household Appliances ITE (Commercial) | 6-SIP Module | 3 W | 12.6 mm | 11 mm | 26.4 mm | 0.43 in | 0.49 " | 1.04 in | 3 % | CE cURus | 70 VDC 85 VAC | 305 VAC 430 VDC | 60335-1 62368-1 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | ||||
 CUI Inc. | 3.3 V | 600 mA | 63 % | Open Frame | ITE (Commercial) | 12-SIP Module 6 Leads | 2 W | 35 mm | 0.43 in | 0.71 in | 1.38 " | 2.5 % | CB Scheme EN IEC UL | 70 VDC 85 VAC | 305 VAC 430 VDC | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | 0.013 lb | 5.9 g | 11 mm | 18 mm | ||
CUI Inc. | 15 V | 200 mA | 78 % | Open Frame | Household Appliances ITE (Commercial) | 6-SIP Module | 3 W | 12.6 mm | 11 mm | 26.4 mm | 0.43 in | 0.49 " | 1.04 in | 3 % | CE cURus | 70 VDC 85 VAC | 305 VAC 430 VDC | 60335-1 62368-1 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | ||||
CUI Inc. | 12 V | 250 mA | 77 % | Open Frame | Household Appliances ITE (Commercial) | 6-SIP Module | 3 W | 12.6 mm | 11 mm | 26.4 mm | 0.43 in | 0.49 " | 1.04 in | 3 % | CE cURus | 70 VDC 85 VAC | 305 VAC 430 VDC | 60335-1 62368-1 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | ||||
 CUI Inc. | 3.3 V | 600 mA | 63 % | Open Frame | ITE (Commercial) | 12-SIP Module 6 Leads | 2 W | 11 mm | 18 mm | 35 mm | 0.71 in | 0.43 in | 1.38 " | 2.5 % | CB Scheme EN IEC UL | 70 VDC 85 VAC | 305 VAC 430 VDC | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | 0.013 lb | 5.9 g | ||
CUI Inc. | 24 V | 125 mA | 80 % | Open Frame | ITE (Commercial) | 12-SIP Module 6 Leads | 3 W | 11 mm | 18 mm | 35 mm | 0.71 in | 0.43 in | 1.38 " | 2.5 % | CB Scheme EN IEC UL | 70 VDC 85 VAC | 305 VAC 430 VDC | 55024 55032 Class A 60950-1 61000-3-2 61000-3-3 | -40 °C | 85 °C | 1 | Through Hole | 1.5 % | 0.013 lb | 5.9 g |
