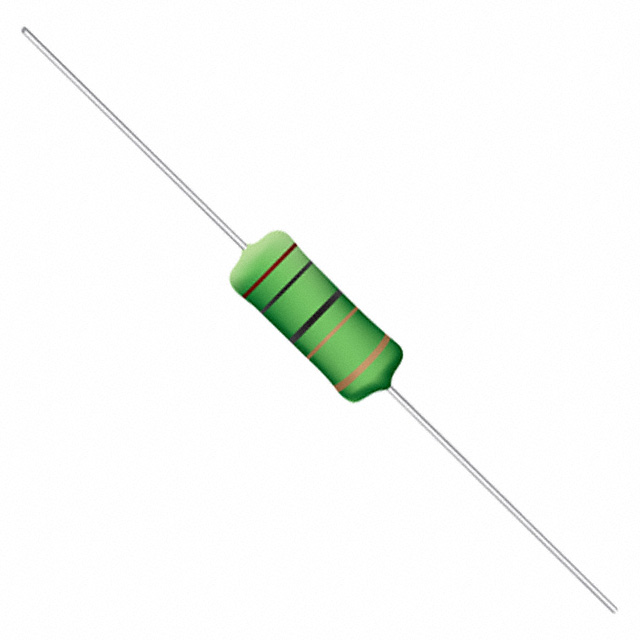

FW30A Series

Catalog

RESFUS AX WW 68R 3W 5% /AMMO PACK

Part	Composition	Resistance	Package / Case	Temperature Coefficient	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Power (Watts)	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Number of Terminations [custom]	Features
Bourns Inc. FW30A68R0JA	Wirewound	68 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A47R0JA	Wirewound	47 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A15R0JA	Wirewound	15 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A1000JA	Wirewound	100 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A22R0JA	Wirewound	22 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A8R20JA	Wirewound		Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A33R0JA	Wirewound	33 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A5R60JA	Wirewound	5.6 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
Bourns Inc. FW30A4R70JA	Wirewound	4.7 Ohms	Axial	200 ppm/°C	5 %	155 C	-55 C	Axial	3 W	0.63 in	0.256 in	6.5 mm	16 mm	2	Fusible Safety
