SFV31R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

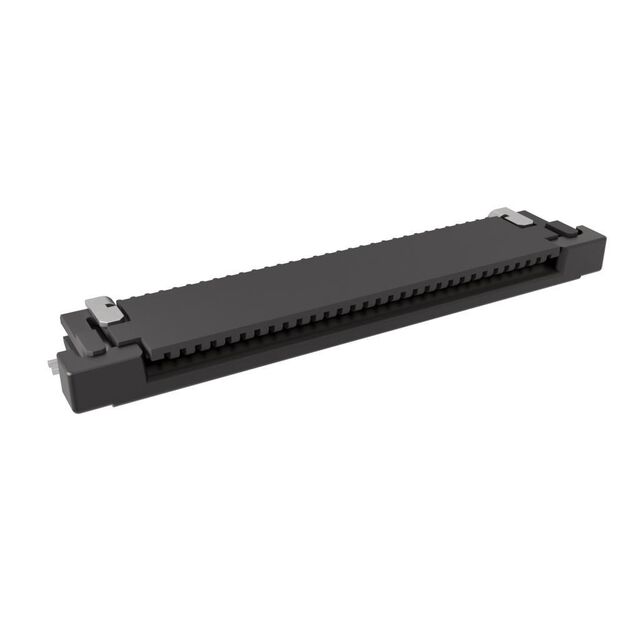

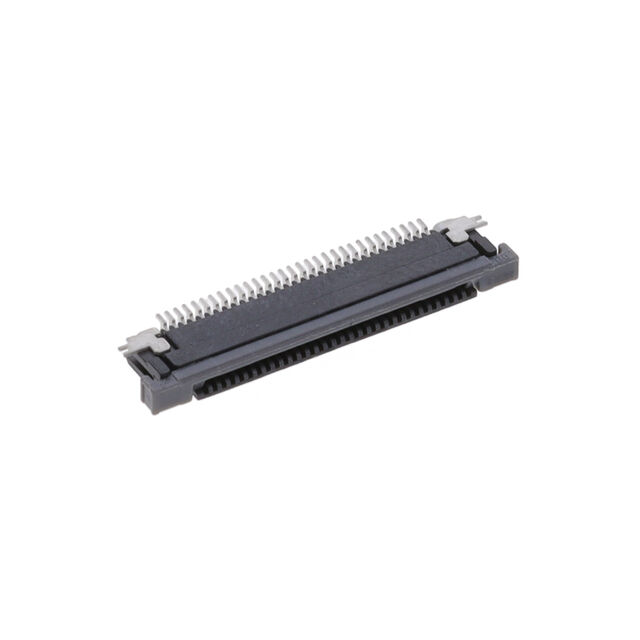

CONN FFC FPC TOP 31POS 0.5MM R/A
| Part | Actuator Color | Current Rating (Amps) | Housing Color | Mating Cycles | FFC, FCB Thickness | Actuator Material | Housing Material | Material Flammability Rating | Flat Flex Type | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Connector/Contact Type | Contact Finish | Termination | Height Above Board [z] | Height Above Board [z] | Locking Feature | Contact Material | Pitch | Pitch | Mounting Type | Cable End Type | Voltage Rating | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 0.5 A | Black | 20 | 0.3 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | FFC FPC | 31 | -55 C | 105 ░C | Solder Retention Zero Insertion Force (ZIF) | Contacts Top | Tin | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Tapered | 50 V | ||
 Amphenol ICC (FCI) | Brown | 0.5 A | Black | 20 | 0.33 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | FPC | 31 | -55 C | 105 ░C | Contacts Bottom | Tin | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Notched | 50 V | |||
 Amphenol ICC (FCI) | Black | 0.5 A | Black | 20 | 0.3 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | FFC FPC | 31 | -55 C | 105 ░C | Solder Retention Zero Insertion Force (ZIF) | Contacts Bottom | Tin | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Tapered | 50 V | ||
 Amphenol ICC (FCI) | Black | 0.5 A | Black | 20 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | FPC | 31 | -55 C | 105 ░C | Contacts Top | Tin | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Straight Tapered | 50 V | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Black | 0.5 A | Black | 20 | 0.3 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | FFC FPC | 31 | -55 C | 105 ░C | Solder Retention Zero Insertion Force (ZIF) | Contacts Top | Gold | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Tapered | 50 V | ||
 Amphenol ICC (FCI) | Beige | 0.5 A | Black | 20 | 0.3 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | FPC | 31 | -55 C | 105 ░C | Contacts Bottom | Gold | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Tapered | 50 V | |||
 Amphenol ICC (FCI) | Brown | 0.5 A | Black | 20 | Polyphenylene Sulfide (PPS) Glass Filled | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | FFC FPC | 31 | -55 C | 105 ░C | Solder Retention Zero Insertion Force (ZIF) | Contacts Bottom | Tin Alloy | Solder | 0.071 in | 1.8 mm | Slide Lock | Phosphor Bronze | 0.02 " | 0.5 mm | Right Angle Surface Mount | Straight Tapered | 50 V | 0.3 mm | 0.33 mm |
