BFB1624 Series

Catalog

FAN BLOWER 159X40MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Width [x]	Weight [custom]	Weight [custom]	Fan Type	Bearing Type	Termination	RPM	Noise	Static Pressure	Static Pressure	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Voltage - Rated

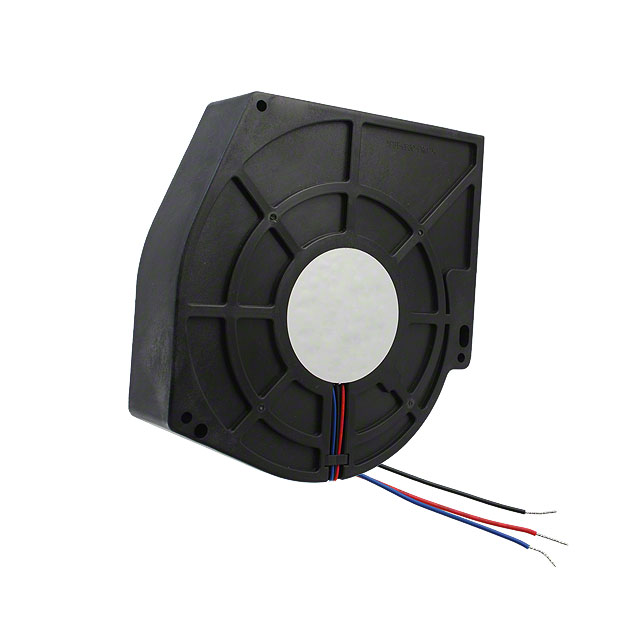

Delta Electronics BFB1624H-F00	0.74 A	Plastic	14 VDC	26.4 VDC	Plastic	40 °C 50000 Hrs	40 mm	1.3 lbs	589.7 g	Blower	Ball	3 Wire Leads	2200 RPM	56.5 dB	1.387 in H2O	345.5 Pa	17.16 W	-10 °C	60 °C	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)	165 mm	Rectangular/Rounded	159 mm	1.73 m³/min	61.8 CFM	24 VDC
Delta Electronics BFB1624H	0.74 A	Plastic	14 VDC	26.4 VDC	Plastic	40 °C 50000 Hrs	40 mm	1.3 lbs	589.7 g	Blower	Ball	2 Wire Leads	2200 RPM	56.5 dB	1.387 in H2O	345.5 Pa	17.16 W	-10 °C	60 °C	CE CSA UL VDE		165 mm	Rectangular/Rounded	159 mm	1.73 m³/min	61.8 CFM	24 VDC
