Han Ex Series

Manufacturer: HARTING

Catalog

HEAVY DUTY POWER CONNECTORS 6B EX BLKHD HOUSING SINGLE LEVER, METAL

Part	Housing Material	Housing Finish	Housing Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Lock Location	Style	Thread Size	Size	Color	Contact Type	Termination Style	Voltage Rating	Current Rating (Amps)	Number of Positions	Gender	Contact Material	Contact Finish	Material Flammability Rating	Contents

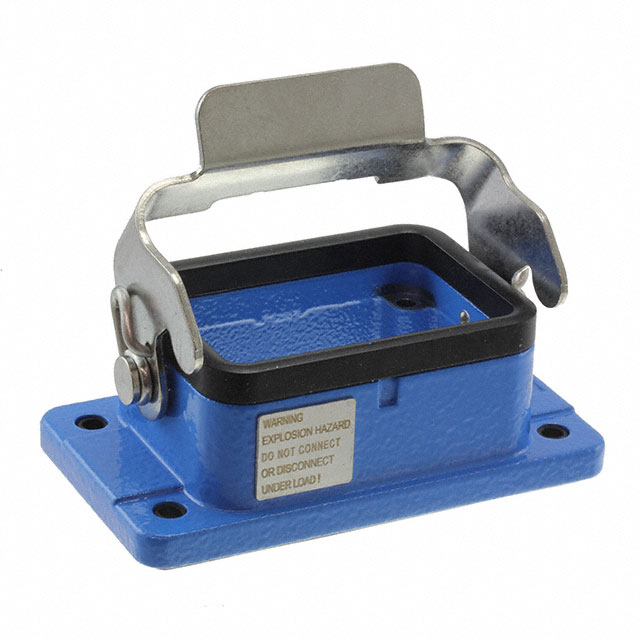

HARTING 09365061301	Zinc Die Cast	Powder Coated	Blue	Base - Panel Mount	-20 ░C	40 °C	6B	48.4 mm	85 mm	31.3 mm	3.346 in	1.232 in	1.906 "	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Bottom Entry

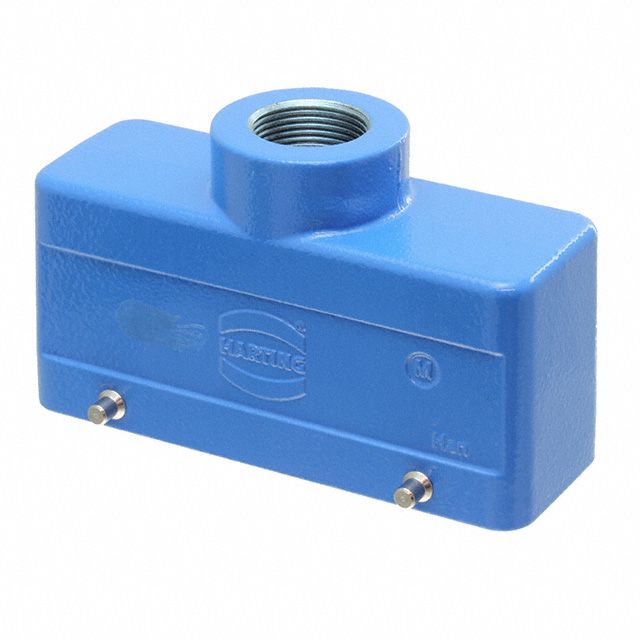

HARTING 19365241421	Zinc Die Cast	Powder Coated	Blue	Hood	-20 ░C	40 °C								IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Top Entry	M25	24 B
HARTING 09365062702	Polycarbonate (PC)			Insert without Contacts	-20 ░C	40 °C	6B												Gray	Han® E	Crimp	90 V	16 A	6+Ground	Female

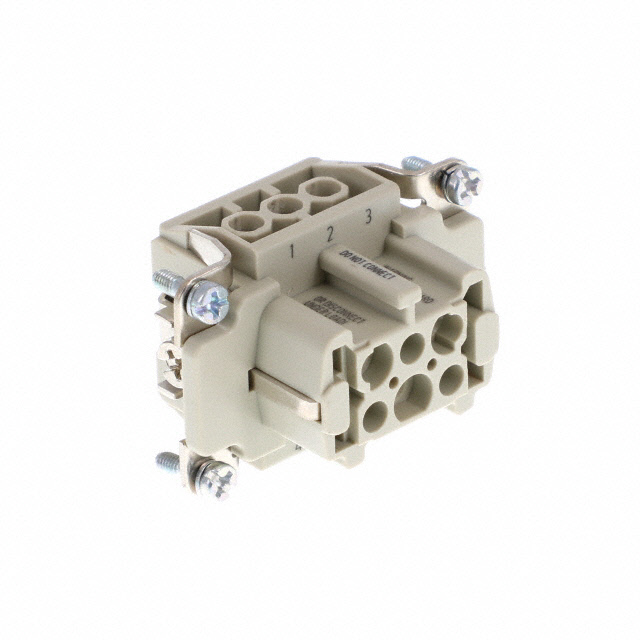

HARTING 09365062701	Polycarbonate (PC)			Insert	-20 ░C	40 °C	6B												Gray		Screw	90 V	16 A	6+Ground	Female	Copper Alloy	Silver	UL94 V-0
HARTING 19365161522	Zinc Die Cast	Powder Coated	Blue	Hood	-20 ░C	40 °C		1.693 " 43 mm	3.681 in 93.5 mm	2.461 in 62.5 mm				IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Side Entry	M32	16 B

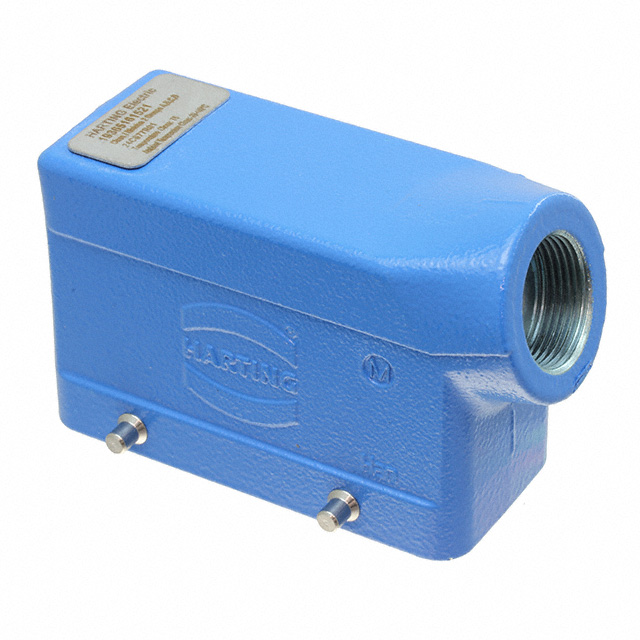

HARTING 19365161521	Zinc Die Cast	Powder Coated	Blue	Hood	-20 ░C	40 °C		1.693 " 43 mm	3.681 in 93.5 mm	2.461 in 62.5 mm				IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	Side Entry	M25	16 B
HARTING 10361040003																Bottom-Base Top-Hood	M20	3 A			Push In with Lock								Cable and Panel Connector Assembly
