VMD1A60B Series

Catalog

SWITCH ROCKER DPDT 20A 12V

Part	Electrical Life	Mechanical Life	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Termination Style	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Mounting Type	Circuit	Approval Agency
Carling Technologies VMD1A60B-CMY00-000	100000 Cycles	100000 Cycles	IP66 IP68	36.83 mm	21.08 mm	Convex (Reverse V) - Illuminated	Incandescent Red	85 °C	-40 C	12 VAC/DC	Quick Connect - 0.250" (6.3mm)	No Marking	White	12 V	Mom-On-Off	20 A	Panel Mount Snap-In	DPDT	CSA UL VDE

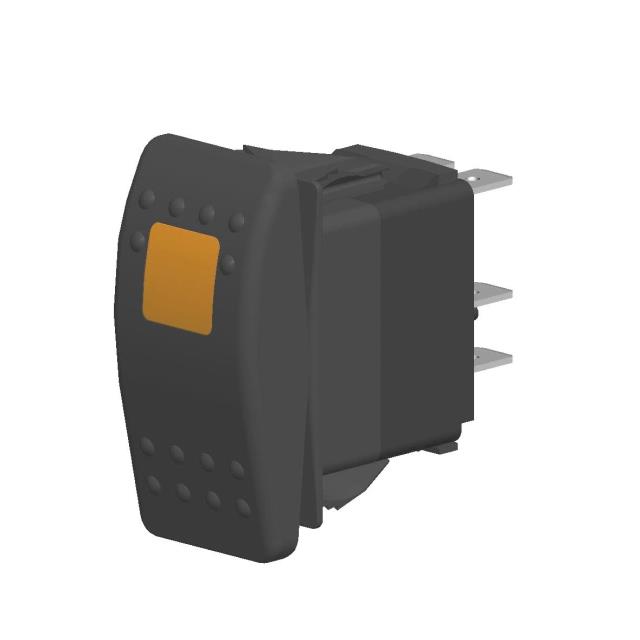

Carling Technologies VMD1A60B-AEC00-000	100000 Cycles	100000 Cycles	IP66 IP68	36.83 mm	21.08 mm	Convex (Reverse V) - Illuminated	Amber Incandescent	85 °C	-40 C	12 VAC/DC	Quick Connect - 0.250" (6.3mm)	No Marking	Black	12 V	Mom-On-Off	20 A	Panel Mount Snap-In	DPDT	CSA UL VDE
Carling Technologies VMD1A60B-AKC00-000	100000 Cycles	100000 Cycles	IP66 IP68	36.83 mm	21.08 mm	Convex (Reverse V) - Illuminated	Green Incandescent	85 °C	-40 C	12 VAC/DC	Quick Connect - 0.250" (6.3mm)	No Marking	Black	12 V	Mom-On-Off	20 A	Panel Mount Snap-In	DPDT	CSA UL VDE
Carling Technologies VMD1A60B-00000-000	100000 Cycles	100000 Cycles	IP66 IP68	36.83 mm	21.08 mm	Actuator Arm Cap Required Illuminated	Incandescent	85 °C	-40 C	12 VAC/DC	Quick Connect - 0.250" (6.3mm)	Varies by Cap		12 V	Mom-On-Off	20 A	Panel Mount Snap-In	DPDT	CSA UL VDE
