IRS-Q48 Series

Isolated DC/DC Converters - Through Hole 12V 4.5A, 18-75VIN

Manufacturer: Murata Power Solutions Inc.

Catalog

Isolated DC/DC Converters - Through Hole 12V 4.5A, 18-75VIN

Catalog

Isolated DC/DC Converters - Through Hole 12V 4.5A, 18-75VIN

Part	Efficiency	Supplier Device Package	Voltage - Output 1	Type	Features	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Mounting Type	Power (Watts)	Control Features
Murata Power Solutions Inc. IRS-12/4.5-Q48PF-C	89 %	Sixteenth Brick	12 V	Isolated Module	OCP OTP OVP SCP UVLO	1/16 Brick 9-DIP Module	4.55 A	18 V	ITE (Commercial) Railway	1.44 "	38.1 mm	1.5 in	0.5 in	36.5 mm	12.7 mm	75 V	1	85 °C	-40 °C	2250 VDC	Through Hole	54 W
Murata Power Solutions Inc. IRS-12/4.5-Q48P-C	89 %	Sixteenth Brick	12 V	Isolated Module	OCP OTP OVP SCP UVLO	1/16 Brick 9-DIP Module	4.55 A	18 V	ITE (Commercial) Railway	1.44 "	26.3 mm	1.04 in	0.5 in	36.5 mm	12.7 mm	75 V	1	85 °C	-40 °C	2250 VDC	Through Hole	54 W
Murata Power Solutions Inc. IRS-12/4.5-Q48NF-C	89 %	Sixteenth Brick	12 V	Isolated Module	OCP OTP OVP SCP UVLO	1/16 Brick 9-DIP Module	4.55 A	18 V	ITE (Commercial) Railway	1.44 "	38.1 mm	1.5 in	0.5 in	36.5 mm	12.7 mm	75 V	1	85 °C	-40 °C	2250 VDC	Through Hole	54 W
Murata Power Solutions Inc. IRS-12/4.5-Q12PF-C	91 %	Sixteenth Brick	12 V	Isolated Module	OTP OVP Remote On/Off SCP	Sixteenth Brick	4.5 A	9 V	ITE (Commercial)	1.44 "	38.1 mm	1.5 in	0.5 in	36.5 mm	12.7 mm	36 V	1	85 °C	-40 °C		Through Hole	54 W	Active High Enable
Murata Power Solutions Inc. IRS-12/4.5-Q12NF-C	91 %	Sixteenth Brick	12 V	Isolated Module	OTP OVP Remote On/Off SCP	Sixteenth Brick	4.5 A	9 V	ITE (Commercial)	1.44 "	38.1 mm	1.5 in	0.5 in	36.5 mm	12.7 mm	36 V	1	85 °C	-40 °C		Through Hole	54 W	Active Low Enable
Murata Power Solutions Inc. IRS-12/4.5-Q12P-C	91 %	Sixteenth Brick	12 V	Isolated Module	OTP OVP Remote On/Off SCP	Sixteenth Brick	4.5 A	9 V	ITE (Commercial)	1.44 "	26.3 mm	1.04 in	0.5 in	36.5 mm	12.7 mm	36 V	1	85 °C	-40 °C		Through Hole	54 W	Active High Enable

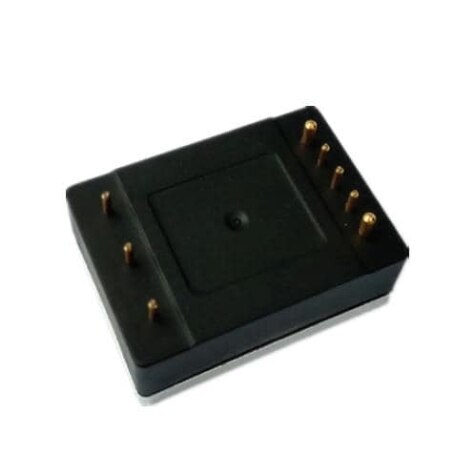

Murata Power Solutions Inc. IRS-12/4.5-Q48N-C	89 %	Sixteenth Brick	12 V	Isolated Module	OCP OTP OVP SCP UVLO	1/16 Brick 9-DIP Module	4.55 A	18 V	ITE (Commercial) Railway	1.44 "	26.3 mm	1.04 in	0.5 in	36.5 mm	12.7 mm	75 V	1	85 °C	-40 °C	2250 VDC	Through Hole	54 W
