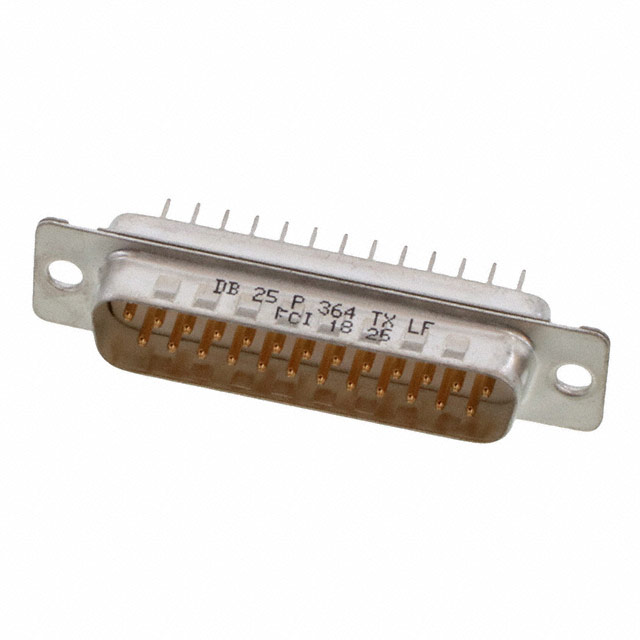

DB25P364 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
DSUB SIGNAL STB 25PIN
| Part | Contact Type | Dielectric Material | Contact Finish Thickness | Shell Material, Finish | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Current Rating (Amps) | Flange Feature | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Contact Finish | Connector Style | Material Flammability Rating | Voltage Rating | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Signal | Thermoplastic | Flash | Steel Zinc Plated | 2 | -55 °C | 125 °C | Male Pins Plug | 5 A | Housing/Shell (Unthreaded) | Solder | B DB | 3 | Through Hole | Gold | D-Sub | ||||
 Amphenol ICC (FCI) | Signal | Thermoplastic | Flash | 2 | -55 °C | 125 °C | Male Pins Plug | 5 A | Housing/Shell (Unthreaded) | Solder | B DB | 3 | Through Hole | Gold GXT™ | D-Sub | UL94 V-0 | 300 VDC | Copper Alloy | Grounding Indents |
