3119-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Length - Overall [x] | Length - Overall [x] | Contact Finish | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Board Thickness | Board Thickness | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter | Flange Diameter | Contact Material | Termination | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange | Length - Above Flange [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

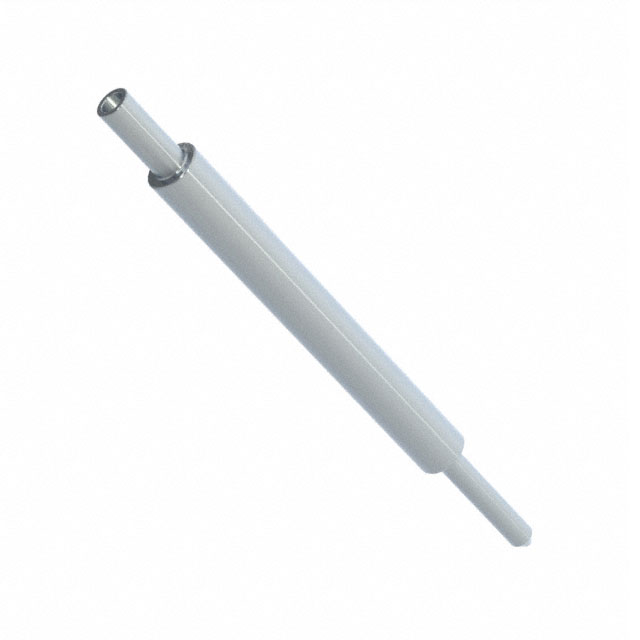

 Mill-Max Manufacturing Corp. | 16.56 mm | 0.652 " | Tin | Non-Insulated | 0.64 mm | 0.025 in | 1.57 mm | 0.062 " | 200 Áin | 5.08 Ám | Through Hole | 2.08 mm | 0.082 " | 0.05 in | 1.27 mm | Brass Alloy | Swage | Single End | 0.89 mm | 0.035 in | 3.81 mm | 0.15 in | PC Pin |

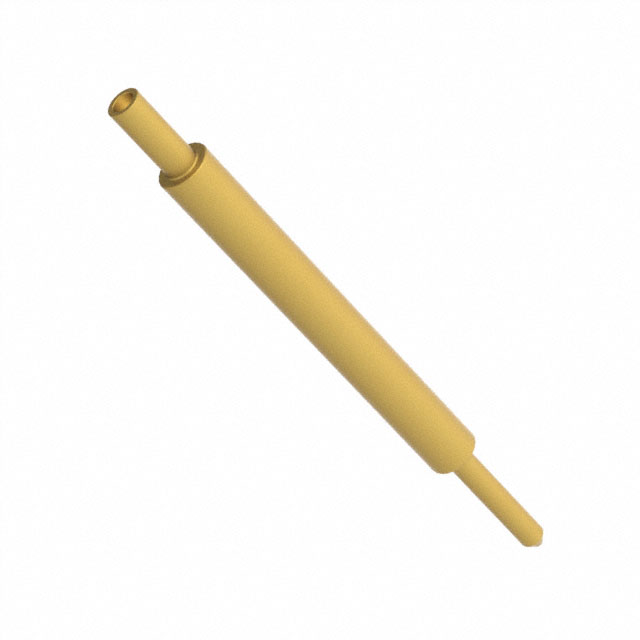

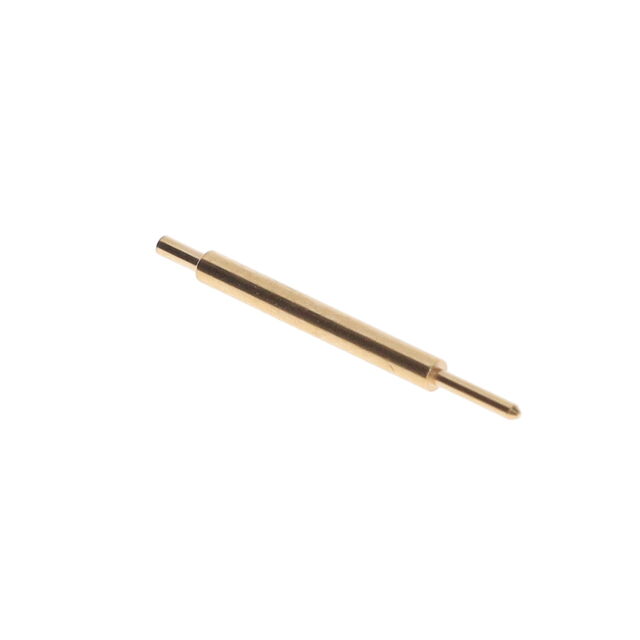

 Mill-Max Manufacturing Corp. | 16.56 mm | 0.652 " | Gold | Non-Insulated | 0.64 mm | 0.025 in | 1.57 mm | 0.062 " | 20 µin | 0.51 µm | Through Hole | 2.08 mm | 0.082 " | 0.05 in | 1.27 mm | Brass Alloy | Swage | Single End | 0.89 mm | 0.035 in | 3.81 mm | 0.15 in | PC Pin |
 Mill-Max Manufacturing Corp. | 16.56 mm | 0.652 " | Gold | Non-Insulated | 0.64 mm | 0.025 in | 1.57 mm | 0.062 " | 50 µin | 1.27 µm | Through Hole | 2.08 mm | 0.082 " | 0.05 in | 1.27 mm | Brass Alloy | Swage | Single End | 0.89 mm | 0.035 in | 3.81 mm | 0.15 in | PC Pin |
 Mill-Max Manufacturing Corp. | 16.56 mm | 0.652 " | Gold | Non-Insulated | 0.64 mm | 0.025 in | 1.57 mm | 0.062 " | 10 Áin | 0.25 Ám | Through Hole | 2.08 mm | 0.082 " | 0.05 in | 1.27 mm | Brass Alloy | Swage | Single End | 0.89 mm | 0.035 in | 3.81 mm | 0.15 in | PC Pin |
