TS5MP646 Series
Manufacturer: Texas Instruments
Beta
⌘K
4.5-V, 2:1 (SPDT), 10-CHANNEL MIPI SWITCH
| Part | Voltage - Supply, Single (V+) [Min] | Voltage - Supply, Single (V+) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Multiplexer/Demultiplexer Circuit | Supplier Device Package | -3db Bandwidth | Number of Circuits | Channel-to-Channel Matching (ΔRon) | Mounting Type | Current - Leakage (IS(off)) (Max) [Max] | Crosstalk | On-State Resistance (Max) [Max] | Switch Circuit | Channel Capacitance (CS(off), CD(off)) | Supplied Contents | Utilized IC / Part | Function | Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 1.65 V | 5.5 V | 85 °C | -40 C | 2:1 | 36-DSBGA | 3 GHz | 10 | 100 mOhm | Surface Mount | 500 nA | -40 dB | 9 Ohm | SPDT | 1.5 pF | |||||
 Texas Instruments | 1.65 V | 5.5 V | 85 °C | -40 C | 2:1 | 36-DSBGA | 3 GHz | 10 | 100 mOhm | Surface Mount | 500 nA | -40 dB | 9 Ohm | SPDT | 1.5 pF | |||||

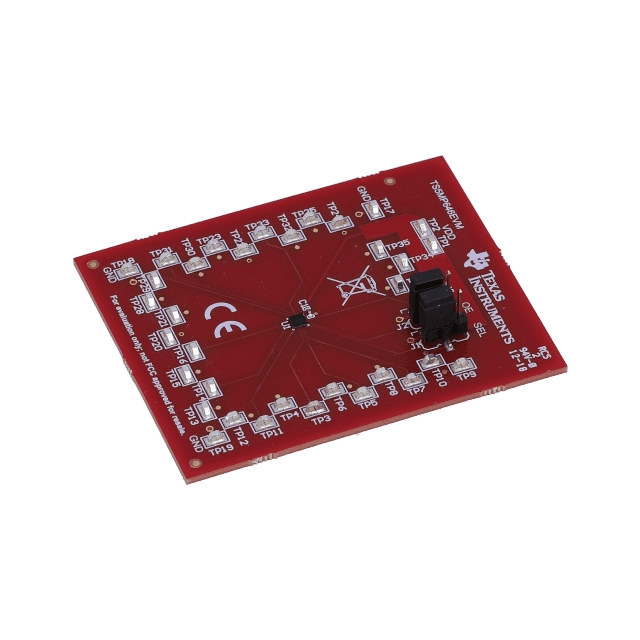

 Texas Instruments | Board(s) | TS5MP646 | Multiplexer | Board(s) | Interface |
