315-072 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, PANEL MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Flange Feature	Color	Pitch	Pitch	Contact Type	Number of Positions/Bay/Row	Card Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Read Out	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 315-072-500-268	Polyester Thermoplastic	2	72	4-40 Flush Mount Threaded Insert Top Opening	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	-40 C	105 ░C	Gold	Solder Eyelet(s)	Dual	2	0.25 Ám	10 Áin	Female
EDAC Inc. 315-072-500-201	Polyester Thermoplastic	2	72		Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Free Hanging (In-Line)	-40 C	105 ░C	Gold	Solder Eyelet(s)	Dual	2	0.25 Ám	10 Áin	Female
EDAC Inc. 315-072-555-204	Polyester Thermoplastic	2	72	Flush Mount Top Opening Unthreaded	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	Gold	Solder	Dual	2	0.25 Ám	10 Áin	Female	0.156 "	3.96 mm	Card Extender

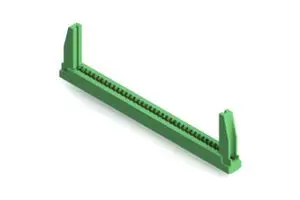

EDAC Inc. 315-072-521-278	Polyester Thermoplastic	2	72	4-40 Flush Mount Threaded Insert Top Opening	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	-40 C	105 ░C	Gold	Solder	Dual	2	0.25 Ám	10 Áin	Female
EDAC Inc. 315-072-556-208	Polyester Thermoplastic	2	72	4-40 Flush Mount Threaded Insert Top Opening	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	Gold	Solder	Dual	2	0.25 Ám	10 Áin	Female			Card Extender
EDAC Inc. 315-072-556-268	Polyester Thermoplastic	2	72	4-40 Flush Mount Threaded Insert Top Opening	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	Gold	Solder	Dual	2	0.25 Ám	10 Áin	Female			Card Extender Card Guides
EDAC Inc. 315-072-520-258	Polyester Thermoplastic	2	72	4-40 Flush Mount Threaded Insert Top Opening	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	-40 C	105 ░C	Gold	Solder	Dual	2	0.25 Ám	10 Áin	Female
EDAC Inc. 315-072-500-258	Polyester Thermoplastic	2	72	4-40 Flush Mount Threaded Insert Top Opening	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	-40 C	105 ░C	Gold	Solder Eyelet(s)	Dual	2	0.25 Ám	10 Áin	Female

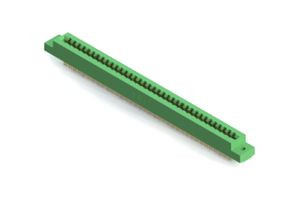

EDAC Inc. 315-072-500-202	Polyester Thermoplastic	2	72	Flush Mount Top Opening Unthreaded	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	-40 C	105 ░C	Gold	Solder Eyelet(s)	Dual	2	0.25 Ám	10 Áin	Female	0.128 "	3.25 mm
EDAC Inc. 315-072-521-204	Polyester Thermoplastic	2	72	Flush Mount Top Opening Unthreaded	Green	3.96 mm	0.156 in	Semi Bellows	36	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	-40 C	105 ░C	Gold	Solder	Dual	2	0.25 Ám	10 Áin	Female	0.156 "	3.96 mm
