EMI4183MU Series

EMI Common Mode Filter with ESD Protection

Catalog

EMI Common Mode Filter with ESD Protection

Part	Package / Case	Current Rating (Max) [Max]	Mounting Type	Height (Max)	Height (Max) [Max]	Number of Lines	Features	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]

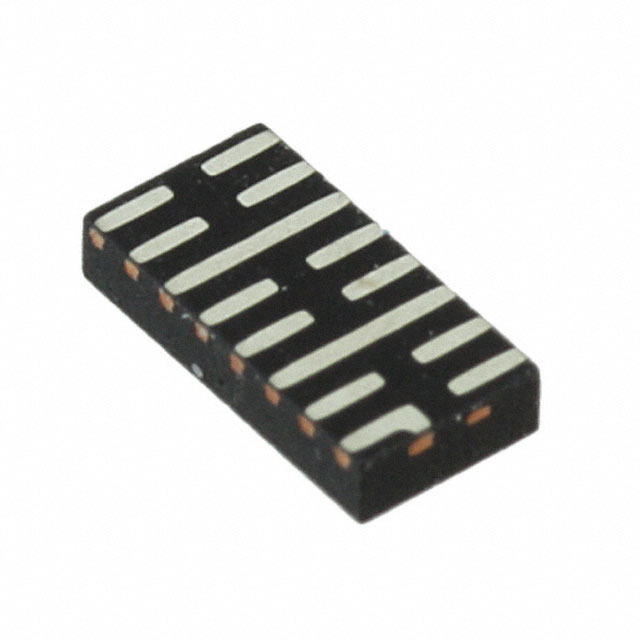

ON Semiconductor EMI4183MTTAG	16-WFDFN Exposed Pad	100 mA	Surface Mount	0.8 mm	0.032 "	6	TVS Diode ESD Protection	8 Ohm	0.157 "	4 mm	2 mm	0.079 in	85 °C	-40 °C
ON Semiconductor EMI4183MUTAG	16-UFDFN	100 mA	Surface Mount	0.55 mm	0.022 in	6	TVS Diode ESD Protection	8 Ohm	0.157 "	4 mm	2 mm	0.079 in	85 °C	-40 °C

Catalog

EMI Common Mode Filter with ESD Protection

Key Features

• Highly Integrated Common Mode Filter (CMF) with ESD Protectionprovides protection and EMI reduction for systems using High SpeedSerial Data Lines with cost and space savings over discrete solutions

• Large Differential Mode Bandwidth with Cutoff Frequency > 2 GHz

• High Common Mode Stop Band Attenuation: >25 dB at 700 MHz,>30 dB at 800 MHz

• Provides ESD Protection to IEC61000-4-2 Level 4, 15 kV Contact Discharge

• Low Channel Input Capacitance Provides Superior Impedance Matching

Description

The EMI4183MU is an integrated common mode filter providing both ESD protection and EMI filtering for high speed digital serial interfaces such as MIPI D-PHY. The EMI4183MU provides protection for three differential data line pairs in a small RoHS-compliant UDFN16 package.
