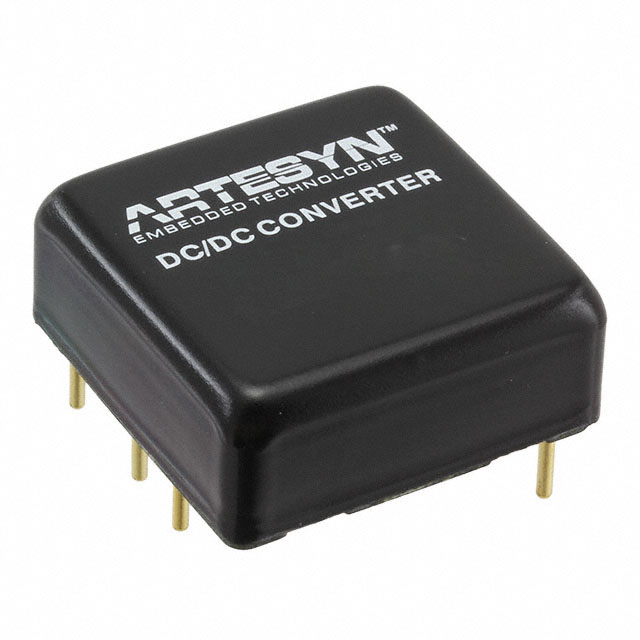

AXA000 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, 4:1, 10 W, 2 OUTPUT, 12 V, 410 MA

Part	Type	Voltage - Output 1	Number of Outputs	Applications	Package / Case	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Voltage - Output 2	Features	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Current - Output (Max)	Current - Output (Max) [Max]

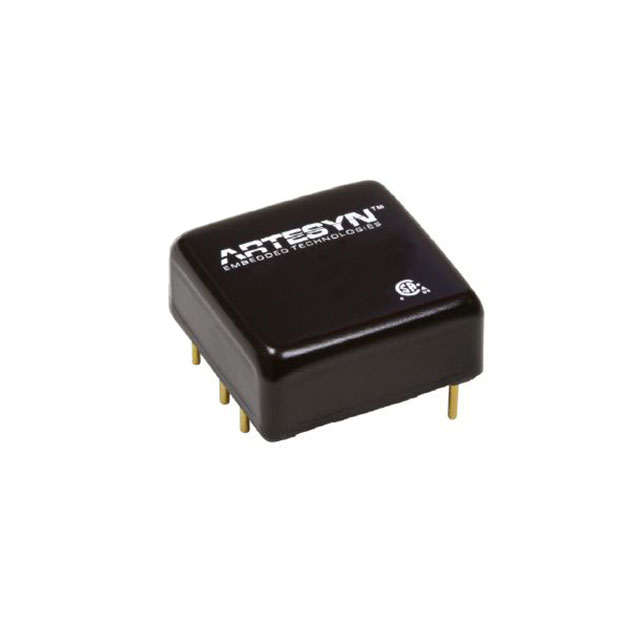

ARTESYN / Advanced Energy AXA000BB18-L	Isolated Module	12 V	2	ITE (Commercial)	6-DIP Module	9 V	85 °C	-40 C	10 W	36 V	Through Hole	410 mA	-12 V	Remote On/Off SCP	1.5 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	86 %
ARTESYN / Advanced Energy AXA000BB36-L	Isolated Module	12 V	2	ITE (Commercial)	6-DIP Module	18 V	85 °C	-40 C	10 W	75 V	Through Hole	410 mA	-12 V	Remote On/Off SCP	1.5 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	86 %
ARTESYN / Advanced Energy AXA000CC36-L	Isolated Module	15 V	2	ITE (Commercial)	6-DIP Module	18 V	85 °C	-40 C	10 W	75 V	Through Hole	330 mA	-15 V	Remote On/Off SCP	1.5 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	87 %	330 mA

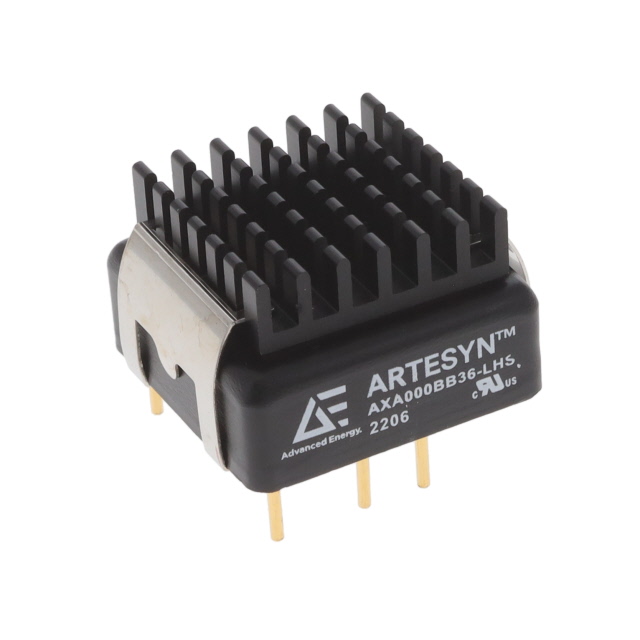

ARTESYN / Advanced Energy AXA000BB36-LHS	Isolated Module	12 V	2	ITE (Commercial)	6-DIP Module	18 V	85 °C	-40 C	9.8 W	75 V	Through Hole	410 mA	-12 V		1.5 kV	1 "	1.22 in	31 mm	17.5 mm	0.69 in	25.4 mm	86 %
ARTESYN / Advanced Energy AXA000H18-L	Isolated Module	24 V	1	ITE (Commercial)	6-DIP Module 5 Leads	9 V	85 °C	-40 C	10 W	36 V	Through Hole			Remote On/Off SCP	1.5 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	86 %		410 mA
ARTESYN / Advanced Energy AXA000CC18-L	Isolated Module	15 V	2	ITE (Commercial)	6-DIP Module	9 V	85 °C	-40 C	10 W	36 V	Through Hole	330 mA	-15 V	Remote On/Off SCP	1.5 kV	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	87 %	330 mA
