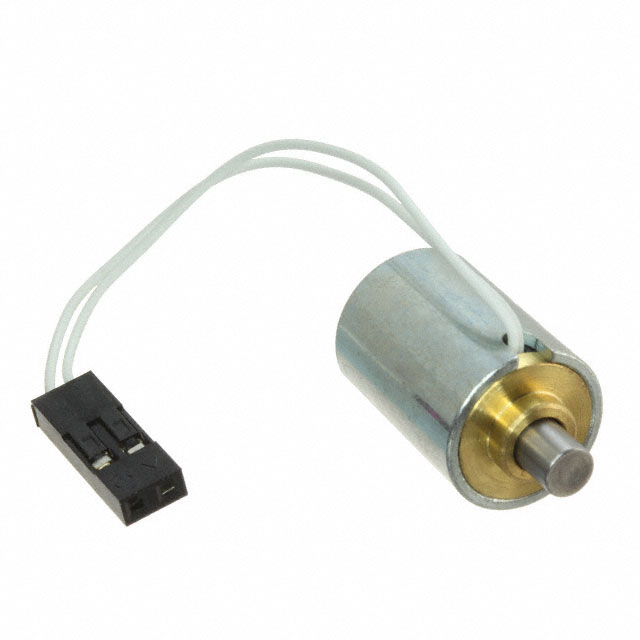

DSTL-0418 Series
Manufacturer: Delta Electronics
Beta
⌘K
SOLENOID PULL CONTINUOUS 18V
| Part | Weight | Weight | Technology | Shaft Detail | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Stroke Length [x] | Stroke Length [x] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Power (Watts) | DC Resistance (DCR) | Mounting Type | Type | Voltage - Rated | Duty Cycle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 0.029 lb | 13.15 g | Electromechanical | Round | 17.5 mm | 0.689 in | 0.504 " | 12.8 mm | 0.125 in | 3.18 mm | 3.97 mm | 0.156 in | 1.4 W | 233 Ohm | Chassis Mount | Closed Frame (Pull) Tubular | 18 VDC | Continuous |
Delta Electronics | 0.029 lb | 13.15 g | Electromechanical | Round | 17.5 mm | 0.689 in | 0.504 " | 12.8 mm | 0.125 in | 3.18 mm | 3.97 mm | 0.156 in | 1.3 W | 110 Ohm | Chassis Mount | Closed Frame (Pull) Tubular | 12 VDC | Continuous |
Delta Electronics | 0.029 lb | 13.15 g | Electromechanical | Round | 17.5 mm | 0.689 in | 0.504 " | 12.8 mm | 0.125 in | 3.18 mm | 3.97 mm | 0.156 in | 1.4 W | 407 Ohm | Chassis Mount | Closed Frame (Pull) Tubular | 24 VDC | Continuous |
