CSD87381P Series

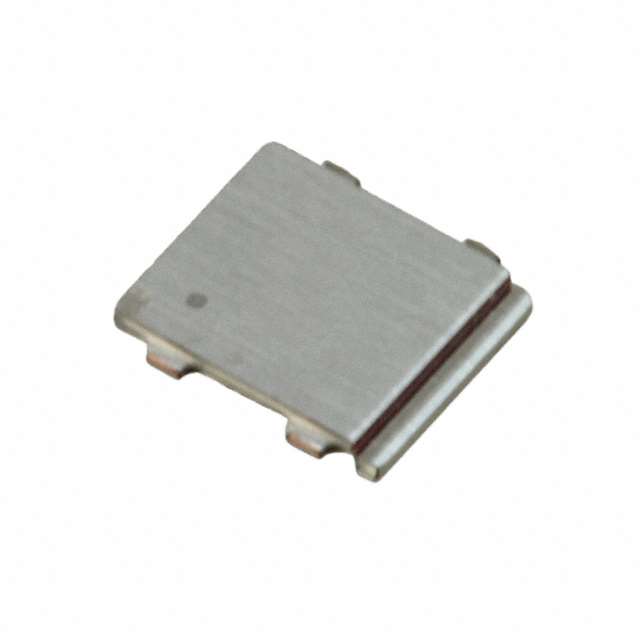

30-V, N channel synchronous buck NexFET™ power MOSFET, 3 mm x 2.5 mm LGA, 15 A

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, 3 mm x 2.5 mm LGA, 15 A

Part	Input Capacitance (Ciss) (Max) @ Vds	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	FET Feature	Mounting Type	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Package / Case	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Configuration
Texas Instruments CSD87381P	564 pF	MOSFET (Metal Oxide)	-55 °C	150 °C	15 A	Logic Level Gate	Surface Mount	5-PTAB (3x2.5)	5 nC	16.3 mOhm	4 W	5-LGA	30 V	1.9 V	2 N-Channel (Half Bridge)

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, 3 mm x 2.5 mm LGA, 15 A

Key Features

• Half-Bridge Power Block90% System Efficiency at 10 AUp to 15 A OperationHigh Density – 3 × 2.5 mm LGA FootprintDouble Side Cooling CapabilityUltra-Low Profile – 0.48 mm MaxOptimized for 5 V Gate DriveLow Switching LossesLow Inductance PackageRoHS CompliantHalogen FreePb FreeHalf-Bridge Power Block90% System Efficiency at 10 AUp to 15 A OperationHigh Density – 3 × 2.5 mm LGA FootprintDouble Side Cooling CapabilityUltra-Low Profile – 0.48 mm MaxOptimized for 5 V Gate DriveLow Switching LossesLow Inductance PackageRoHS CompliantHalogen FreePb Free

Description

The CSD87381P NexFET™ power block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 3 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver. The CSD87381P NexFET™ power block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 3 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver.
