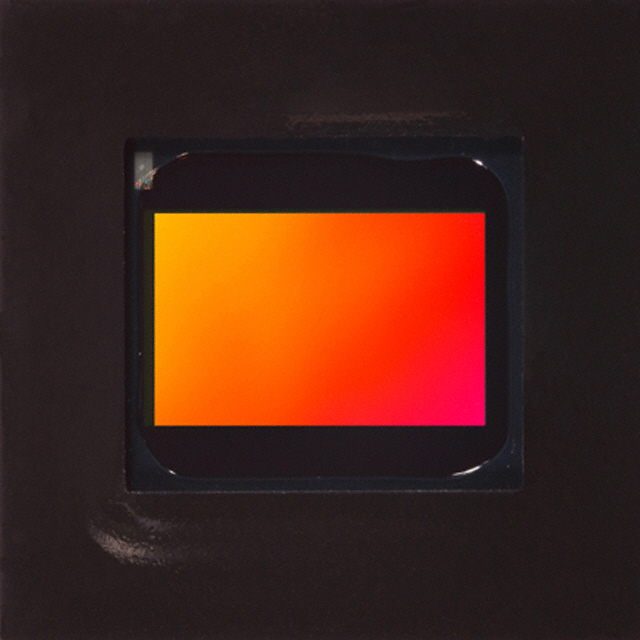

MT9V022 Series

CMOS Image Sensor, Digital, Global Shutter, VGA, 1/3"

Catalog

CMOS Image Sensor, Digital, Global Shutter, VGA, 1/3"

Part	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Frames per Second	Package / Case	Pixel Size [x]	Pixel Size [y]	Operating Temperature [Max]	Operating Temperature [Min]	Active Pixel Array [y]	Active Pixel Array [x]	Type
ON Semiconductor MT9V022IA7ATC-DR1	52-IBGA (9x9)	3.6 V	3 V	60	52-LBGA	6 µm	6 µm	85 °C	-40 °C	480	752	CMOS with Processor
ON Semiconductor MT9V022IA7ATM-TP	52-IBGA (9x9)	3.6 V	3 V	60	52-LBGA	6 µm	6 µm	85 °C	-40 °C	480	752	CMOS with Processor
ON Semiconductor MT9V022IA7ATC-DP	52-IBGA (9x9)	3.6 V	3 V	60	52-LBGA	6 µm	6 µm	85 °C	-40 °C	480	752	CMOS with Processor
ON Semiconductor MT9V022IA7ATM-DR	52-IBGA (9x9)	3.6 V	3 V	60	52-LBGA	6 µm	6 µm	85 °C	-40 °C	480	752	CMOS with Processor

Catalog

CMOS Image Sensor, Digital, Global Shutter, VGA, 1/3"

Key Features

• High Dynamic Range

Description

The MT9V022 6um global shutter HDR pixel technology uniquely allows automotive cameras to "freeze" fast moving objects, and capture all scene detail under extreme lighting conditions. The MT9V022 enhanced NIR pixel process provides excellent image quality in very low-light night conditions.
