CLU036 Series

Catalog

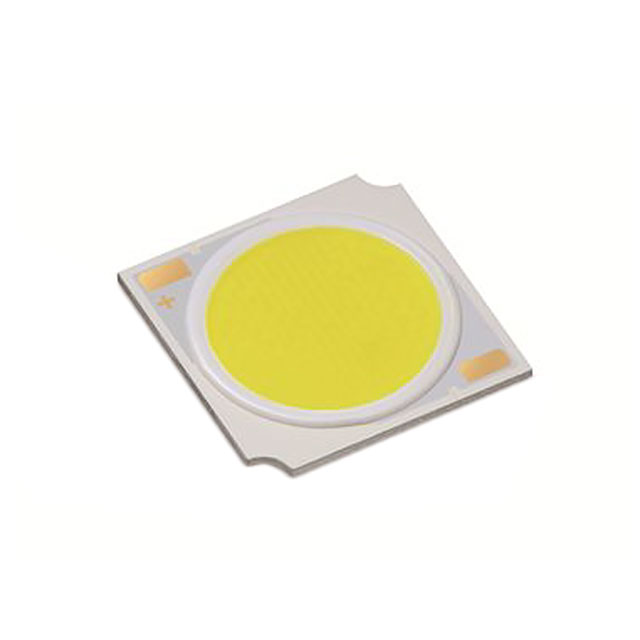

LED COB CLU036 WARM WHT SQ 3500K

Part	Configuration	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Color	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Type	Current - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Height [z]	CCT (K)	CCT (K)	Temperature - Test
Citizen Finedevice Co Ltd CLU036-1205C1-353M2G2	Square	14.5 mm	80	34.6 V	Warm White	143 lm/W	19 mm	19 mm	Flat	Chip On Board (COB)	450 mA	1.15 A	2228 lm	1.4 mm	3500 K	3-Step MacAdam Ellipse	85 °C
Citizen Finedevice Co Ltd CLU036-1205C1-50AL7G4	Square	14.5 mm	70	34.6 V	Cool White	159 lm/W	19 mm	19 mm	Flat	Chip On Board (COB)	450 mA	1.15 A	2471 lm	1.4 mm	5000 K	3-Step MacAdam Ellipse	85 °C
Citizen Finedevice Co Ltd CLU036-1205C1-303H5G3	Square	14.5 mm	90	34.6 V	Warm White	116 lm/W	19 mm	19 mm	Flat	Chip On Board (COB)	450 mA	1.15 A	1811 lm	1.4 mm	3000 K	3-Step MacAdam Ellipse	85 °C
Citizen Finedevice Co Ltd CLU036-1206C1-403M2G2	Square	14.5 mm	80	34.6 V	Neutral White	143 lm/W	19 mm	19 mm	Flat	Chip On Board (COB)	540 mA	1.38 A	2677 lm	1.4 mm	4000 K	3-Step MacAdam Ellipse	85 °C
Citizen Finedevice Co Ltd CLU036-1208C1-273M2G2	Square	14.5 mm	80	34.6 V	Warm White	130 lm/W	19 mm	19 mm	Flat	Chip On Board (COB)	720 mA	1.84 A	3237 lm	1.4 mm	2700 K	3-Step MacAdam Ellipse	85 °C
Citizen Finedevice Co Ltd CLU036-1208C1-353M2G2	Square	14.5 mm	80	34.6 V	Warm White	139 lm/W	19 mm	19 mm	Flat	Chip On Board (COB)	720 mA	1.84 A	3461 lm	1.4 mm	3500 K	3-Step MacAdam Ellipse	85 °C
