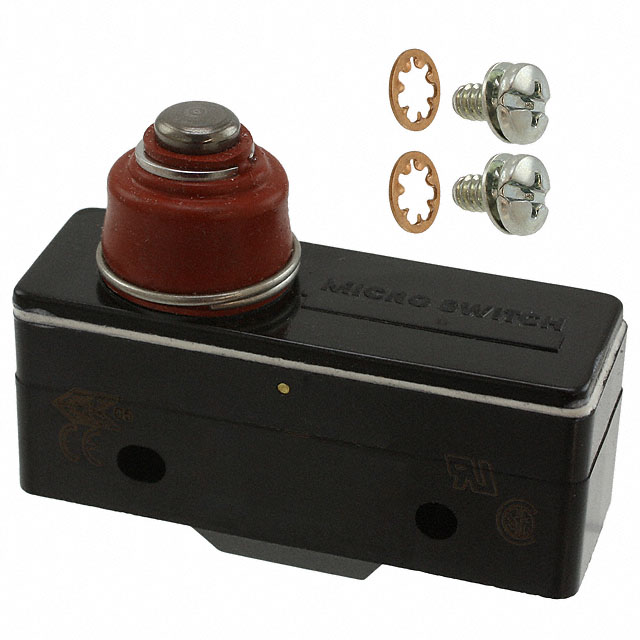

YZ-2RD Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPST-NO 15A 125V
| Part | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Operating Position | Operating Position | Overtravel [custom] | Overtravel [custom] | Current Rating (Amps) | Mechanical Life | Mounting Type | Circuit | Operating Force [Max] | Operating Force [Min] | Differential Travel | Differential Travel | Release Force | Voltage Rating - DC | Ingress Protection | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Off-Mom | -55 C | 85 °C | 125 V | 28.2 mm | 1.11 in | 0.062 " | 1.6 mm | 15 A 500 mA | 20000000 Cycles | Chassis Mount | SPST-NO | 538 gf | 227 gf | 0.05 mm | 0.002 in | 113 gf | 125 VDC | Splash Proof | Round (Pin Plunger) | |
 Honeywell Sensing and Productivity Solutions | Off-Mom | -55 C | 85 °C | 125 V | 28.2 mm | 1.11 in | 0.06 " | 1.5 mm | 15 A 500 mA | 20000000 Cycles | Chassis Mount | SPST-NO | 538 gf | 368 gf | 0.05 mm | 0.002 in | 113 gf | 125 VDC | Splash Proof | Round (Pin Plunger) | Screw Terminal |
