R16142 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

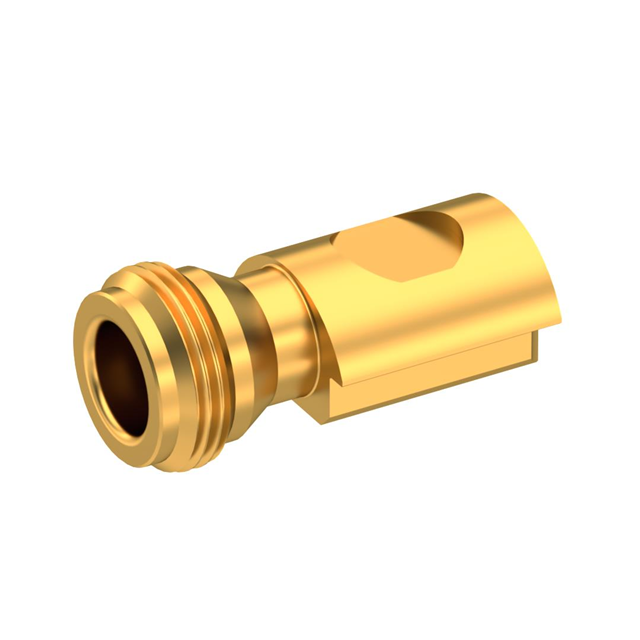

N / EDGE CARD FEMALE RECEPTACLE
| Part | Dielectric Material | Voltage Rating | Body Material | Insertion Loss | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Plating | Frequency - Max [Max] | Housing Color | Impedance | Contact Termination | Center Contact Material | Fastening Type | Connector Type | Mounting Type | Number of Ports | Ingress Protection | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1400 V | Brass | 0.15 dB | Gold | 155 C | -55 C | 500 | Gold | 11 GHz | Gold | 50 Ohms | Solder | Beryllium Copper | Threaded | Receptacle Female Socket | Board Edge Cutout Surface Mount | 1 | IP67 - Dust Tight Waterproof | N Type | Solder |
