M2012B2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Panel Cutout Dimensions [diameter]	Illumination	Bushing Thread	Features	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Switch Function	Mounting Type	Voltage Rating - DC	Actuator Length [x]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection
NKK Switches M2012B2B1W01-VA	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Black Cap	4 A 6 A	Solder Lug	125 V	On-On	Panel Mount	30 V	17.5 mm	Standard Round with Cap	85 °C	-30 ░C	SPDT
NKK Switches M2012B2B1W03-VF	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Green Cap	4 A 6 A	PC Pin	125 V	On-On	Panel Mount	30 V	17.5 mm	Standard Round with Cap	85 °C	-30 ░C	SPDT
NKK Switches M2012B2B1W01	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	125 V	On-On	Panel Mount	30 V	17.5 mm	Standard Round	85 °C	-30 ░C	SPDT

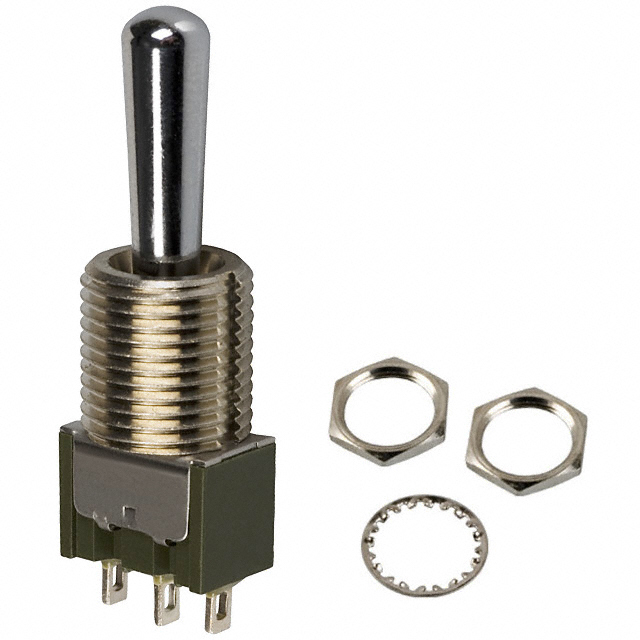

NKK Switches M2012B2B1G01	50000 Cycles	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Epoxy Sealed Terminals	0.4 VA	Solder Lug	28 V	On-On	Panel Mount	28 V	17.5 mm	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2012B2B1A01/U	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Epoxy Sealed Terminals	4 A 6 A	Solder Lug	125 V	On-On	Panel Mount	30 V	17.5 mm	Standard Round	85 °C	-30 ░C	SPDT

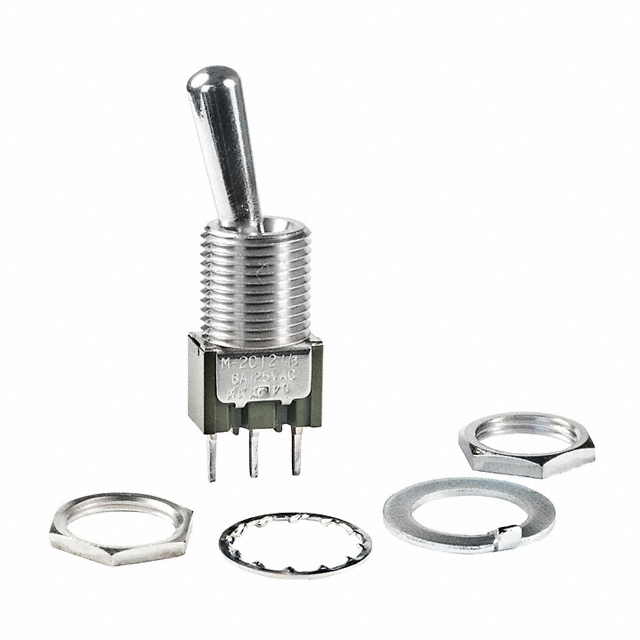

NKK Switches M2012B2B1W03	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Epoxy Sealed Terminals	4 A 6 A	PC Pin	125 V	On-On	Panel Mount	30 V	17.5 mm	Standard Round	85 °C	-30 ░C	SPDT

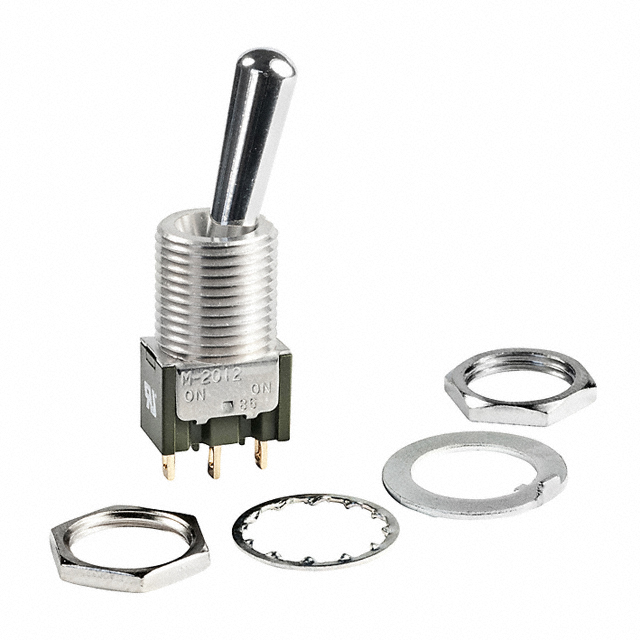

NKK Switches M2012B2B1G01/U	50000 Cycles	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Epoxy Sealed Terminals	0.4 VA	Solder Lug	28 V	On-On	Panel Mount	28 V	17.5 mm	Standard Round	85 °C	-30 ░C	SPDT
NKK Switches M2012B2B3W01-VA	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Black Cap	4 A 6 A	Solder Lug	125 V	On-On	Panel Mount	30 V	18.5 mm	Standard Round with Cap	85 °C	-30 ░C	SPDT	IP67 - Dust Tight Waterproof
NKK Switches M2012B2B1W03-VF-AT4181	25000 Steps	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1		4 A 6 A	PC Pin	125 V	On-On	Panel Mount	30 V	17.5 mm	Standard Round with Cap	85 °C	-30 ░C	SPDT

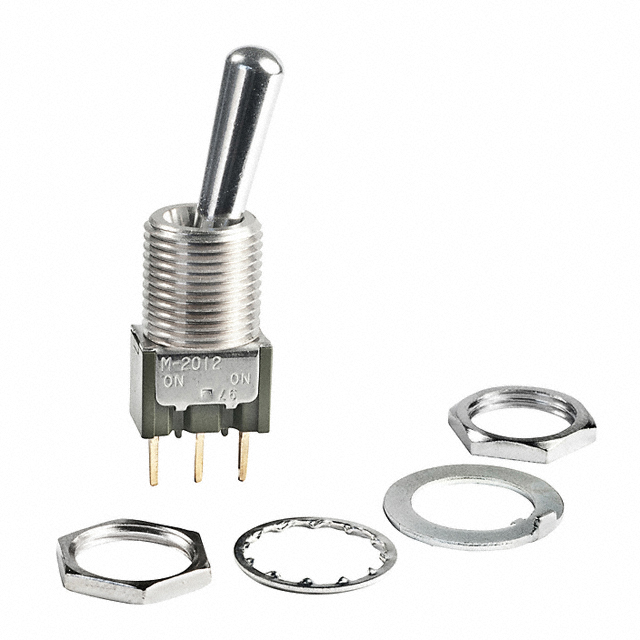

NKK Switches M2012B2B1G03	50000 Cycles	Brass Chrome Plated	12.5 mm	Non-Illuminated	M12 x 1	Epoxy Sealed Terminals	0.4 VA	PC Pin	28 V	On-On	Panel Mount	28 V	17.5 mm	Standard Round	85 °C	-30 ░C	SPDT
