391-059 Series
Manufacturer: EDAC Inc.
Beta
⌘K

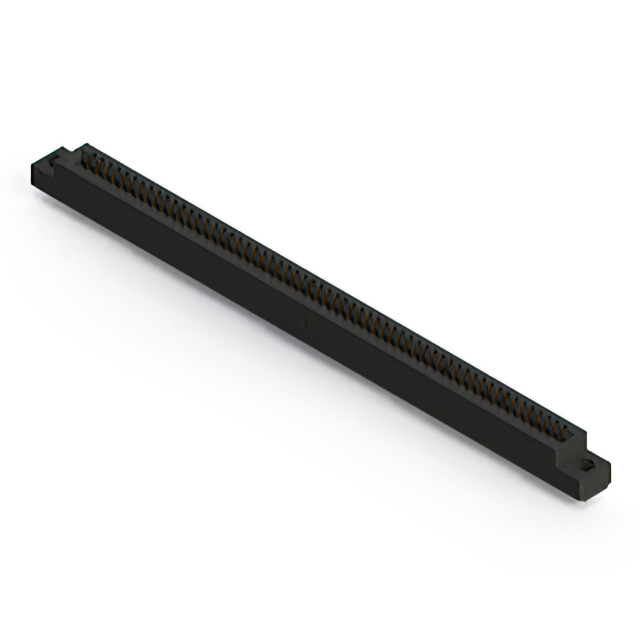

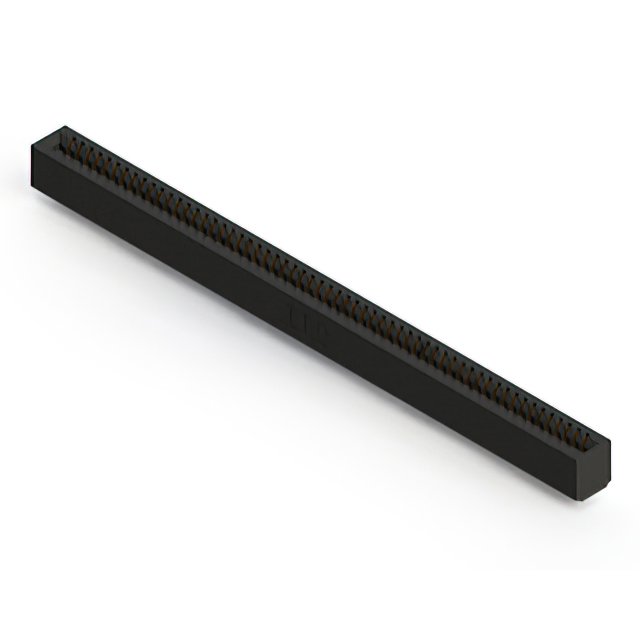

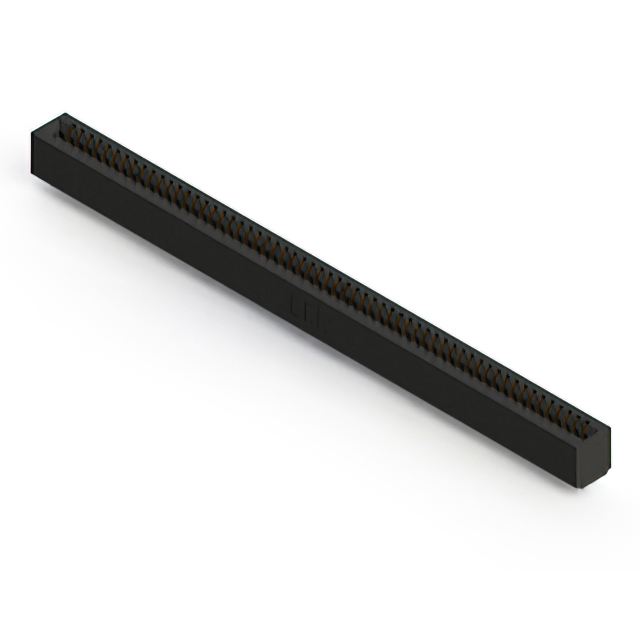

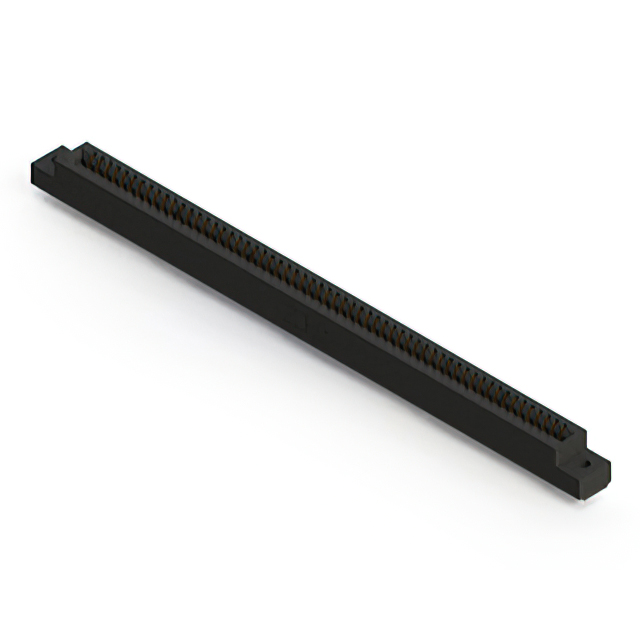

CONN EDGE SINGLE FML 59POS 0.100
| Part | Material - Insulation | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Pitch | Pitch | Gender | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Read Out | Number of Rows | Mounting Type | Termination | Contact Finish | Number of Positions/Bay/Row [custom] | Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy |
 EDAC Inc. | Polyester Thermoplastic | 1 | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy |
 EDAC Inc. | Polyester Thermoplastic | 1 | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy |
 EDAC Inc. | Polyester Thermoplastic | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Semi Bellows | 0.1 " | 2.54 mm | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 59 | Single | 1 | Through Hole | Solder | Gold | 59 | Black | Copper Alloy |
