LHD-08 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER R/A 8POS 3.96MM
| Part | Contact Shape | Contact Material | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Style | Insulation Height | Insulation Height | Insulation Material | Connector Type | Current Rating (Amps) | Contact Type | Insulation Color | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Shrouding | Mounting Type | Contact Finish - Post | Fastening Type | Number of Positions | Termination | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

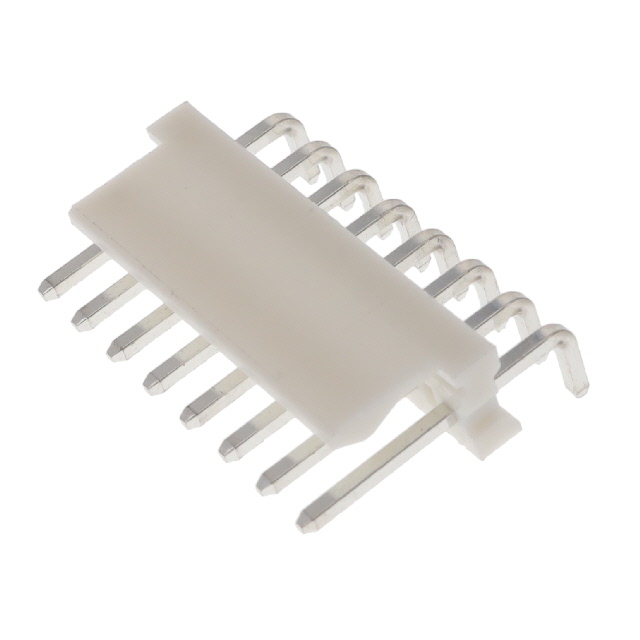

 Adam Tech | Square | Brass | UL94 V-2 | 0.126 " | 3.2 mm | Board to Cable/Wire | 7.62 mm | 0.3 in | Glass Filled Nylon 6/6 Polyamide (PA66) | Header | 7 A | Male Pin | White | All | 85 °C | -40 C | 3.96 mm | 0.156 in | Shrouded - 1 Wall | Right Angle Through Hole | Tin | Friction Lock | 8 | Solder | 11.4 mm | 0.449 in | 1 | ||||||

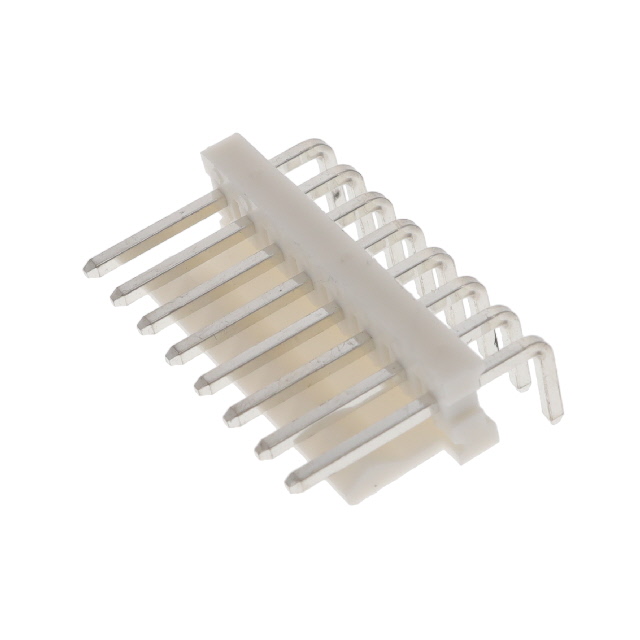

 Adam Tech | Square | Brass | UL94 V-2 | 0.126 " | 3.2 mm | Board to Cable/Wire | 7.62 mm | 0.3 in | Glass Filled Nylon 6/6 Polyamide (PA66) | Header | 7 A | Male Pin | White | All | 85 °C | -40 C | 3.96 mm | 0.156 in | Shrouded - 1 Wall | Right Angle Through Hole | Friction Lock | 8 | Solder | 11.4 mm | 0.449 in | 1 | |||||||

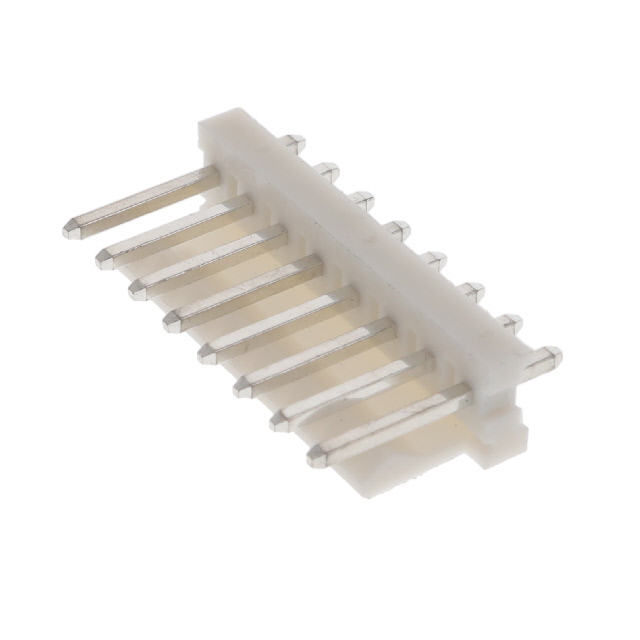

 Adam Tech | Square | Brass | UL94 V-2 | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | Header | 7 A | Male Pin | White | All | 105 ░C | -40 C | 3.96 mm | 0.156 in | Shrouded - 1 Wall | Through Hole | Tin | Friction Lock | 8 | Solder | 11.38 mm | 0.448 in | 1 | 0.142 in | 3.6 mm | 10.8 mm | 0.425 in | 18.16 mm | 0.715 in |
