B513F Series
Manufacturer: Sensata-Crydom
Beta
⌘K

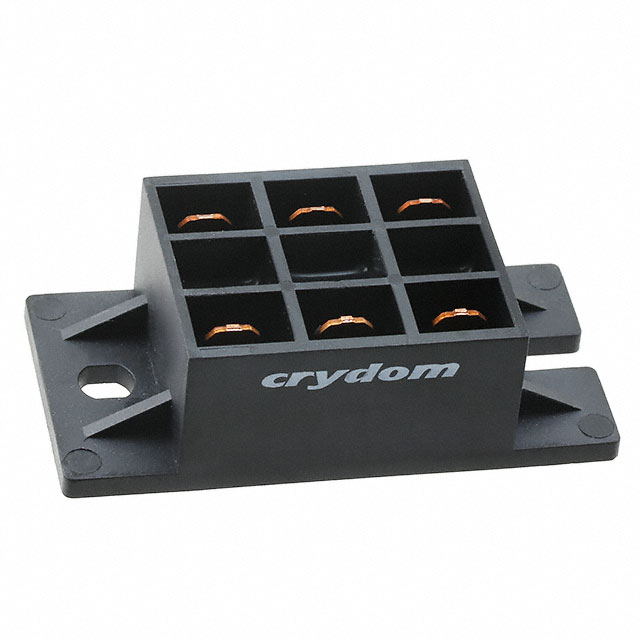

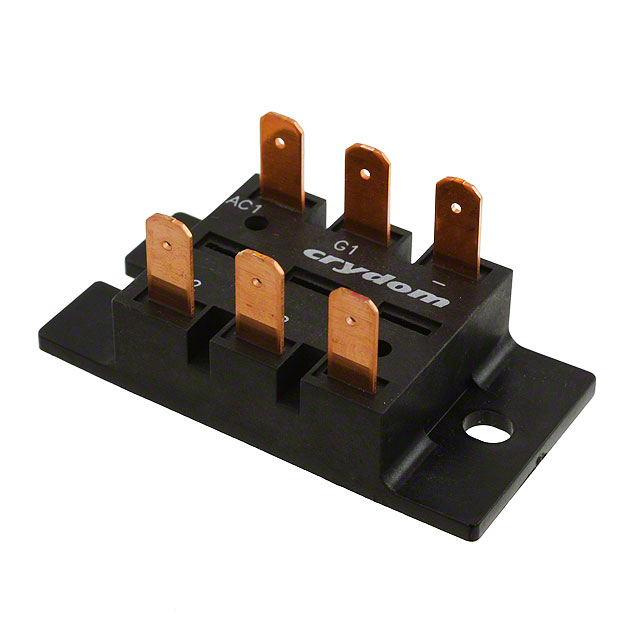

MOD DIODE SCR 25A 280VAC ISO QC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of SCRs, Diodes [custom] | Number of SCRs, Diodes [custom] | Package / Case | Mounting Type | Current - Gate Trigger (Igt) (Max) [Max] | Structure | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Voltage - Off State |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | -40 C | 125 °C | 2 | 2 | Module with Isolation Barriers | Chassis Mount | 60 mA | Bridge Single Phase - SCRs/Diodes (Layout 1) | 2.5 V | 250 A | 800 V |
 Sensata-Crydom | -40 C | 125 °C | 2 | 2 | Module | Chassis Mount | 60 mA | Bridge Single Phase - SCRs/Diodes (Layout 1) | 2.5 V | 250 A | 800 V |
