IL-AG5-1 Series

Catalog

CONN RCPT HSG 14POS 2.50MM

Part	Note	Row Spacing	Row Spacing	Number of Rows [custom]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Termination	Number of Positions	Connector Type	Mounting Type	Insulation Material	Contact Type	Number of Rows	Applications	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Features	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Style	Contact Finish - Post	Contact Shape	Shrouding	Contact Material	Termination	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Insulation Height	Insulation Height	Mated Stacking Heights	Overall Contact Length	Overall Contact Length

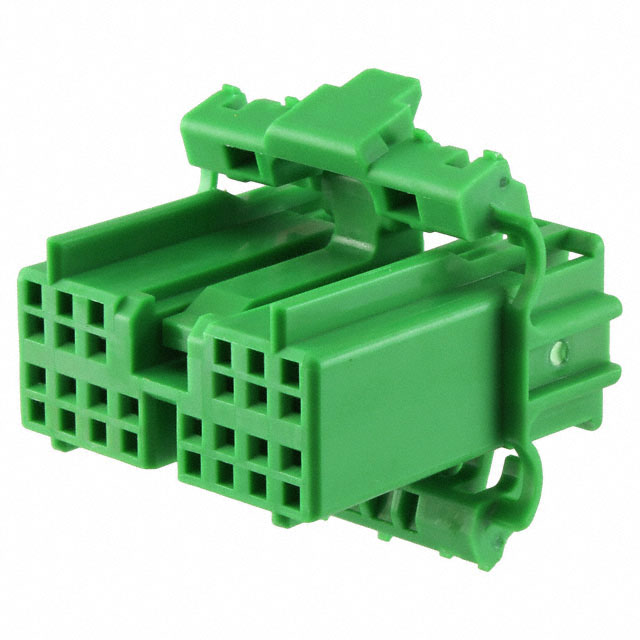

JAE Electronics IL-AG5-14S-D3C1-A	Contacts Not Included	3 mm	0.118 "	2	Green	85 °C	-40 C	2.5 mm	0.098 in	Crimp	14	Receptacle	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket
JAE Electronics IL-AG5-10S-S3C1	Contacts Not Included				Green	85 °C	-40 C	2.5 mm	0.098 in	Crimp	10	Receptacle	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket	1
JAE Electronics IL-AG5-16P-D3C1	Contacts Not Included	3 mm	0.118 "	2	Green	85 °C	-40 C	2.5 mm	0.098 in	Crimp	16	Plug	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Male Pin

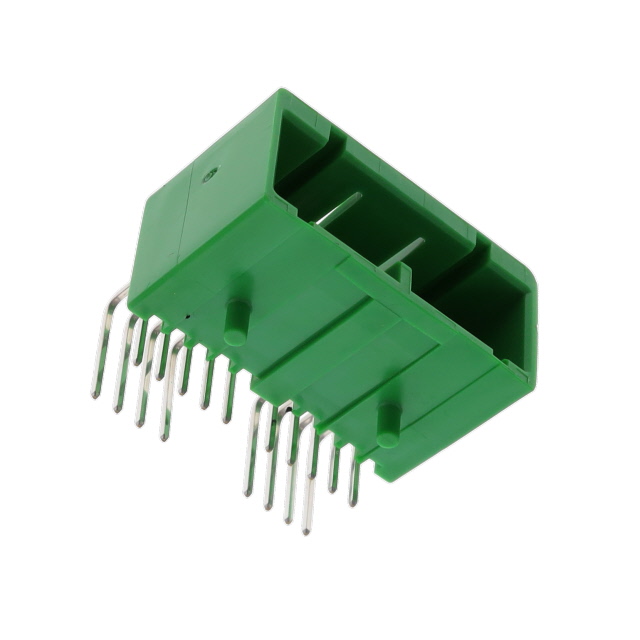

JAE Electronics IL-AG5-18P-D3L2				2		85 °C	-40 C				18	Header	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin		Automotive	3 A	2.5 mm	0.098 in	Green	0.138 in	3.5 mm	Board Guide	0.331 in	8.4 mm	All	Board to Cable/Wire	Tin	Square	Shrouded - 4 Wall	Brass	Solder	0.591 in	15 mm	0.118 in	3 mm	Push-Pull
JAE Electronics IL-AG5-16S-D3C1-A	Contacts Not Included	3 mm	0.118 "	2	Green	85 °C	-40 C	2.5 mm	0.098 in	Crimp	16	Receptacle	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket

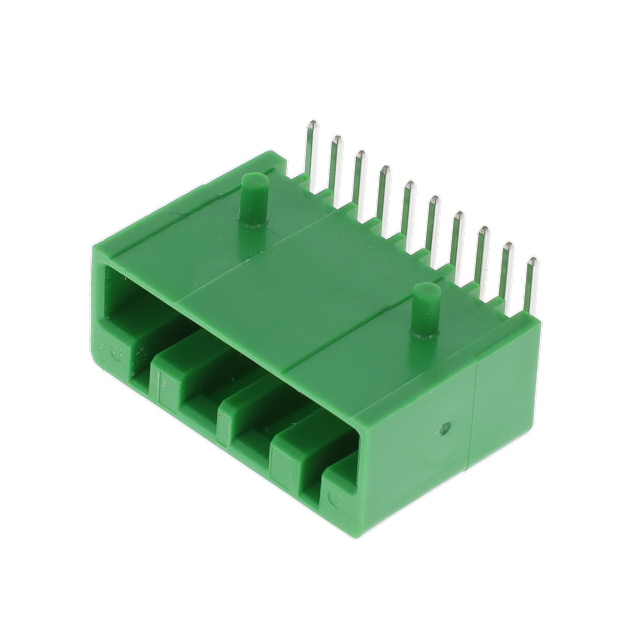

JAE Electronics IL-AG5-10P-S3L2						85 °C	-40 C				10	Header	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	1	Automotive	3 A	2.5 mm	0.098 in	Green	0.138 in	3.5 mm	Board Guide	0.331 in	8.4 mm	All	Board to Cable/Wire	Tin	Square	Shrouded - 4 Wall	Brass	Solder					Push-Pull	11 mm	0.433 "

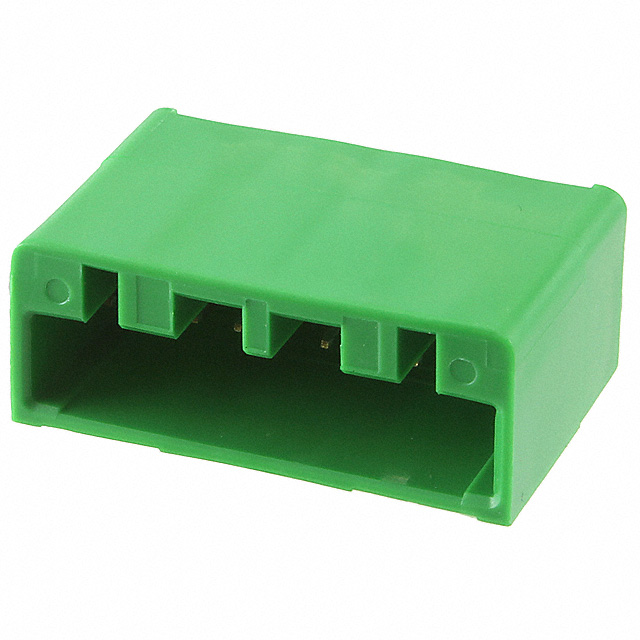

JAE Electronics IL-AG5-10P-S3T2						85 °C	-40 C				10	Header	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	1	Automotive	3 A	2.5 mm	0.098 in	Green	0.138 in	3.5 mm		0.331 in	8.4 mm	All	Board to Cable/Wire	Tin	Square	Shrouded - 4 Wall	Brass	Solder	0.717 in				Push-Pull	18.2 mm		28.2 mm	0.594 in	15.09 mm
JAE Electronics IL-AG5-14P-D3L2-A				2		85 °C	-40 C				14	Header	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin		Automotive	3 A	2.5 mm	0.098 in	Green	0.138 in	3.5 mm	Board Guide	0.331 in	8.4 mm	All	Board to Cable/Wire	Tin	Square	Shrouded - 4 Wall	Brass	Solder	0.591 in	15 mm	0.118 in	3 mm	Push-Pull

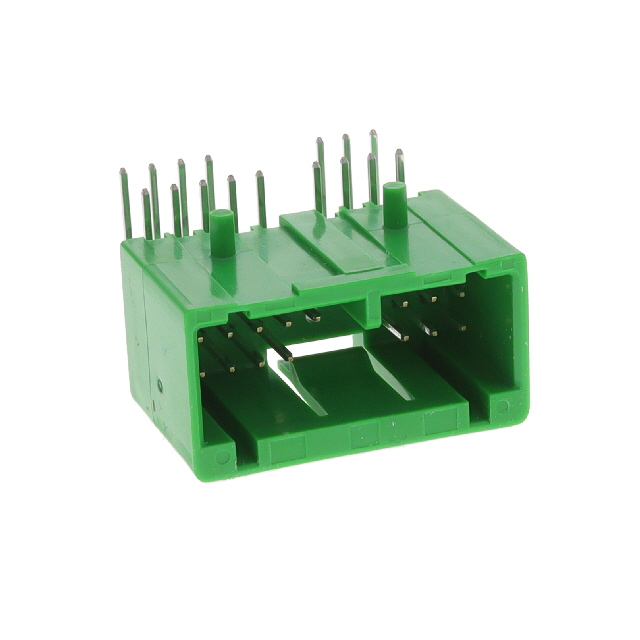

JAE Electronics IL-AG5-16P-D3L2-A				2		85 °C	-40 C				16	Header	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin		Automotive	3 A	2.5 mm	0.098 in	Green	0.138 in	3.5 mm	Board Guide	0.331 in	8.4 mm	All	Board to Cable/Wire	Tin	Square	Shrouded - 4 Wall	Brass	Solder	0.591 in	15 mm	0.118 in	3 mm	Push-Pull

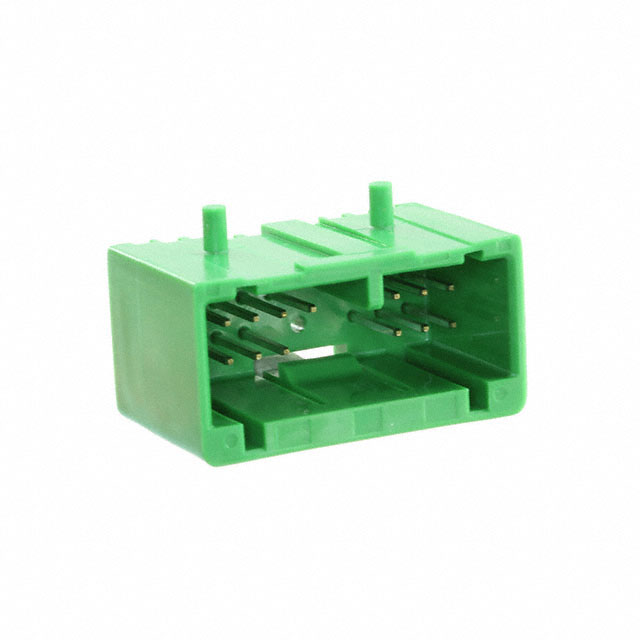

JAE Electronics IL-AG5-16P-D3T2-A				2		85 °C	-40 C				16	Header	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin		Automotive	3 A	2.5 mm	0.098 in	Green	0.138 in	3.5 mm		0.331 in	8.4 mm	All	Board to Cable/Wire	Tin	Square	Shrouded - 4 Wall	Brass	Solder	0.717 in		0.118 in	3 mm	Latch Lock	18.2 mm			0.594 in	15.09 mm
