G3RV-SL Series

Catalog

SSR RELAY SPST-NO 2A 100-240V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Load Current	Voltage - Input	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Package / Case	Output Type	Approval Agency	Voltage - Input

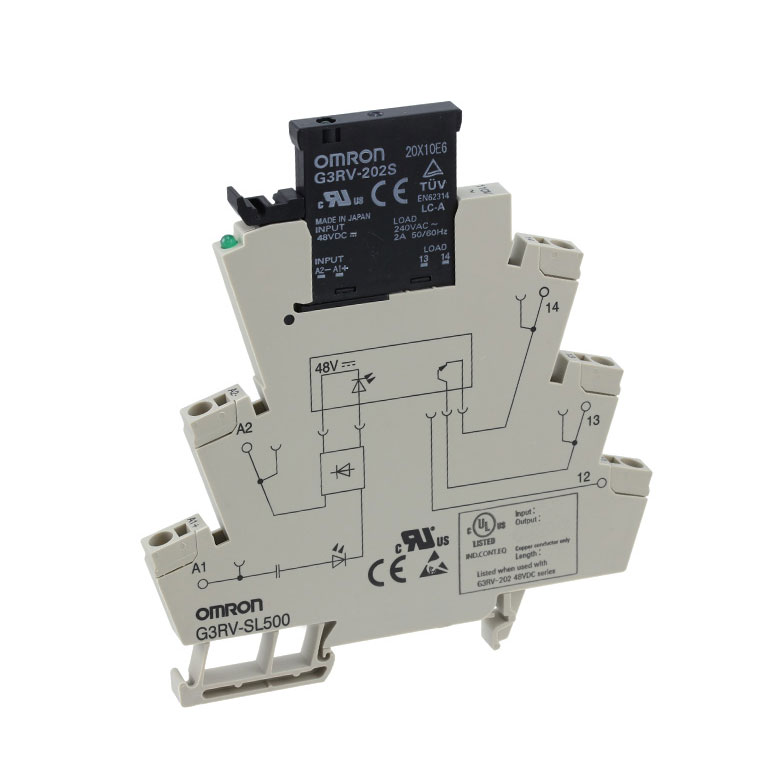

Omron Electronics Inc-EMC Div G3RV-SL500-AC1D2 AC110	100 °C	-30 ░C	Spring Terminal	2 A	110 VAC	240 V	100 V	DIN Rail	Module	AC Zero Cross	CE cULus TUV
Omron Electronics Inc-EMC Div G3RV-SL500-D AC/DC24	55 °C	-40 °C	Spring Terminal	3 A		24 V	5 V	DIN Rail	Module	DC	CE cULus TUV	24VAC/DC
Omron Electronics Inc-EMC Div G3RV-SL500-AL AC230	55 °C	-40 °C	Spring Terminal	2 A	230 VAC	240 V	100 V	DIN Rail	Module	AC	CE cULus TUV

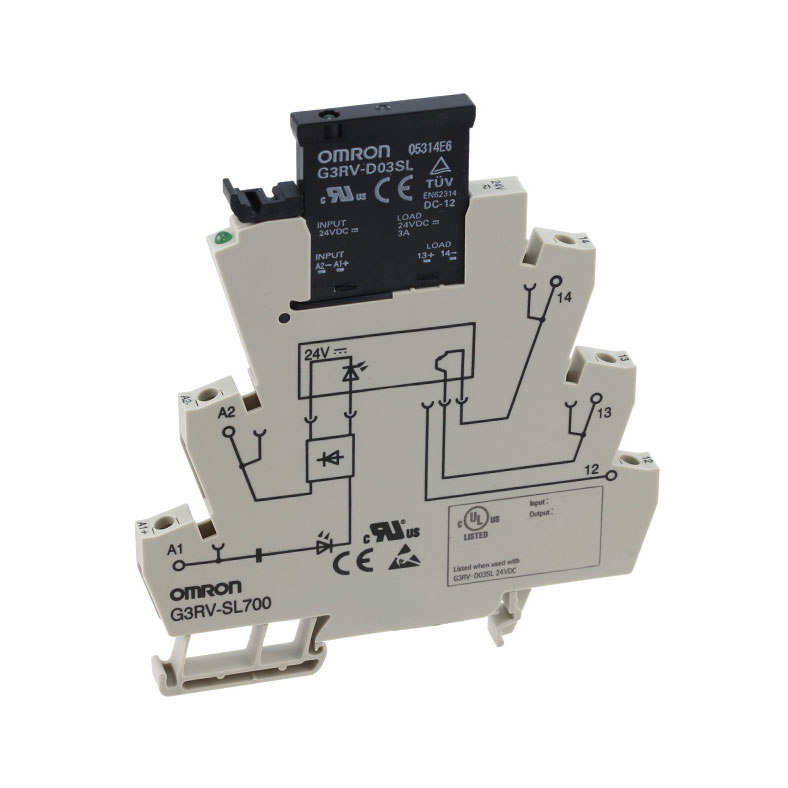

Omron Electronics Inc-EMC Div G3RV-SL700-D DC12	55 °C	-40 °C	Screw Terminal	3 A	12 VDC	24 V	5 V	DIN Rail	Module	DC	CE cULus TUV
Omron Electronics Inc-EMC Div G3RV-SL700-D AC/DC24	55 °C	-40 °C	Screw Terminal	3 A		24 V	5 V	DIN Rail	Module	DC	CE cULus TUV	24VAC/DC
Omron Electronics Inc-EMC Div G3RV-SL700-D-C1D2 AC/DC24	100 °C	-30 ░C	Screw Terminal	3 A		24 V	5 V	DIN Rail	Module	DC	CE cULus TUV	24VAC/DC
Omron Electronics Inc-EMC Div G3RV-SL500-DC1D2 DC24	100 °C	-30 ░C	Spring Terminal	3 A	24 V	24 V	5 V	DIN Rail	Module	DC	CE cULus TUV
