TIGM51 Series

Catalog

SWITCH ROCKER DPDT 15A 125V

Part	Approval Agency	Actuator Marking	Mounting Type	Actuator Type	Circuit	Termination Style	Current Rating (Amps)	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Color - Actuator/Cap
Carling Technologies TIGM51-7S-BL-NBL	CSA UL VDE	No Marking	Panel Mount Snap-In	Paddle	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	Black
Carling Technologies TIGM51-6S-BL-WBL/MATTE	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	Black
Carling Technologies TIGM51-6S-WH-WBL	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	White
Carling Technologies TIGM51-6S-WH-MBL	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	White

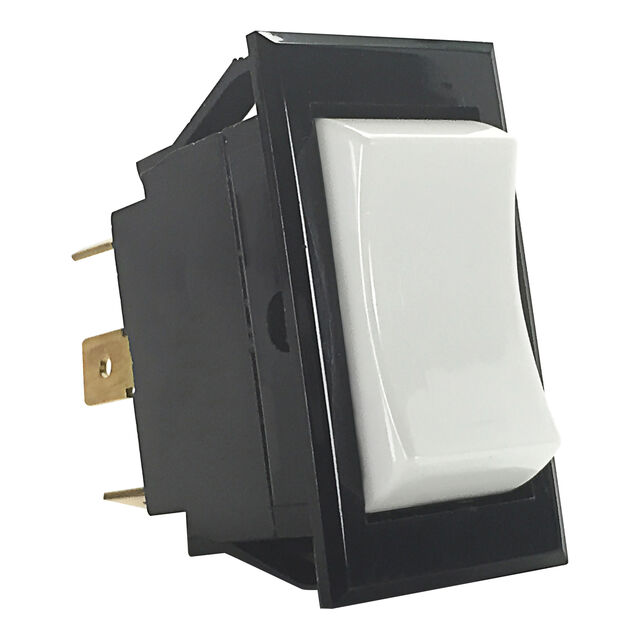

Carling Technologies TIGM51-6S-WH-NBL	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	White
Carling Technologies TIGM51-6S-BL-WBL	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	Black
Carling Technologies TIGM51-6S-WH-NWH	CSA UL VDE	No Marking	Panel Mount Snap-In	Concave (Curved)	DPDT	Quick Connect - 0.250" (6.3mm)	15 A	50000 Cycles	21.08 mm	36.83 mm	125 V	On-Off-On	28 V	White
