093828 Series
Manufacturer: Molex
Beta
⌘K

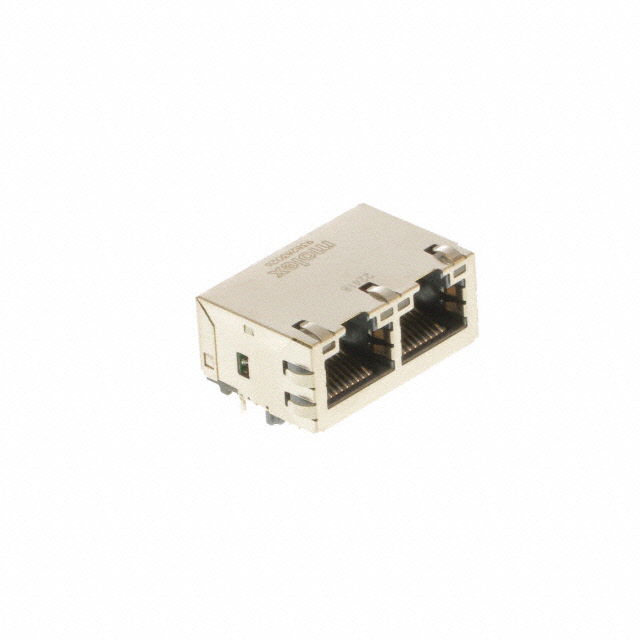

MXMAG DUAL PORT 4 CORE FE W/ LED
| Part | Tab Direction | Termination | Number of Cores per Jack | Connector Type | Contact Material | LED Color | Number of Rows | Number of Ports | Housing Material | Mounting Type | Height Above Board [z] | Height Above Board [z] | Features | Applications | Shield Material | Contact Finish | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Up | Solder | 8 | RJ45 | Phosphor Bronze | Green Yellow | 1 | 2 | Liquid Crystal Polymer (LCP) | Through Hole | 14.1 mm | 0.555 in | Board Guide | 10/100 Base-T AutoMDIX | Brass | Gold | Shielded EMI Finger | 70 °C | 0 °C | 90 ° |
