PTS Series

Catalog

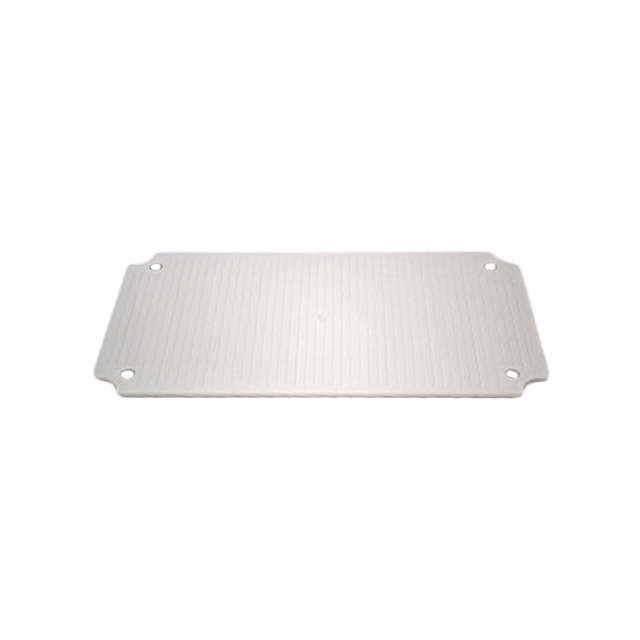

ELECTRICAL ENCLOSURE ACCESSORIES PLASTIC INTERNAL PANEL 3.70 X 2.52"

Part	For Use With/Related Products	Type	Material	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Design	Features	Ratings	Material Flammability Rating	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Thickness	Thickness	Height	Height	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Area (L x W)
BUD INDUSTRIES PTX-25308-P	PTS Series	Panel Inner	ABS Plastic	3 mm	0.118 in	65 mm	95 mm	3.74 "	2.559 "	Gray
BUD INDUSTRIES PTS-25308-C			Fiberglass/Polyester Plastic Polycarbonate			80 mm	110 mm	4.331 in	3.15 in	Clear Cover/Door Gray	Cover Included	Flame Retardant PCB Supports Sealing Gasket	IP67 NEMA 4X NEMA 6 UL-508	UL94 V-0	70 mm	2.756 in	13.6 in˛	88 cm²	Box	0.118 in	3 mm
BUD INDUSTRIES PTS-25317			Fiberglass/Polyester Plastic Polycarbonate			3.228 "	6.378 in			Gray	Cover Included	Flame Retardant PCB Supports Sealing Gasket	IP67 NEMA 4X NEMA 6 UL-508	UL94 V-0			20.6 in²	133 cm²	Box	0.118 in	3 mm	3.15 in	80 mm	82 mm	162 mm
BUD INDUSTRIES PTS-25328-C			Fiberglass/Polyester Plastic Polycarbonate			150 mm	200 mm	7.874 in	5.906 "	Clear Cover/Door Gray	Cover Included	Flame Retardant PCB Supports Sealing Gasket	IP67 NEMA 4X NEMA 6 UL-508	UL94 V-0		3.937 "		46.5 in²	Box	0.118 in	3 mm		100 mm			426.38 g	0.94 lb	300 cm²
BUD INDUSTRIES PTS-25301			Fiberglass/Polyester Plastic Polycarbonate			50 mm	65 mm	2.559 in	1.969 in	Gray	Cover Included	Flame Retardant PCB Supports Sealing Gasket	IP67 NEMA 4X NEMA 6 UL-508	UL94 V-0	55 mm	2.165 in	5.03 in²	32.5 cm²	Box	0.098 in	2.5 mm
BUD INDUSTRIES PTX-25315	PTS Series	Panel Inner	Metal Steel	1.5 mm	0.059 in	134 mm	134 mm	5.276 in	5.276 in	Natural
BUD INDUSTRIES PTS-25328			Fiberglass/Polyester Plastic Polycarbonate			150 mm	200 mm	7.874 in	5.906 "	Gray	Cover Included	Flame Retardant PCB Supports Sealing Gasket	IP67 NEMA 4X NEMA 6 UL-508	UL94 V-0		3.937 "		46.5 in²	Box	0.118 in	3 mm		100 mm					300 cm²
