TMAG5170 Series

Catalog

EVAL BOARD FOR TMAG5170

Part	Utilized IC / Part	Sensing Range	Interface	Sensor Type	Embedded	Supplied Contents	Sensing Range [Max]	Sensing Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Technology	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Test Condition	Current - Output (Max) [Max]	Function	Polarization

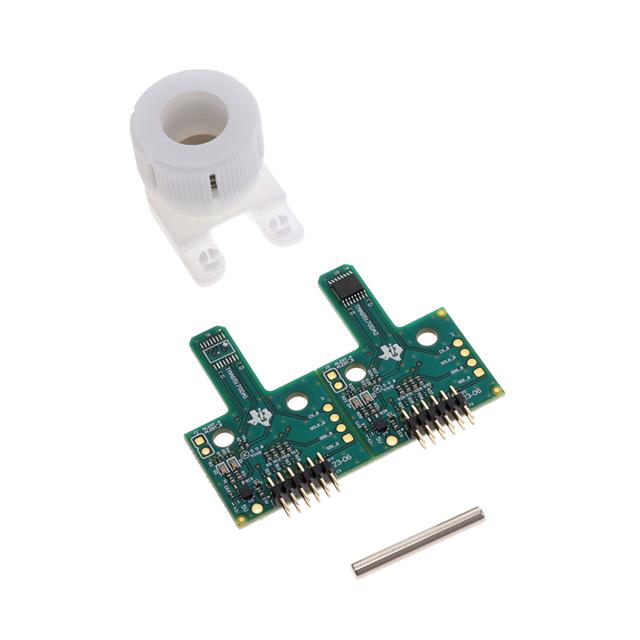

Texas Instruments TMAG5170DEVM	TMAG5170D	75 mT 150 mT 300 mT	SPI	Hall Effect	Yes MCU	Accessories Board(s) Cable(s)

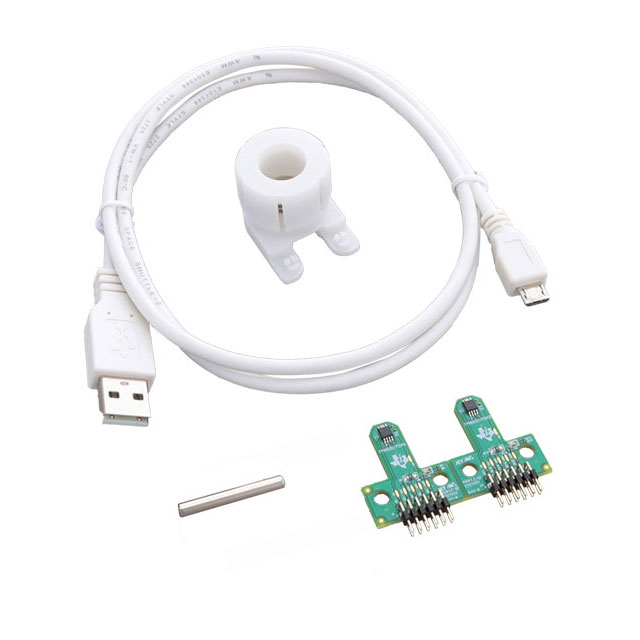

Texas Instruments TMAG5170UEVM	TMAG5170		SPI	Hall Effect	Yes MCU	Accessories Board(s) Cable(s)	25 mT 50 mT 75 mT 100 mT 150 mT 300 mT	-300 mT -150 mT -100 mT -75 mT -50 mT -25 mT
Texas Instruments TMAG5170A2QDGKT							75 mT 300 mT	-300 mT -75 mT	-40 °C	150 °C	2.3 V	5.5 V	Sleep Mode Temperature Compensated	Hall Effect	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	25 °C	2 mA	Latch	North Pole South Pole
Texas Instruments TMAG5170A1QDGKR							25 mT 100 mT	-100 mT -25 mT	-40 °C	150 °C	2.3 V	5.5 V	Temperature Compensated	Hall Effect	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	25 °C	2 mA	Latch	North Pole South Pole
Texas Instruments TMAG5170A1QDGKT							25 mT 100 mT	-100 mT -25 mT	-40 °C	150 °C	2.3 V	5.5 V	Temperature Compensated	Hall Effect	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	25 °C	2 mA	Latch	North Pole South Pole
Texas Instruments TMAG5170A2QDGKR							75 mT 300 mT	-300 mT -75 mT	-40 °C	150 °C	2.3 V	5.5 V	Sleep Mode Temperature Compensated	Hall Effect	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	25 °C	2 mA	Latch	North Pole South Pole
