TPS2410 Series

0.8-V to 16.5-V 1.2A IQ 290-uA Igate source N+1 and OR-ing power rail controller

Catalog

0.8-V to 16.5-V 1.2A IQ 290-uA Igate source N+1 and OR-ing power rail controller

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Applications	Package / Case [custom]	Package / Case [custom]	Package / Case	Ratio - Input:Output [custom]	Current - Supply	Delay Time - OFF	FET Type	Mounting Type	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplied Contents	Utilized IC / Part	Secondary Attributes [Max]	Secondary Attributes [Min]	Function
Texas Instruments TPS2410PWR	85 °C	-40 °C	14-TSSOP	High Availability N+1 Power Supplies	0.173 "	4.4 mm	14-TSSOP	N:1	4.25 mA	130 ns	N-Channel	Surface Mount	N+1 ORing Controller	16.5 V	3 V
Texas Instruments TPS2410PW	85 °C	-40 °C	14-TSSOP	High Availability N+1 Power Supplies	0.173 "	4.4 mm	14-TSSOP	N:1	4.25 mA	130 ns	N-Channel	Surface Mount	N+1 ORing Controller	16.5 V	3 V

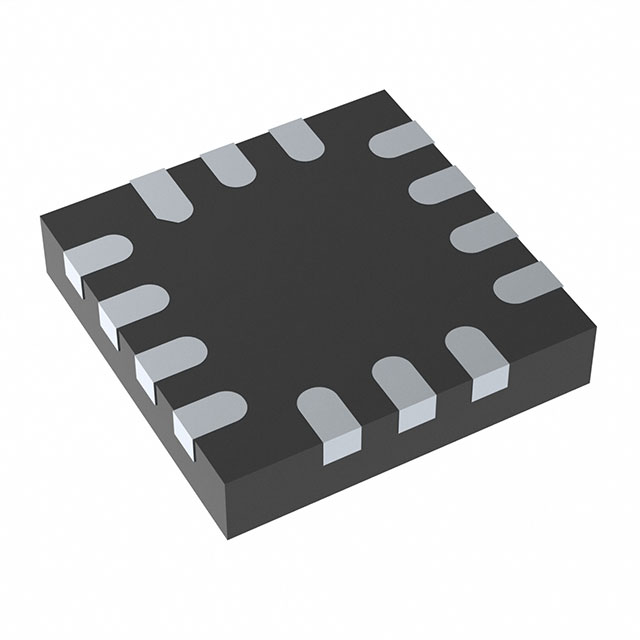

Texas Instruments TPS2410RMST	85 °C	-40 °C	14-UQFN (2.5x2.5)	High Availability N+1 Power Supplies			14-UFQFN	N:1	4.25 mA	130 ns	N-Channel	Surface Mount	N+1 ORing Controller	16.5 V	3 V

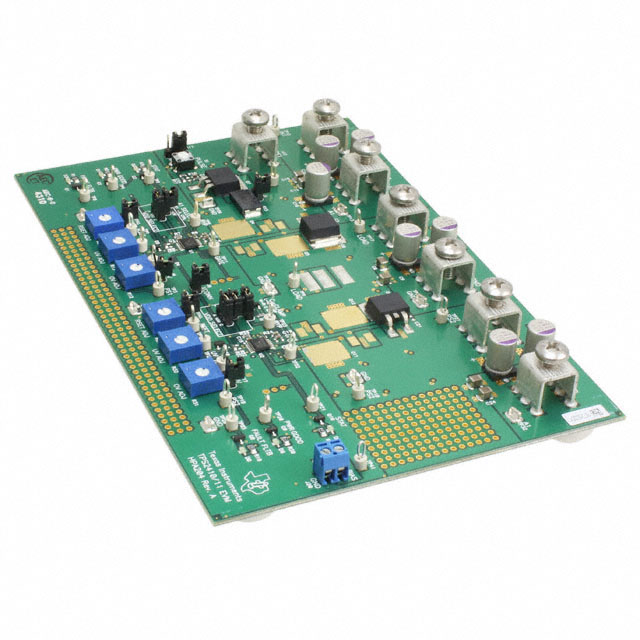

Texas Instruments TPS2410EVM													Power Management			Board(s)	TPS2410	16.5 V	3 V	ORing Controller / Load Share

Catalog

0.8-V to 16.5-V 1.2A IQ 290-uA Igate source N+1 and OR-ing power rail controller

Key Features

• Control external FET for N+1 and ORingWide supply voltage range of 3 V to 16.5 VControls buses from 0.8 V to 16.5 VLinear or on/off control methodInternal charge pump for N-channel MOSFETRapid device turnoff protects bus integrityPositive gate control on hot insertionSoft turn on reduces bus transientsInput voltage monitoringShorted gate monitorMOSFET control-state indicatorIndustrial temperature range: –40°C to 85°CIndustry-standard 14-Pin TSSOP packageControl external FET for N+1 and ORingWide supply voltage range of 3 V to 16.5 VControls buses from 0.8 V to 16.5 VLinear or on/off control methodInternal charge pump for N-channel MOSFETRapid device turnoff protects bus integrityPositive gate control on hot insertionSoft turn on reduces bus transientsInput voltage monitoringShorted gate monitorMOSFET control-state indicatorIndustrial temperature range: –40°C to 85°CIndustry-standard 14-Pin TSSOP package

Description

The TPS241x controller, in conjunction with an external N-channel MOSFET, emulates the function of a low forward-voltage diode. The device can be used to combine multiple power supplies to a common bus in an N+1 configuration, or to combine redundant input power buses. The TPS2410 provides a linear turn-on control while the TPS2411 has an on/off control method. Applications for the TPS2410x include a wide range of systems including servers and telecom. These applications often have either N+1 redundant power supplies, redundant power buses, or both. These redundant power sources must have the equivalent of a diode OR to prevent reverse current during faults and hotplug. A TPS241x and N-channel MOSFET provide this function with less power loss than a schottky diode. Accurate voltage sensing, programmable fast turn-off threshold, and input filtering allow operations to be tailored for a wide range of implementations and bus characteristics. A number of monitoring features are provided to indicate voltage bus UV/OV, ON/OFF state, and a shorted MOSFET gate. The TPS241x controller, in conjunction with an external N-channel MOSFET, emulates the function of a low forward-voltage diode. The device can be used to combine multiple power supplies to a common bus in an N+1 configuration, or to combine redundant input power buses. The TPS2410 provides a linear turn-on control while the TPS2411 has an on/off control method. Applications for the TPS2410x include a wide range of systems including servers and telecom. These applications often have either N+1 redundant power supplies, redundant power buses, or both. These redundant power sources must have the equivalent of a diode OR to prevent reverse current during faults and hotplug. A TPS241x and N-channel MOSFET provide this function with less power loss than a schottky diode. Accurate voltage sensing, programmable fast turn-off threshold, and input filtering allow operations to be tailored for a wide range of implementations and bus characteristics. A number of monitoring features are provided to indicate voltage bus UV/OV, ON/OFF state, and a shorted MOSFET gate.
