166086 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

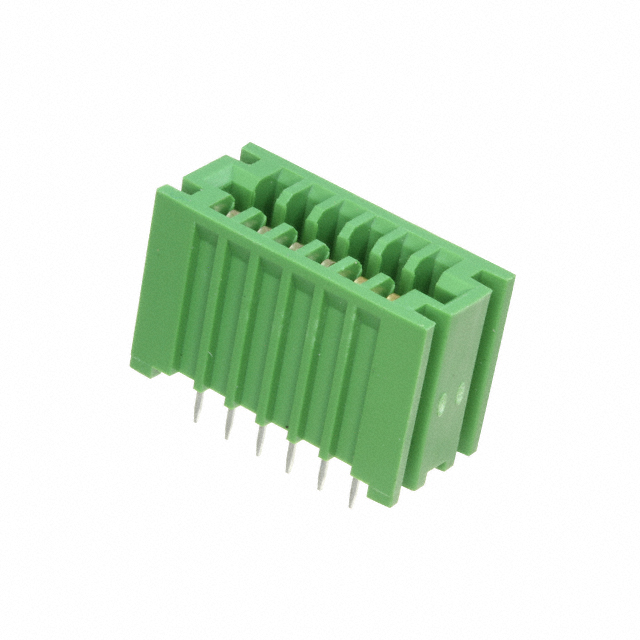

CONN EDGE SINGLE FML 6POS 0.100
| Part | Contact Finish | Number of Rows | Gender | Color | Number of Positions | Card Type | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Min] | Card Thickness [Max] | Read Out | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Material - Insulation | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | 1 | Female | Green | 6 | Non Specified - Single Edge | 0.057 " | 1.82 mm | 1.45 mm | 0.072 " | Single | 2.54 mm | 0.1 in | 16 µin | 0.41 µm | Solder | Polyester Thermoplastic | Through Hole | Phosphor Bronze |
