LHS-10 Series
Manufacturer: Adam Tech
Beta
⌘K

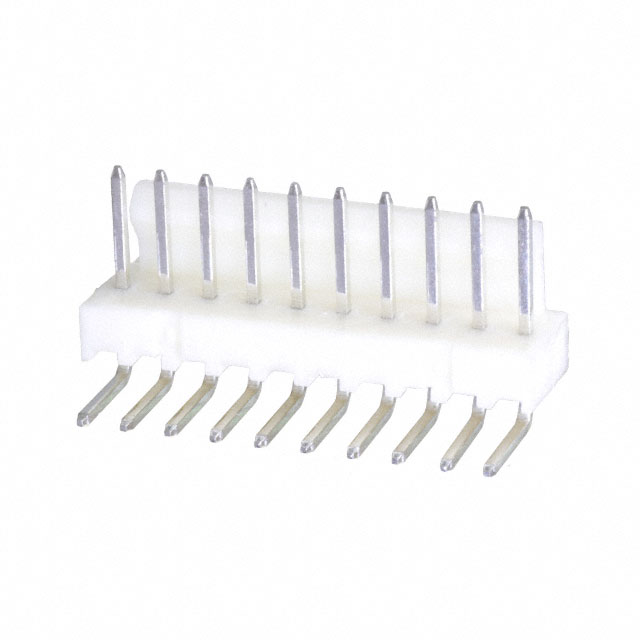

CONN HEADER R/A 10POS 2.54MM
| Part | Insulation Material | Shrouding | Contact Type | Contact Material | Contact Length - Mating | Contact Length - Mating | Insulation Color | Termination | Number of Positions Loaded | Number of Positions | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Connector Type | Fastening Type | Style | Contact Shape | Number of Rows | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Mounting Type | Overall Contact Length | Overall Contact Length | Insulation Height | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Nylon 6/6 Polyamide (PA66) | Shrouded - 1 Wall | Male Pin | Brass | 6.7 mm | 0.264 in | White | Solder | All | 10 | 0.13 " | 3.3 mm | 0.1 " | 2.54 mm | 85 °C | -25 °C | UL94 V-0 | 3 A | 250 VAC | Header | Friction Lock | Board to Cable/Wire | Square | 1 | 0.252 " | 6.4 mm | Tin | Right Angle Through Hole | ||||||

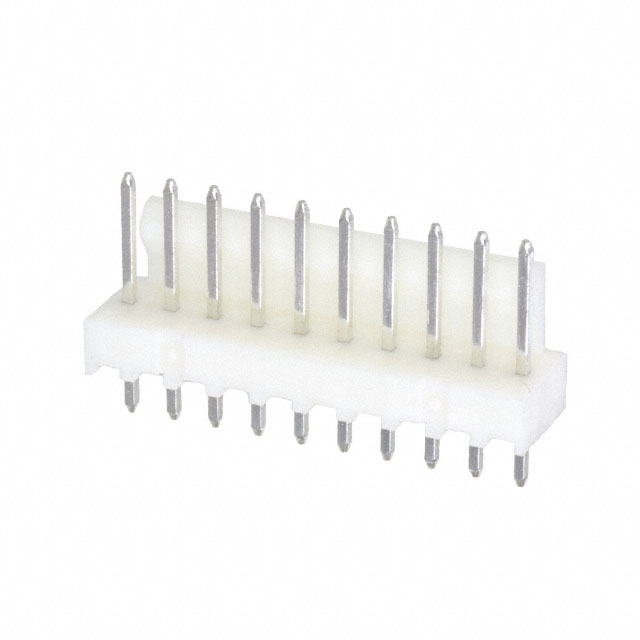

 Adam Tech | Nylon 6/6 Polyamide (PA66) | Shrouded - 1 Wall | Male Pin | Brass | White | Solder | All | 10 | 3.4 mm | 0.1 " | 2.54 mm | 85 °C | -25 °C | UL94 V-0 | 3 A | 250 VAC | Header | Friction Lock | Board to Cable/Wire | Square | 1 | 0.327 " | Tin | Through Hole | 14.2 mm | 0.559 " | 8.3 mm | 7.6 mm | 0.299 in | 0.134 " |
