R110A4 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
MMCX / STRAIGHT JACK RECEPTACLE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Voltage Rating | Dielectric Material | Center Contact Plating | Fastening Type | Connector Type | Frequency - Max [Max] | Connector Style | Impedance | Number of Ports | Contact Termination | Mounting Type | Shield Termination | Housing Color | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

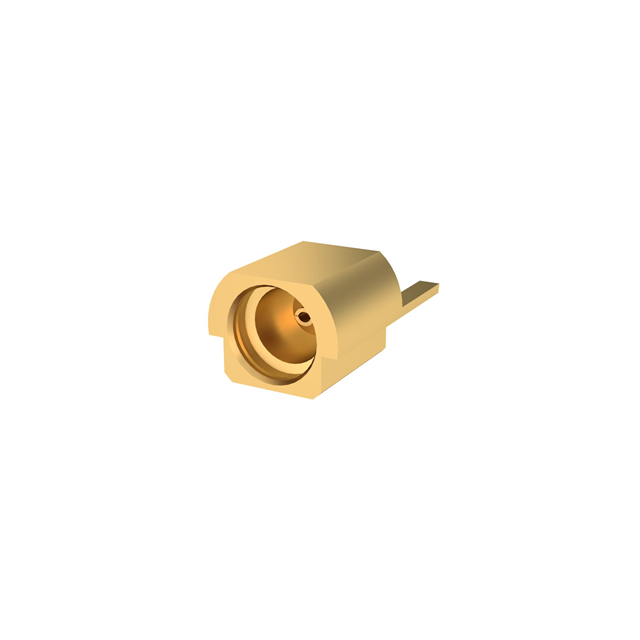

 Radiall USA, Inc. | 85 °C | -40 C | Brass | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Snap-On | Female Socket Jack | 3 GHz | MMCX | 50 Ohms | 1 | Solder | Board Edge Cutout Surface Mount | Solder | Gold | Beryllium Copper |

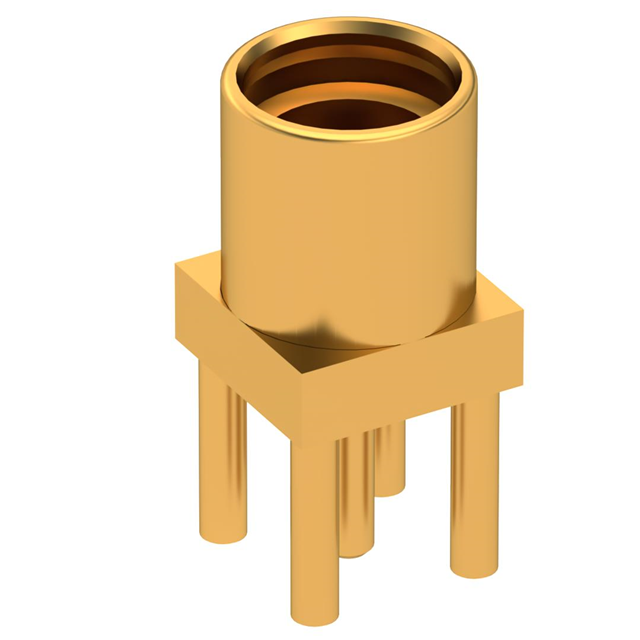

 Radiall USA, Inc. | 85 °C | -40 C | Brass | Gold | 170 V | Polytetrafluoroethylene (PTFE) | Gold | Snap-On | Female Socket Jack | 3 GHz | MMCX | 50 Ohms | 1 | Solder | Through Hole | Solder | Gold | Beryllium Copper |
 Radiall USA, Inc. | 85 °C | -40 C | Brass | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Snap-On | Receptacle Female Socket | 3 GHz | MMCX | 50 Ohms | 1 | Solder | Surface Mount | Solder | Gold | Beryllium Copper |
