RDM-MBF5 Series
Manufacturer: Raltron Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF ANT 850/900MHZ DOME SMA MALE
| Part | Termination | Termination Type | Termination Count (IPEX) | Termination Count | Number of Bands | Height (Max) | VSWR | Ingress Protection | Applications | RF Family/Standard | Frequency (Center/Band) | Frequency (Center/Band) - 2 | Frequency (Center/Band) - 1 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 6 | Frequency (Center/Band) - 4 | Frequency (Center/Band) - 5 | Antenna Type | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Minimum | Frequency Range (Band 2) Maximum | Frequency | Frequency Range (Band 1) Maximum | Frequency Group | Mounting Type | Gain | VSWR Maximum | VSWR Minimum | Frequency (Center/Band) - 7 | Frequency (Center/Band) - 8 | Termination Count (RP-SMA Male) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

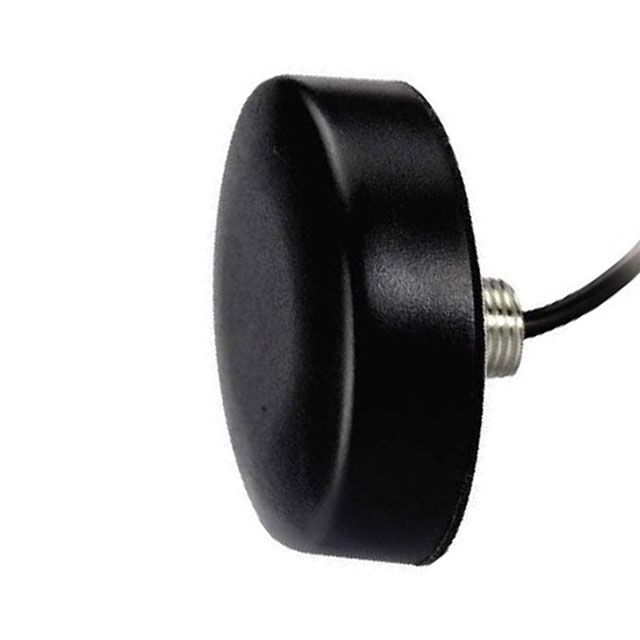

 Raltron Electronics | I-PEX (2) IPEX IPEX (2) | I-PEX IPEX | 2 | 2 | 2 | 0.642 in | 1.5 2 2.5 | IP66 IP67 | Cellular GPS GSM LNA | Cellular Navigation | 1.575GHz 1.8GHz 1.9GHz 2.1GHz 850MHz 900MHz | 900 MHz | 850 MHz | 1.575 GHz | 2.1 GHz | 1.8 GHz | 1.9 GHz | Puck | 824 MHz | 1.71 GHz | 2.17 GHz | 1.575 GHz | 960 MHz | Wide Band | Screw | 0 dBi 2 dBi | |||||

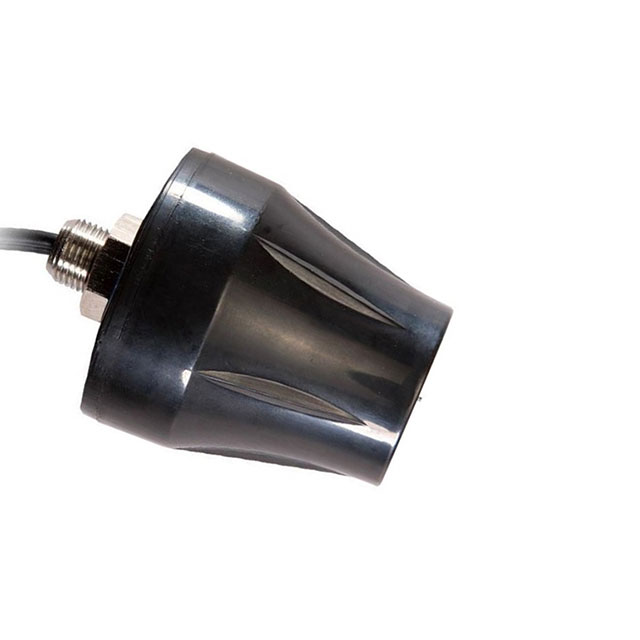

 Raltron Electronics | RP-SMA Male RP-SMA Male (2) | RP-SMA Male | 2 | 1.889 in | 1.5 2 | IP66 IP67 | Cellular GPS GSM LNA | Cellular Navigation | 1.575GHz 1.8GHz 1.9GHz 2.1GHz 850MHz 868MHz 900MHz 915MHz | 868 MHz | 850 MHz | 900 MHz | 1.8 GHz | 915 MHz | 1.575 GHz | Dome | 824 MHz | 1.71 GHz | 2.17 GHz | 1.575 GHz | 960 MHz | Wide Band | Screw | 2 dBi | 2 | 1.5 | 1.9 GHz | 2.1 GHz | 2 |
