LMZM23600 Series

Catalog

36-V, 0.5-A STEP-DOWN DC/DC POWER MODULE IN 3.8-MM × 3-MM PACKAGE

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Supplier Device Package	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Applications	Supplied Contents	Board Type	Main Purpose	Utilized IC / Part	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Frequency - Switching	Regulator Topology	Current - Output

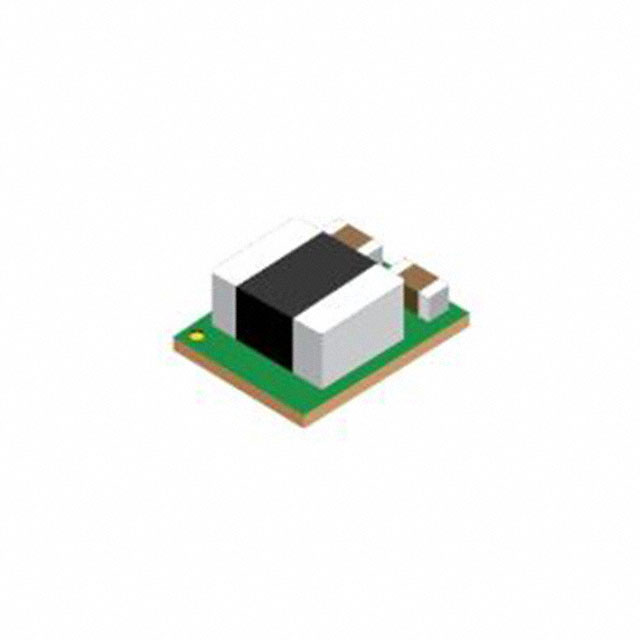

Texas Instruments LMZM23600V5SILT	125 °C	-40 °C	OCP SCP UVLO	5 V	4 V	10-LDFN Exposed Pad Module	500 mA	36 V	Non-Isolated PoL Module	10-uSIP (3.8x3)	90 %	1	3 mm	0.15 "	3.8 mm	0.06 "	0.12 "	1.6 mm	Surface Mount	ITE (Commercial)
Texas Instruments LMZM23600SILT	125 °C	-40 °C	OCP SCP UVLO		4 V	10-LDFN Exposed Pad Module	500 mA	36 V	Non-Isolated PoL Module	10-uSIP (3.8x3)		1	3 mm	0.15 "	3.8 mm	0.06 "	0.12 "	1.6 mm	Surface Mount	ITE (Commercial)
Texas Instruments LMZM23600V3SILR	125 °C	-40 °C	OCP SCP UVLO	3.3 V	4 V	10-LDFN Exposed Pad Module	500 mA	36 V	Non-Isolated PoL Module	10-uSIP (3.8x3)	87 %	1	3 mm	0.15 "	3.8 mm	0.06 "	0.12 "	1.6 mm	Surface Mount	ITE (Commercial)

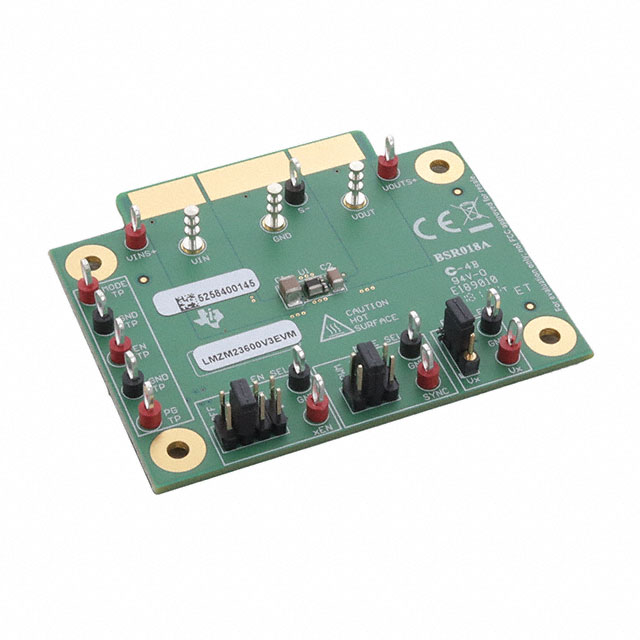

Texas Instruments LMZM23600V3EVM																					Board(s)	Fully Populated	DC/DC Step Down	LMZM23600	3.3 V	4 V	36 V	Non-Isolated	1	750 kHz	Buck	500 mA
Texas Instruments LMZM23600V3SILT	125 °C	-40 °C	OCP SCP UVLO	3.3 V	4 V	10-LDFN Exposed Pad Module	500 mA	36 V	Non-Isolated PoL Module	10-uSIP (3.8x3)	87 %	1	3 mm	0.15 "	3.8 mm	0.06 "	0.12 "	1.6 mm	Surface Mount	ITE (Commercial)
