337-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 16POS 0.156

...

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Contact Type	Number of Positions	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Read Out	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows [custom]	Number of Rows [custom]	Features

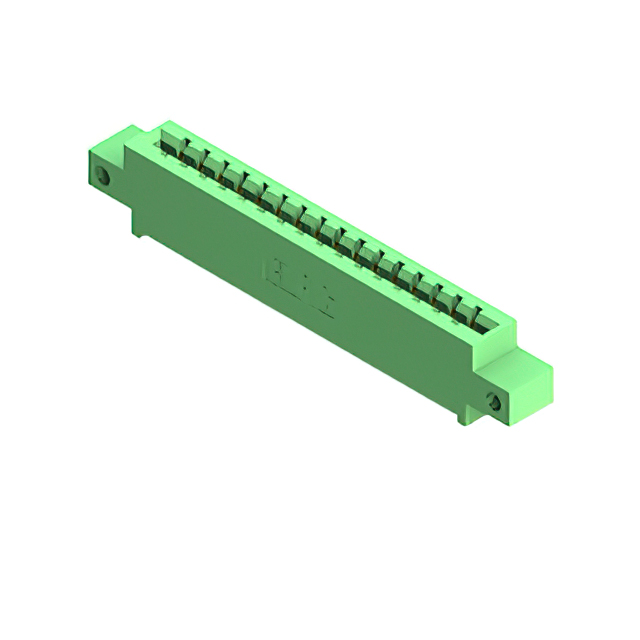

EDAC Inc. 337-016-542-612	Polyester Thermoplastic	1	3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Single	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Green	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Single Edge	16	0.25 Ám	10 Áin	Wire Wrap

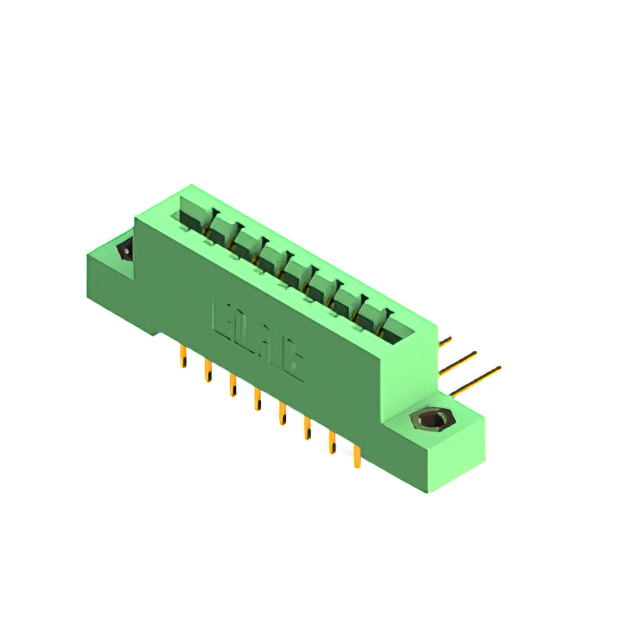

EDAC Inc. 337-016-558-207	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Wire Wrap	2	2

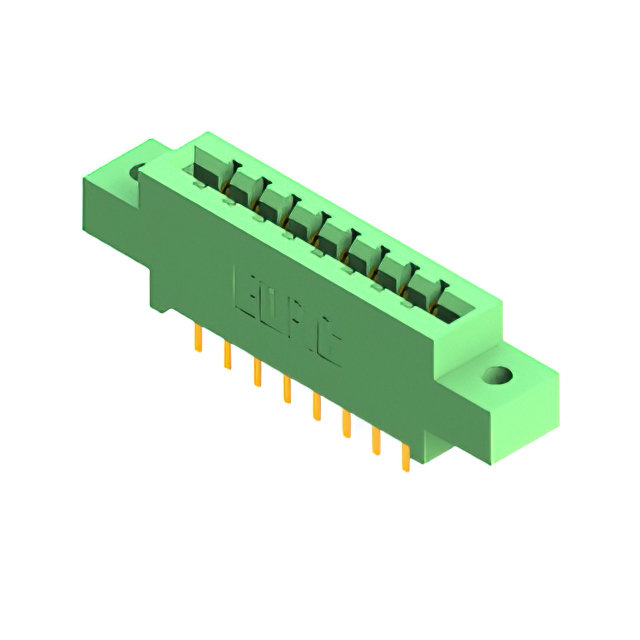

EDAC Inc. 337-016-520-802	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm		Green		0.128 "	3.25 mm	Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Solder	2	2

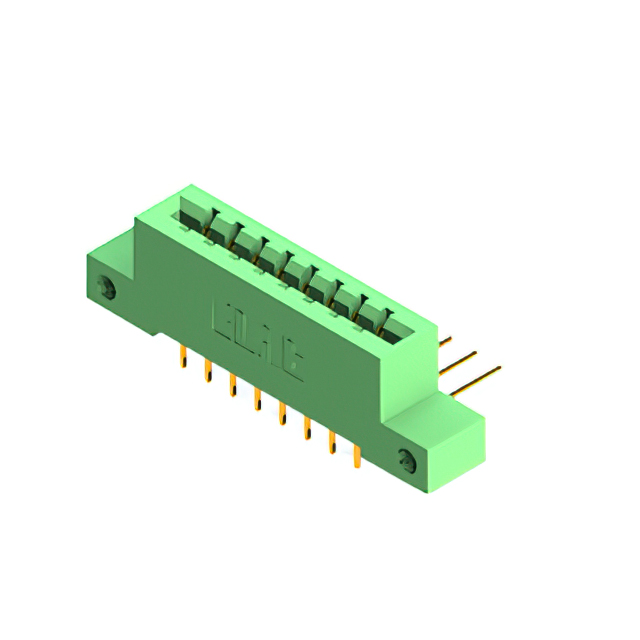

EDAC Inc. 337-016-558-212	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Wire Wrap	2	2

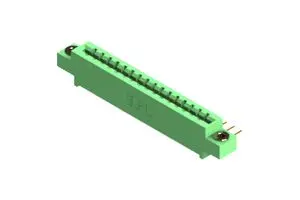

EDAC Inc. 337-016-559-603	Polyester Thermoplastic	1	3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Single	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Green	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Non Specified - Single Edge	16	0.25 Ám	10 Áin	Wire Wrap
EDAC Inc. 337-016-541-858	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Wire Wrap	2	2

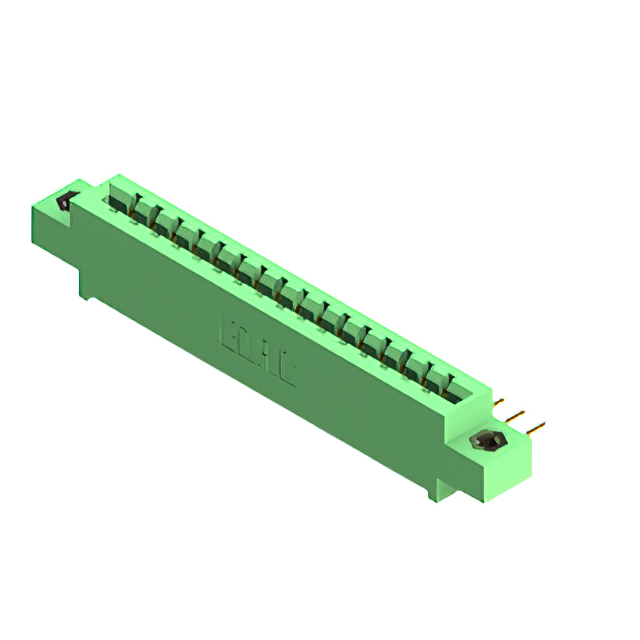

EDAC Inc. 337-016-559-608	Polyester Thermoplastic	1	3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Single	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Green	4-40 Threaded Insert Top Mount Opening			Non Specified - Single Edge	16	0.25 Ám	10 Áin	Wire Wrap
EDAC Inc. 337-016-500-268	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Solder Eyelet(s)	2	2	Card Guides

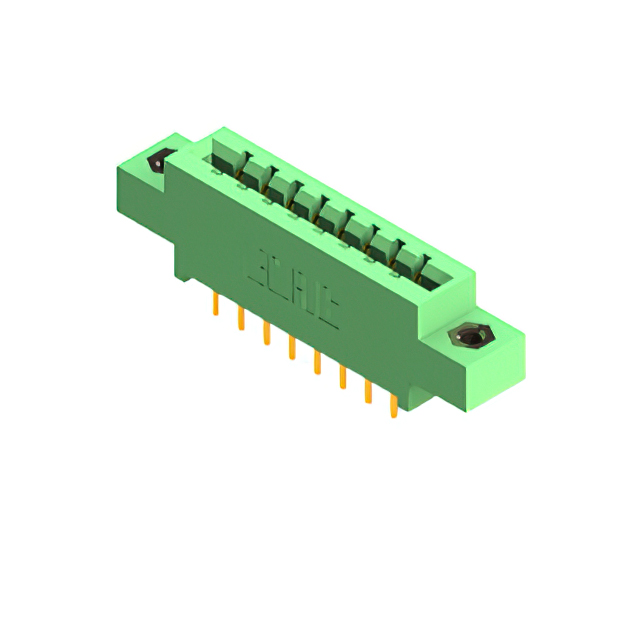

EDAC Inc. 337-016-540-808	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Wire Wrap	2	2

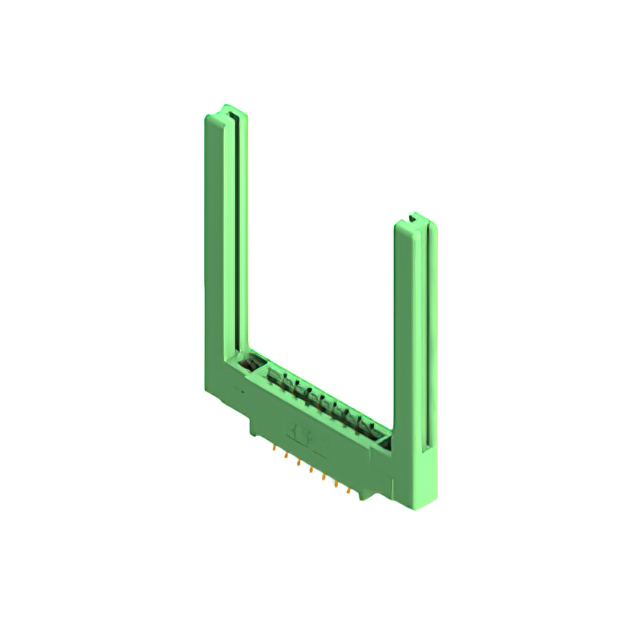

EDAC Inc. 337-016-556-858	Polyester Thermoplastic		3.96 mm	0.156 in	Cantilever	16	Female	-40 C	105 ░C	Copper Alloy	Gold	Dual	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	8	0.25 Ám	10 Áin	Solder	2	2	Card Extender Card Guides
