RT6207 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

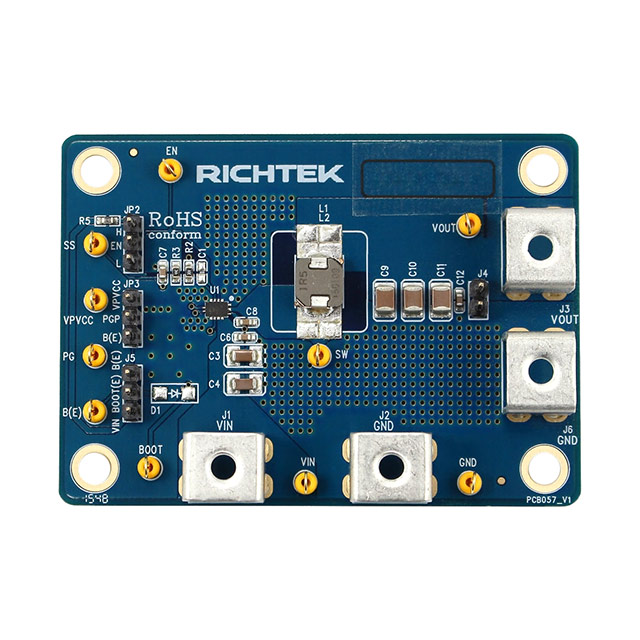

EVAL MODULE FOR RT6207AHGQUF
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Contents | Regulator Topology | Frequency - Switching | Current - Output | Main Purpose | Utilized IC / Part | Voltage - Output (Min/Fixed) [Min] | Topology | Voltage - Output (Max) [Max] | Function | Mounting Type | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Package / Case | Voltage - Input (Min) [Min] | Supplier Device Package | Output Configuration | Voltage - Input (Max) [Max] | Synchronous Rectifier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 18 V | 4.5 V | 1.2 V | Board(s) | Buck | 650 kHz | 5 A | DC/DC Step Down | RT6207A | |||||||||||||||

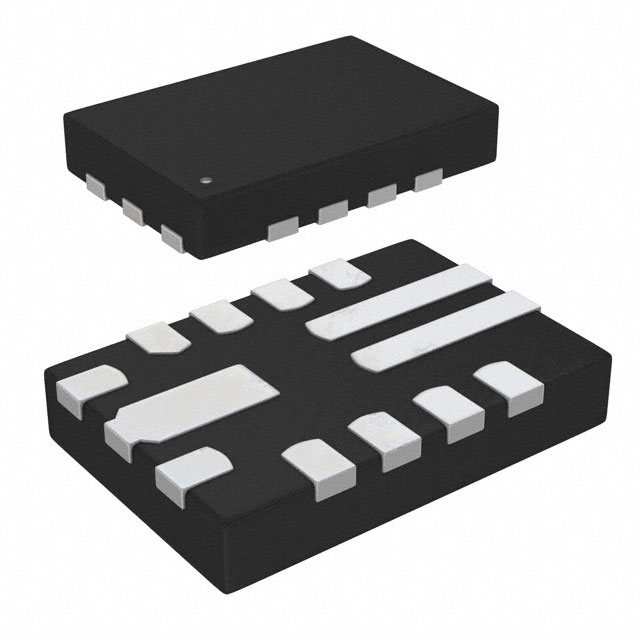

 Richtek USA Inc. | 650 kHz | 5 A | 0.7 V | Buck | 8 V | Step-Down | Surface Mount | Adjustable | 85 C | -40 ¯C | 1 | 13-UFQFN Exposed Pad | 4.5 V | 13-UQFN (2x3) FC | Positive | 18 V |
