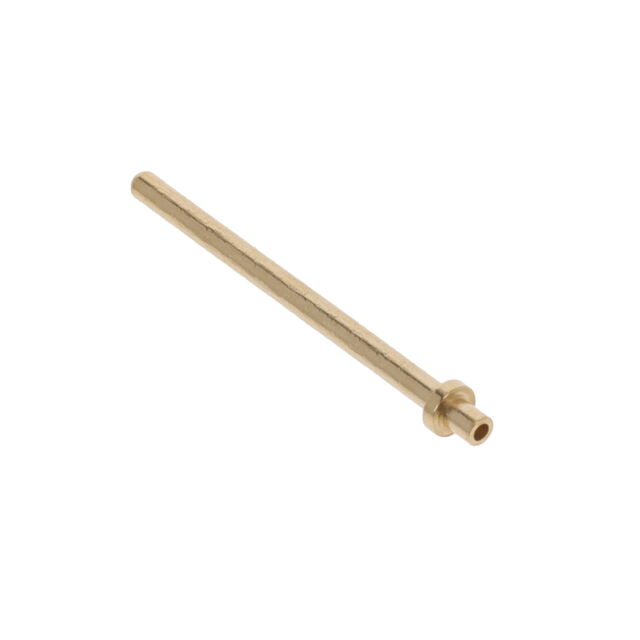

3123-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Board Thickness | Board Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Insulation | Contact Material | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | PC Pin | Non-Insulated | Brass Alloy | Tin | 0.58 in | 14.73 mm | Through Hole | 200 Áin | 5.08 Ám | Swage | Single End | 0.04 in | 1.02 mm | 1.78 mm | 0.07 in | 16.54 mm | 0.651 " | 0.051 " | 1.3 mm |
Mill-Max Manufacturing Corp. | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | PC Pin | Non-Insulated | Brass Alloy | Tin-Lead | 0.58 in | 14.73 mm | Through Hole | 200 Áin | 5.08 Ám | Swage | Single End | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 16.54 mm | 0.651 " | 0.051 " | 1.3 mm |
 Mill-Max Manufacturing Corp. | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | PC Pin | Non-Insulated | Brass Alloy | Gold | 0.58 in | 14.73 mm | Through Hole | 10 Áin | 0.25 Ám | Swage | Single End | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 16.54 mm | 0.651 " | 0.051 " | 1.3 mm |
Mill-Max Manufacturing Corp. | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | PC Pin | Non-Insulated | Brass Alloy | Gold | 0.58 in | 14.73 mm | Through Hole | 20 µin | 0.51 µm | Swage | Single End | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | 16.54 mm | 0.651 " | 0.051 " | 1.3 mm |
