CXM-22 Series

Catalog

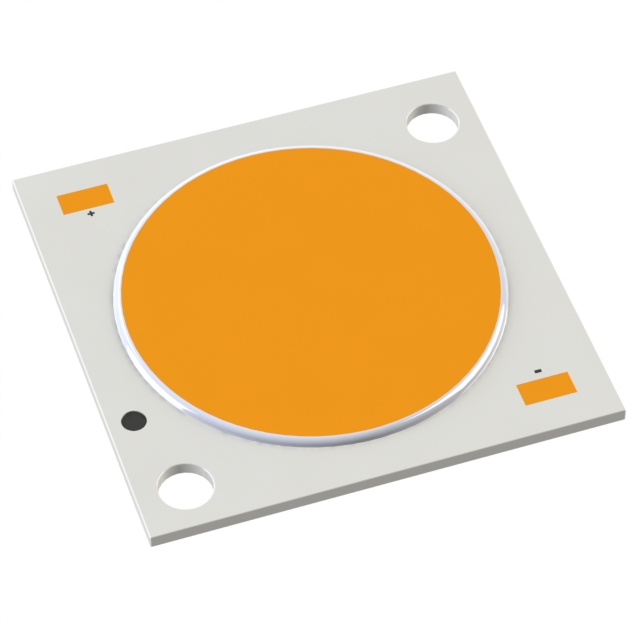

LED COB CXM-22 NEUT WHT SQ 4000K

Part	CRI (Color Rendering Index)	Viewing Angle	Current - Test	Current - Max [Max]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Type	Lens Type	CCT (K)	CCT (K)	Lumens/Watt @ Current - Test	Temperature - Test	Configuration
Luminus Devices Inc. CXM-22-40-90-36-AC00-F2-3	90	120 °	1.28 A	2.56 A	1.37 mm	28 mm	28 mm	35 V	Neutral White	4970 lm	22 mm	Chip On Board (COB)	Flat	4000 K	3-Step MacAdam Ellipse	111 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-50-90-54-TC60-F7-3	90	120 °	1.05 A	3.2 A	1.37 mm	28 mm	28 mm	49.2 V	Cool White	8475 lm	22 mm	Chip On Board (COB)	Flat	5000 K	3-Step MacAdam Ellipse	164 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-50-80-36-AC10-F3-5	80	120 °	1.28 A	2.56 A	1.37 mm	28 mm	28 mm	34 V	Cool White	6495 lm	22 mm	Chip On Board (COB)	Flat	5000 K	5-Step MacAdam Ellipse	149 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-30-80-54-AC32-F4-3	80	120 °	1.1 A	2.4 A	1.37 mm	28 mm	28 mm	51 V	Warm White	7870 lm	22 mm	Chip On Board (COB)	Flat	3000 K	3-Step MacAdam Ellipse	140 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-50-90-54-AC30-F4-5	90	120 °	1.1 A	2.4 A	1.37 mm	28 mm	28 mm	51 V	Cool White	7535 lm	22 mm	Chip On Board (COB)	Flat	5000 K	5-Step MacAdam Ellipse	135 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-30-90-36-AC00-F2-3	90	120 °	1.28 A	2.56 A	1.37 mm	28 mm	28 mm	36 V	Warm White	4590 lm	22 mm	Chip On Board (COB)	Flat	3000 K	3-Step MacAdam Ellipse	100 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-30-80-54-TC60-F7-3	80	120 °	1.05 A	3.2 A	1.37 mm	28 mm	28 mm	49.2 V	Warm White	9280 lm	22 mm	Chip On Board (COB)	Flat	3000 K	3-Step MacAdam Ellipse	180 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-65-70-36-AC10-F3-3	70	120 °	1.28 A	2.56 A	1.37 mm	28 mm	28 mm	34 V	Cool White	6800 lm	22 mm	Chip On Board (COB)	Flat	6500 K		156 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-35-95-54-AC40-F5-2	95	120 °	1.05 A	3.5 A	1.37 mm	28 mm	28 mm	50 V	Warm White	7260 lm	22 mm	Chip On Board (COB)	Flat	3500 K		138 lm/W	85 °C	Square
Luminus Devices Inc. CXM-22-50-70-54-AC30-F4-5	70	120 °	1.1 A	2.4 A	1.37 mm	28 mm	28 mm	51 V	Cool White	9425 lm	22 mm	Chip On Board (COB)	Flat	5000 K	5-Step MacAdam Ellipse	168 lm/W	85 °C	Square
