TPS2553-Q1 Series
Automotive 0.075-1.3A adj. ILIMIT, 2.5-6.5V, 85-mΩ USB power switch, active-high, reverse blocking
Manufacturer: Texas Instruments
Catalog
Automotive 0.075-1.3A adj. ILIMIT, 2.5-6.5V, 85-mΩ USB power switch, active-high, reverse blocking
| Part | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Current - Output (Max) [Max] | Ratio - Input:Output [custom] | Output Type | Voltage - Load [Max] | Voltage - Load [Min] | Rds On (Typ) | Package / Case | Number of Outputs | Switch Type | Mounting Type | Features | Supplier Device Package | Input Type | Voltage - Supply (Vcc/Vdd) | Fault Protection | Utilized IC / Part | Supplied Contents | Type | Secondary Attributes | Primary Attributes [Min] | Primary Attributes [Max] | Function | Embedded | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | On/Off | 150 °C | -40 °C | High Side | 1.5 A | 1:1 | N-Channel | 6.5 V | 2.5 V | 85 mOhm | SOT-23-6 | 1 | General Purpose | Surface Mount | Slew Rate Controlled Status Flag | SOT-23-6 | Non-Inverting | Current Limiting (Adjustable) Over Temperature UVLO | ||||||||||
 Texas Instruments | On/Off | 150 °C | -40 °C | High Side | 1.5 A | 1:1 | N-Channel | 6.5 V | 2.7 V | 85 mOhm | SOT-23-6 | 1 | General Purpose | Surface Mount | Slew Rate Controlled Status Flag | SOT-23-6 | Non-Inverting | Current Limiting (Adjustable) Over Temperature UVLO | ||||||||||
 Texas Instruments | On/Off | 150 °C | -40 °C | High Side | 1.5 A | 1:1 | N-Channel | 6.5 V | 2.5 V | 100 mOhm | 1 | General Purpose | Surface Mount | Slew Rate Controlled Status Flag | 6-WSON (2x2) | Non-Inverting | Current Limiting (Adjustable) Over Temperature UVLO | |||||||||||

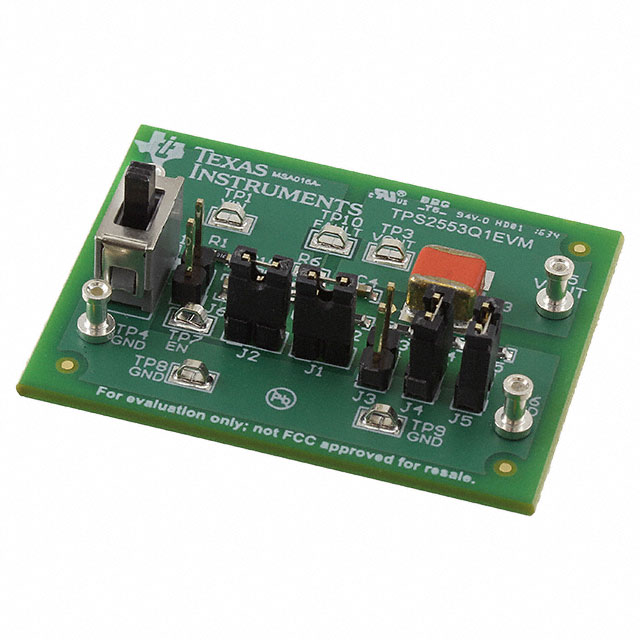

 Texas Instruments | TPS2553-1 | Board(s) | Power Management | Overvoltage Short-Circuit Thermal Undervoltage Protection | 2.5 V | 6.5 V | Power Distribution Switch (Load Switch) | |||||||||||||||||||||
Texas Instruments | On/Off | 150 °C | -40 °C | High Side | 1.5 A | 1:1 | N-Channel | 6.5 V | 2.5 V | 100 mOhm | 1 | General Purpose | Surface Mount | Slew Rate Controlled Status Flag | 6-WSON (2x2) | Non-Inverting | Current Limiting (Adjustable) Over Temperature UVLO | |||||||||||

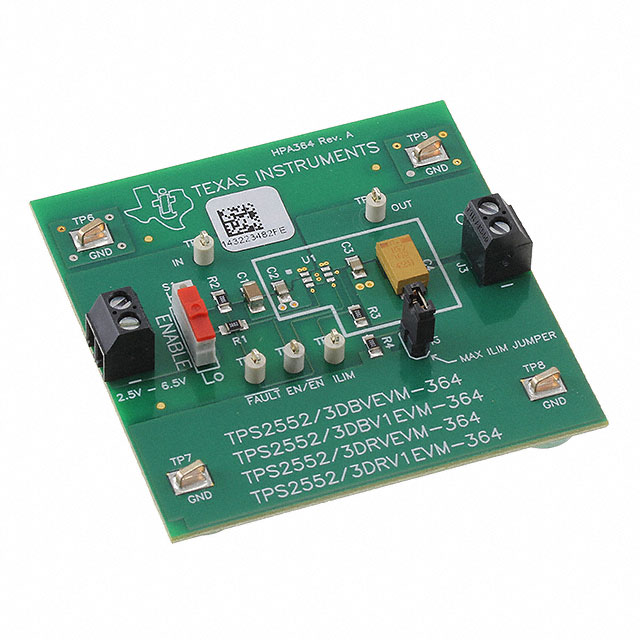

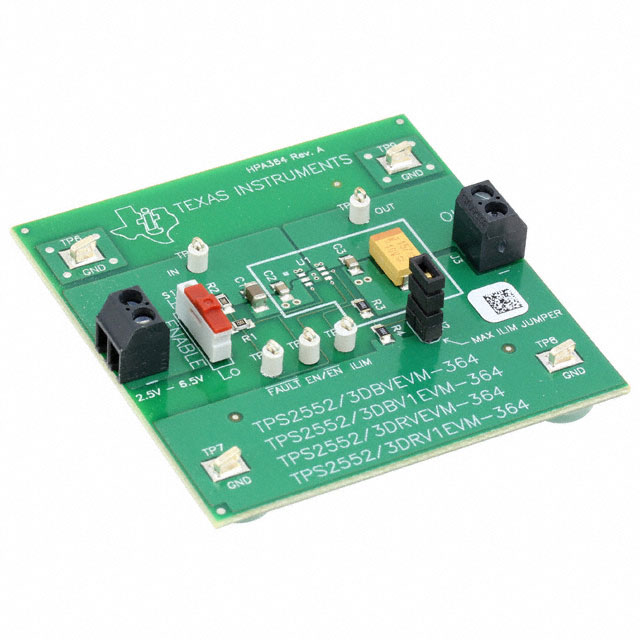

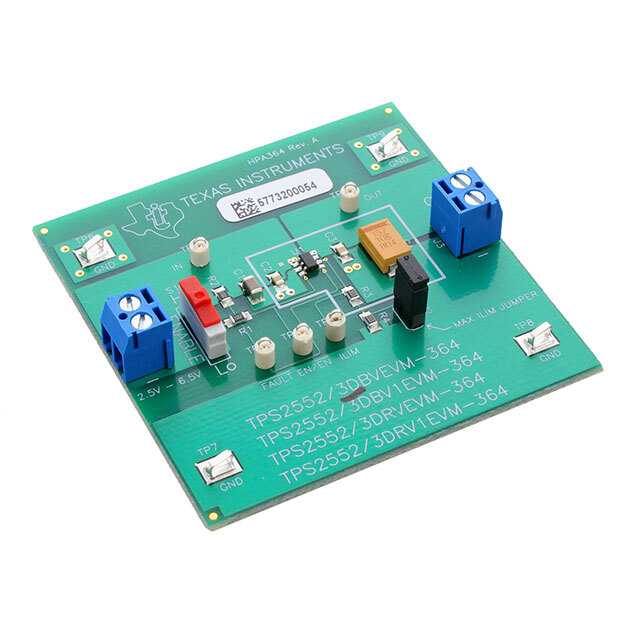

 Texas Instruments | TPS2553 | Board(s) | Power Management | Overvoltage Short-Circuit Thermal Undervoltage Protection | 2.5 V | 6.5 V | Power Distribution Switch (Load Switch) | |||||||||||||||||||||
Texas Instruments | On/Off | 150 °C | -40 °C | High Side | 1.5 A | 1:1 | N-Channel | 6.5 V | 2.5 V | 85 mOhm | SOT-23-6 | 1 | General Purpose | Surface Mount | Slew Rate Controlled Status Flag | SOT-23-6 | Non-Inverting | Current Limiting (Adjustable) Over Temperature UVLO | ||||||||||
Texas Instruments | On/Off | 150 °C | -40 °C | High Side | 1.5 A | 1:1 | N-Channel | 6.5 V | 2.5 V | 85 mOhm | SOT-23-6 | 1 | General Purpose | Surface Mount | Slew Rate Controlled Status Flag | SOT-23-6 | Non-Inverting | Current Limiting (Adjustable) Over Temperature UVLO | ||||||||||
 Texas Instruments | TPS2553 | Board(s) | Power Management | Overvoltage Short-Circuit Thermal Undervoltage Protection | 2.5 V | 6.5 V | Power Distribution Switch (Load Switch) | Board(s) | ||||||||||||||||||||
 Texas Instruments | Board(s) | Power Management | Power Distribution Switch (Load Switch) |
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C3BUp to 1.5-A Maximum Load Current±6% Current-Limit Accuracy at 1.7 A (Typical)Meets Universal Serial Bus (USB) Current-Limiting RequirementsBackwards Compatible With TPS2550/51 and TPS2551-Q1Adjustable Current-Limit, 75 mA–1300 mA (Typical)Constant-Current VersionFast Overcurrent Response - 2-µs (Typical)85-mΩ High-Side MOSFETReverse Input-Output Voltage ProtectionOperating Range: 2.5 V to 6.5 VBuilt-in Soft-Start15 kV ESD Protection per IEC 61000-4-2 (With External Capacitance)See theTI Switch PortfolioQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C3BUp to 1.5-A Maximum Load Current±6% Current-Limit Accuracy at 1.7 A (Typical)Meets Universal Serial Bus (USB) Current-Limiting RequirementsBackwards Compatible With TPS2550/51 and TPS2551-Q1Adjustable Current-Limit, 75 mA–1300 mA (Typical)Constant-Current VersionFast Overcurrent Response - 2-µs (Typical)85-mΩ High-Side MOSFETReverse Input-Output Voltage ProtectionOperating Range: 2.5 V to 6.5 VBuilt-in Soft-Start15 kV ESD Protection per IEC 61000-4-2 (With External Capacitance)See theTI Switch Portfolio
Description
AI
The TPS255x and TPS255x-1 power-distribution switches are intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered and provide up to 1.5 A of continuous load current. These devices offer a programmable current-limit threshold between 75 mA and 1.7 A (typical) through an external resistor. Current-limit accuracy as tight as ±6% can be achieved at the higher current-limit settings. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
TPS255x devices limit the output current to a safe level by using a constant-current mode when the output load exceeds the current-limit threshold. TPS255x-1 devices provide circuit breaker functionality by latching off the power switch during overcurrent or reverse-voltage situations. An internal reverse-voltage comparator disables the power-switch when the output voltage is driven higher than the input to protect devices on the input side of the switch. TheFAULToutput asserts low during overcurrent and reverse-voltage conditions.
The TPS255x and TPS255x-1 power-distribution switches are intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered and provide up to 1.5 A of continuous load current. These devices offer a programmable current-limit threshold between 75 mA and 1.7 A (typical) through an external resistor. Current-limit accuracy as tight as ±6% can be achieved at the higher current-limit settings. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
TPS255x devices limit the output current to a safe level by using a constant-current mode when the output load exceeds the current-limit threshold. TPS255x-1 devices provide circuit breaker functionality by latching off the power switch during overcurrent or reverse-voltage situations. An internal reverse-voltage comparator disables the power-switch when the output voltage is driven higher than the input to protect devices on the input side of the switch. TheFAULToutput asserts low during overcurrent and reverse-voltage conditions.
