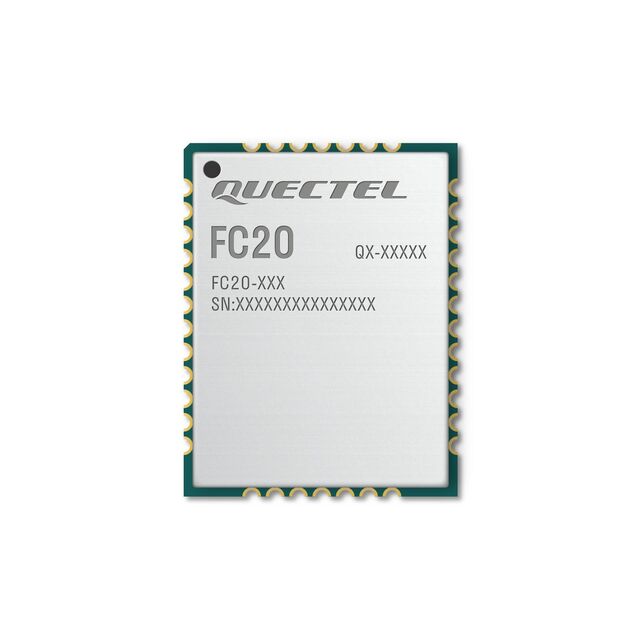

FC20 Series

Manufacturer: Quectel

Catalog

RF TXRX MOD BLUETOOTH WIFISMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Current - Receiving	Data Rate	Serial Interfaces	Protocol	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	RF Family/Standard	Power - Output	Frequency	Sensitivity	Utilized IC / Part
Quectel FC20N-Q73B	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm

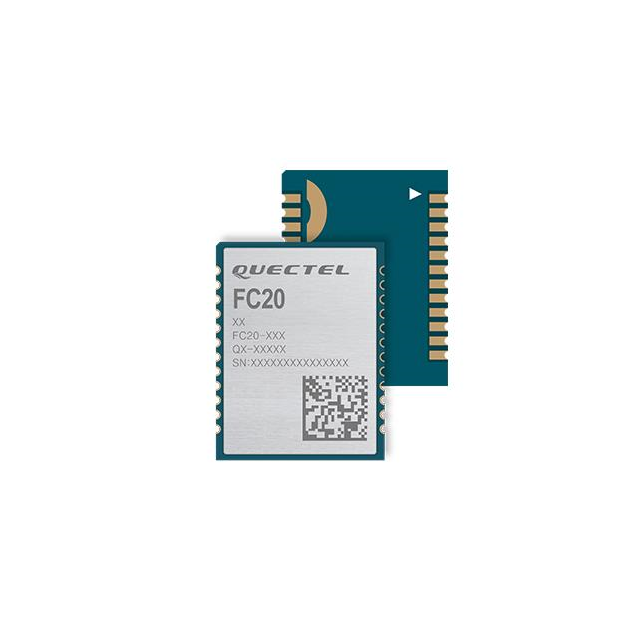

Quectel FC20-Q73	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm	QCA1023
Quectel FC20N-Q73	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm
Quectel FC20TEA-Q73	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm
Quectel FC20NTEA-Q73B	85 °C	-40 °C	66 mA	66 mA	433 Mbps	SDIO UART	802.11a/b/g/n/ac Bluetooth v4.2	Module	Surface Mount	3.14 V	3.46 V	Antenna Not Included	Bluetooth WiFi	17.5 dBm	2.4 GHz 5 GHz	-92 dBm
