TA2-1F Series

Catalog

SWITCH TOGGLE SPDT 20A 125V

Part	Electrical Life (Cycles)	Circuit	Termination Style	Voltage Rating - AC	Actuator Type	Ingress Protection Description	Ingress Protection IP Rating	Panel Cutout Diameter	Panel Cutout Shape	Operating Temperature (Max)	Operating Temperature (Min)	Bushing Thread	Voltage Rating - DC	Actuator Length	Mounting Type	Switch Function	Current Rating	Illumination	Quick Connect Size (0.250")

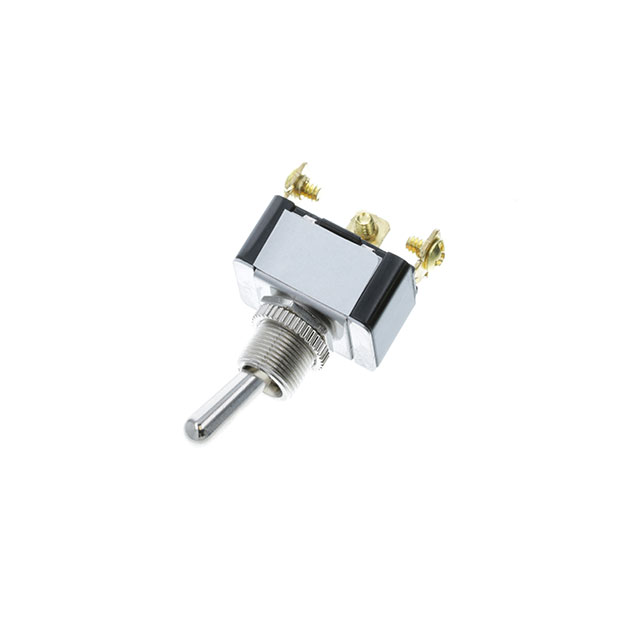

Switch Components TA2-1F-DC-6-O	6000 Cycles	SPDT	Screw Terminal	125 V	Standard Round	Dust Protected Water Resistant	IP55	12 mm	Circular	85 °C	-20 °C	15/32-32	14 V	16.5 mm	Panel Mount	On-Off-On	20 A 21 A	Non-Illuminated

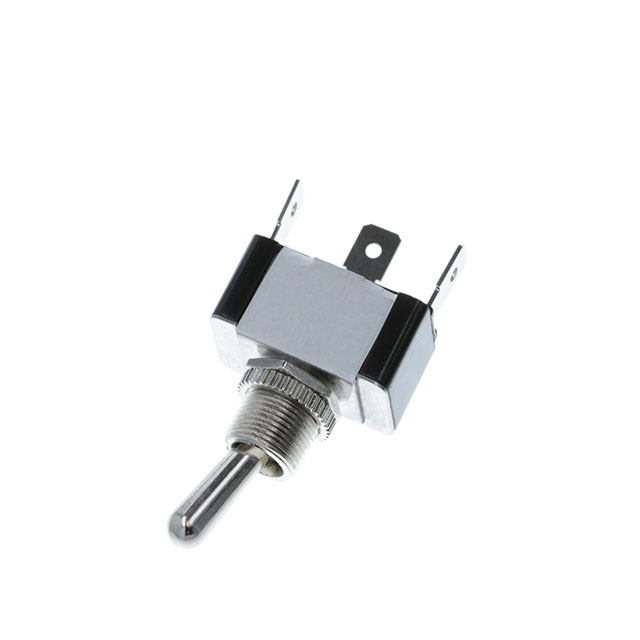

Switch Components TA2-1F-AC-1		SPDT	Quick Connect	250 V	Standard Round			12.2 mm	Circular			15/32-32		16.5 mm	Panel Mount	On-Off-On	12 A	Non-Illuminated	0.25 in
Switch Components TA2-1F-DC-1	6000 Cycles	SPDT	Quick Connect	125 V	Standard Round			12 mm	Circular	85 °C	-20 °C	15/32-32	14 V	16.5 mm	Panel Mount	On-Off-On	20 A 21 A	Non-Illuminated	0.25 in
Switch Components TA2-1F-DC-1-O	6000 Cycles	SPDT	Quick Connect	125 V	Standard Round	Dust Protected Water Resistant	IP55	12 mm	Circular	85 °C	-20 °C	15/32-32	14 V	16.5 mm	Panel Mount	On-Off-On	20 A 21 A	Non-Illuminated	0.25 in

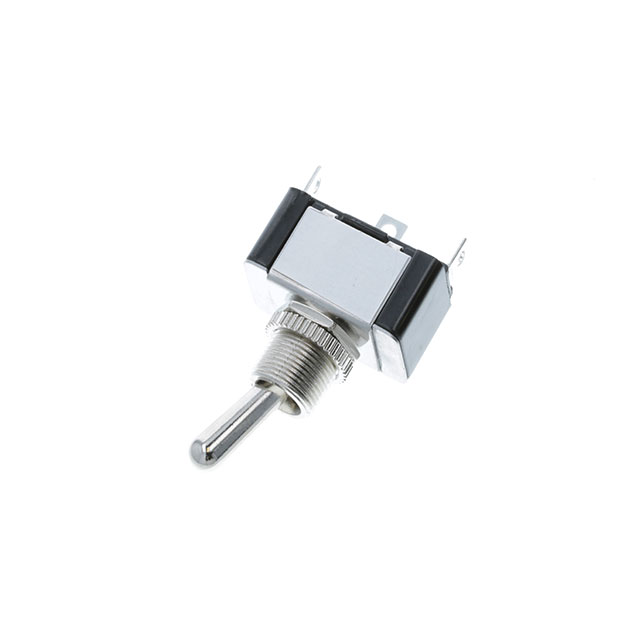

Switch Components TA2-1F-DC-5	6000 Cycles	SPDT	Solder Lug	125 V	Standard Round			12 mm	Circular	85 °C	-20 °C	15/32-32	14 V	16.5 mm	Panel Mount	On-Off-On	20 A 21 A	Non-Illuminated
Switch Components TA2-1F-DC-6	6000 Cycles	SPDT	Screw Terminal	125 V	Standard Round			12 mm	Circular	85 °C	-20 °C	15/32-32	14 V	16.5 mm	Panel Mount	On-Off-On	20 A 21 A	Non-Illuminated
