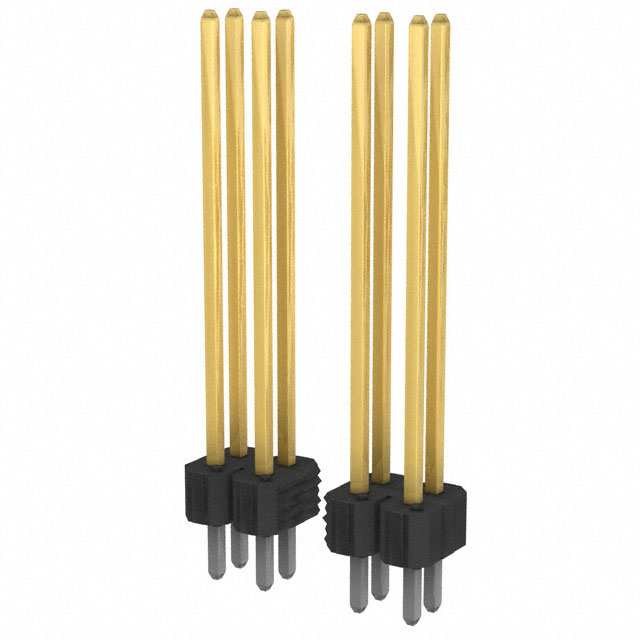

89542 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Contact Material	Number of Rows	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Termination	Fastening Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Shape	Contact Type
Amphenol ICC (FCI) 89542-272HLF	Phosphor Bronze	2	Through Hole	21.34 mm	0.84 in	Black	All	3.18 mm	0.125 in	15 µin	0.38 µm	0.1 in	2.54 mm	27.05 mm	1.065 in	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Unshrouded	Solder	Push-Pull	72	2.54 mm	0.1 in	Header	Square	Male Pin
Amphenol ICC (FCI) 89542-172HLF	Phosphor Bronze	2	Through Hole	21.34 mm	0.84 in	Black	All	3.18 mm	0.125 in	30 Áin	0.76 Ám	0.1 in	2.54 mm	27.05 mm	1.065 in	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™	Unshrouded	Solder	Push-Pull	72	2.54 mm	0.1 in	Header	Square	Male Pin
