ASMT-YTD7 Series
Manufacturer: Broadcom Limited
Catalog

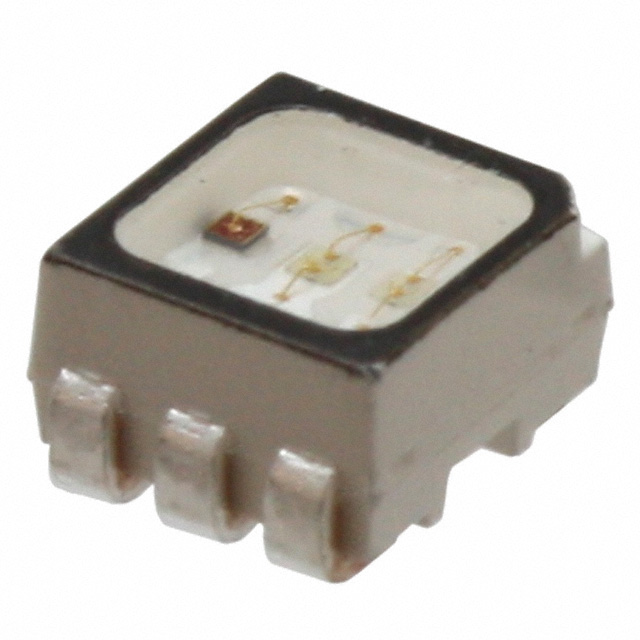

LED RGB DIFFUSED 6PLCC SMD
| Part | Mounting Type | Lens Size | Millicandela Rating | Lens Transparency | Size / Dimension [x] | Size / Dimension [y] | Configuration | Viewing Angle | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Lens Style | Voltage - Forward (Vf) (Typ) | Wavelength - Dominant [custom] | Wavelength - Dominant [custom] | Wavelength - Dominant [custom] | Current - Test | Height (Max) [Max] [z] | Color | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Surface Mount | 2.3 mm | 384 mcd 650 mcd 1900 mcd | Diffused | 3 mm | 2.8 mm | Independent | 120 ° | 630 nm | 465 nm | 522 nm | Square with Flat Top | 2.1 V 3.1 V 3.1 V | 469 nm | 529 nm | 623 nm | 20mA Blue 20mA Green 20mA Red | 2 mm | Blue Green Red | 6-SMD J-Lead | 6-PLCC |
