E3AS-F1500 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

PHOTOELECTRIC SENSOR; TIME-OF-FL

Part	Output Configuration	Ingress Protection	Cable Length	Cable Length	Connection Method	Adjustment Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Response Time
Omron Electronics Inc-EMC Div E3AS-F1500IMD 5M	PNP	IEC 60529 IP67 IP69K	196.85 in	5 m	Cable	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms

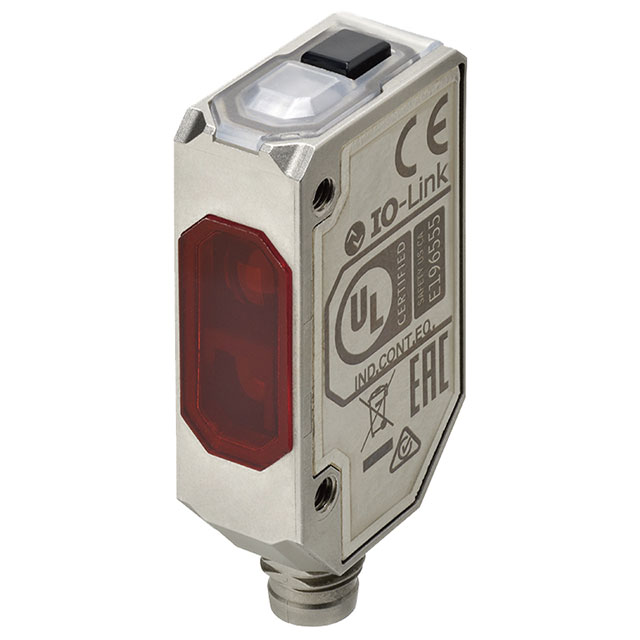

Omron Electronics Inc-EMC Div E3AS-F1500IPT M3	PNP	IEC 60529 IP67 IP69K			Connector	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
Omron Electronics Inc-EMC Div E3AS-F1500IPD 5M	PNP	IEC 60529 IP67 IP69K	196.85 in	5 m	Cable	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
Omron Electronics Inc-EMC Div E3AS-F1500IMN 2M	NPN	IP67 IP69K	78.74 in	2 m	Cable		30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms

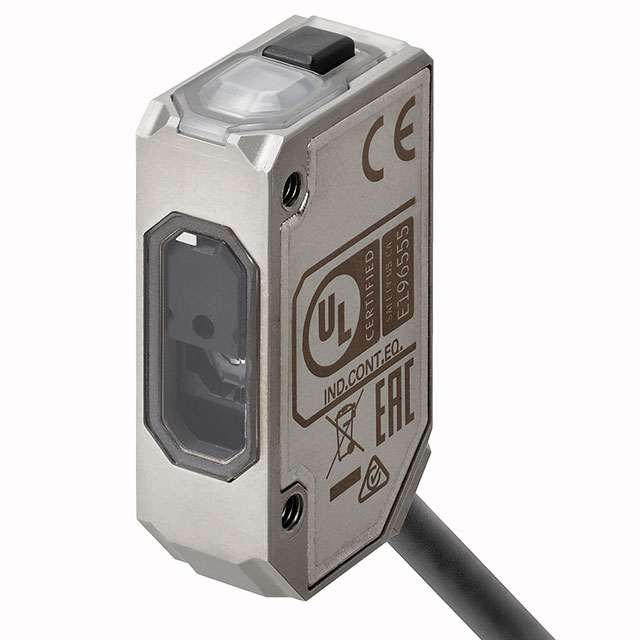

Omron Electronics Inc-EMC Div E3AS-F1500IMT 2M	PNP	IEC 60529 IP67 IP69K	78.74 in	2 m	Cable	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
Omron Electronics Inc-EMC Div E3AS-F1500IPN 5M	NPN	IEC 60529 IP67 IP69K	196.85 in	5 m	Cable	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms

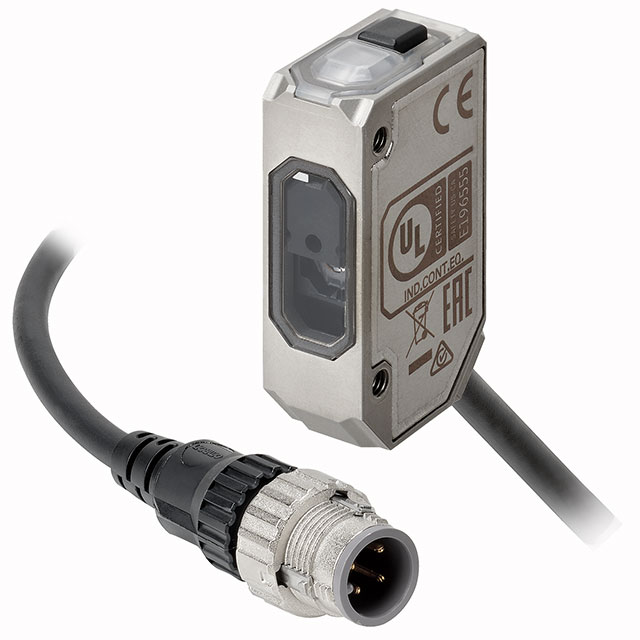

Omron Electronics Inc-EMC Div E3AS-F1500IMN-M1TJ 0.3M	NPN	IP67 IP69K	11.81 in	30 cm	Cable with Connector		30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
Omron Electronics Inc-EMC Div E3AS-F1500IMT M3	PNP	IEC 60529 IP67 IP69K			Connector	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
Omron Electronics Inc-EMC Div E3AS-F1500IPN M3	NPN	IP67 IP69K			Connector		30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
Omron Electronics Inc-EMC Div E3AS-F1500IPD-M3J 0.3M	PNP	IEC 60529 IP67 IP69K	11.81 in	30 cm	Cable with Connector	Teaching Method	30 VDC	10 VDC	940 nm	Infrared	55 °C	-20 C	Reflective	1.5 m	59.055 "	1.969 "	5 cm	150 ms
