LHD-09 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 9POS 3.96MM

Part	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Contact Material	Fastening Type	Insulation Color	Number of Rows	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Style	Contact Shape	Current Rating (Amps)	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Material	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

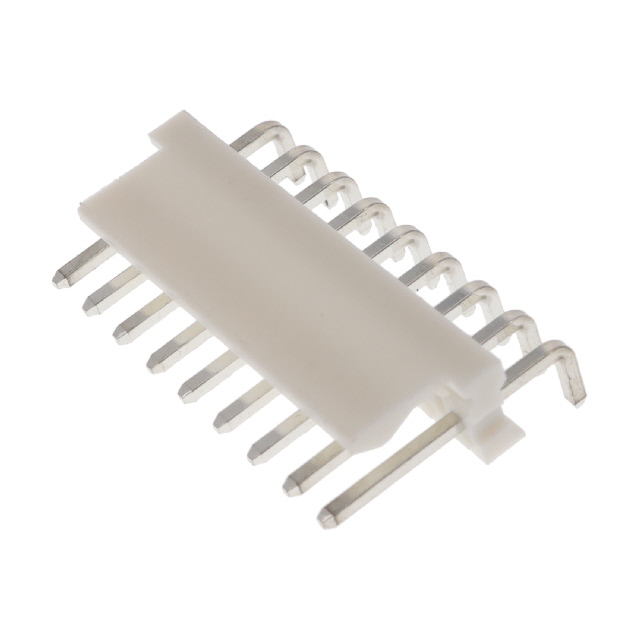

Adam Tech LHD-09-TRA	0.126 "	3.2 mm	3.96 mm	0.156 in	Right Angle Through Hole	Male Pin	Brass	Friction Lock	White	1	UL94 V-2	11.4 mm	0.449 in	Board to Cable/Wire	Square	7 A	9	85 °C	-40 C	Header	Glass Filled Nylon 6/6 Polyamide (PA66)	Solder	7.62 mm	0.3 in	All	Shrouded - 1 Wall

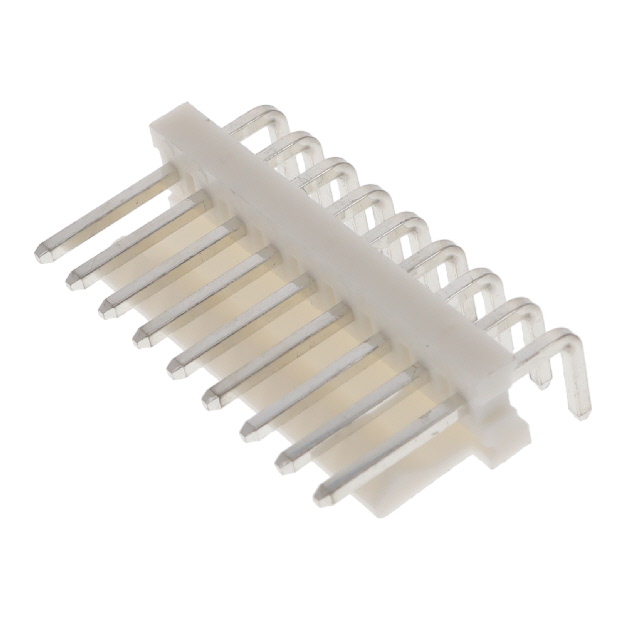

Adam Tech LHD-09-TRB	0.126 "	3.2 mm	3.96 mm	0.156 in	Right Angle Through Hole	Male Pin	Brass	Friction Lock	White	1	UL94 V-2	11.4 mm	0.449 in	Board to Cable/Wire	Square	7 A	9	85 °C	-40 C	Header	Glass Filled Nylon 6/6 Polyamide (PA66)	Solder	7.62 mm	0.3 in	All	Shrouded - 1 Wall	Tin

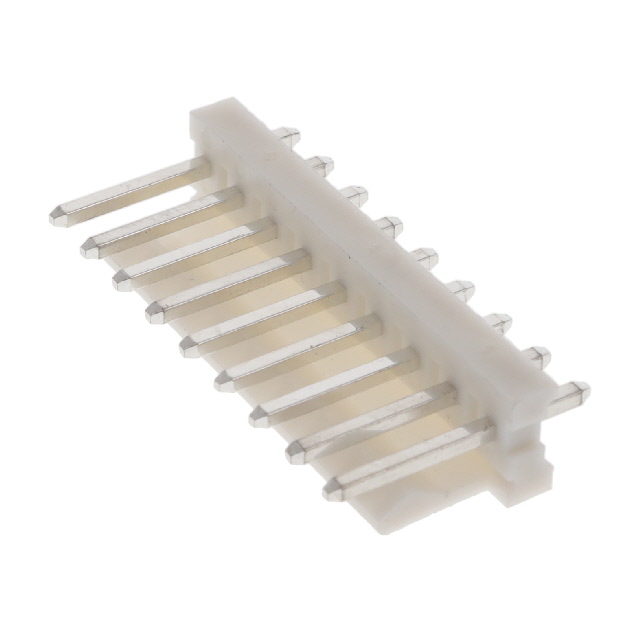

Adam Tech LHD-09-TS			3.96 mm	0.156 in	Through Hole	Male Pin	Brass	Friction Lock	White	1	UL94 V-2	11.38 mm	0.448 in	Board to Cable/Wire	Square	7 A	9	105 ░C	-40 C	Header	Nylon 6/6 Polyamide (PA66)	Solder			All	Shrouded - 1 Wall	Tin	18.16 mm	0.715 in	0.142 in	3.6 mm	10.8 mm	0.425 in
