S20F1C-P Series
Manufacturer: ODU
Beta
⌘K

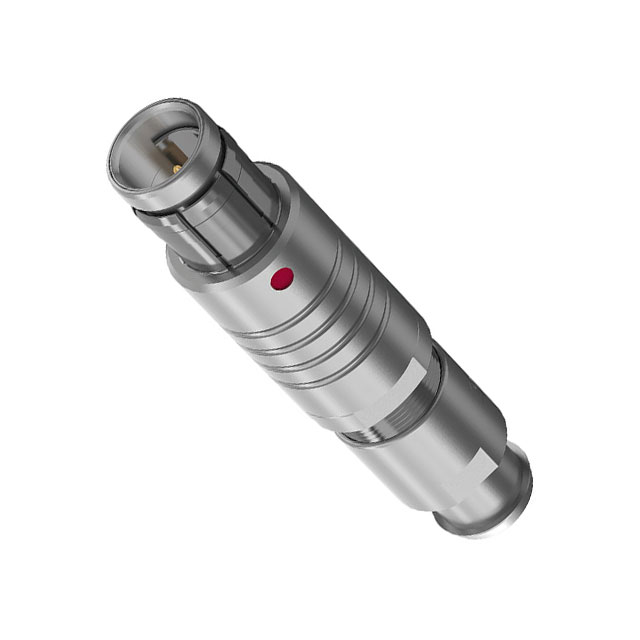

ODU MINI-SNAP STRAIGHT PLUG, SZ0
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Material | Shell Material | Voltage Rating | Orientation [custom] | Mounting Type | Features | Connector Type | Shielding | Current Rating (Amps) | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Number of Positions | Insert Material | Material Flammability Rating | Ingress Protection | Color | Backshell Material, Plating | Applications | Primary Material | Shell Finish | Shell Size - Insert [custom] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
120 °C | -40 C | Push-Pull | Brass | Brass | 300 VDC | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 4 A | 0.039 in | 1.5 mm | 0.059 in | 1 mm | 9 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | |
120 °C | -40 C | Push-Pull | Brass | Brass | 300 VDC | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 4 A | 0.157 in | 4.5 mm | 0.177 " | 4 mm | 7 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | |
120 °C | -40 C | Push-Pull | Brass | Brass | 500 V | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 7.5 A | 0.098 in | 3 mm | 0.118 " | 2.5 mm | 2 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | |
120 °C | -40 C | Push-Pull | Brass | Brass | 300 VDC | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 4 A | 0.118 in | 3.5 mm | 0.138 in | 3 mm | 7 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | |
120 °C | -40 C | Push-Pull | Brass | Brass | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Shielded | 4 A | 0.157 in | 4.5 mm | 0.177 " | 4 mm | 9 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | ||
120 °C | -40 C | Push-Pull | Brass | Brass | 300 VDC | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 4 A | 0.039 in | 1.5 mm | 0.059 in | 1 mm | 7 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | |
120 °C | -40 C | Push-Pull | Brass | Brass | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Shielded | 4 A | 0.177 in | 5 mm | 0.197 in | 4.5 mm | 9 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | ||
120 °C | -40 C | Push-Pull | Brass | Brass | 500 V | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 7.5 A | 0.039 in | 1.5 mm | 0.059 in | 1 mm | 2 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | |
120 °C | -40 C | Push-Pull | Brass | Brass | 400 V | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 7.5 A | 0.079 in 2 mm | 0.098 in 2.5 mm | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold | ||||
120 °C | -40 C | Push-Pull | Brass | Brass | 300 VDC | 1 | Free Hanging (In-Line) | Backshell Strain Relief | Plug Male Pins | Unshielded | 4 A | 0.177 in | 5 mm | 0.197 in | 4.5 mm | 7 | Polyetheretherketone (PEEK) | UL94 V-0 | IP50 - Dust Protected | Silver | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Metal | Chrome over Nickel | 0 | Gold |
