T 3651 Series

Catalog

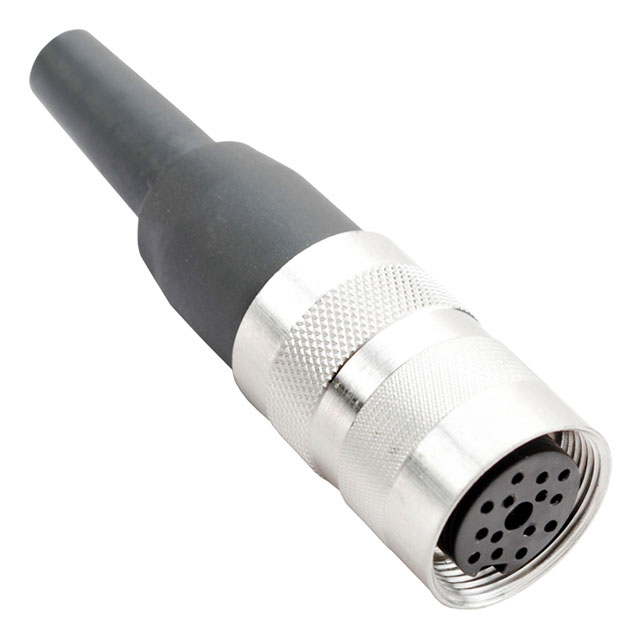

CONN PLUG FMALE 14P SOLDER CUP

Part	Shielding	Current Rating (Amps)	Orientation	Shell Size - Insert	Color	Fastening Type	Contact Finish - Mating	Primary Material	Shell Finish	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Shell Material	Features	Voltage Rating
Amphenol Tuchel Industrial T 3651 004	Shielded	3 A	Keyed	M16-14	Silver	Threaded	Gold	Metal	Nickel	IP40	Plug Female Sockets	-40 C	100 °C	Free Hanging (In-Line)	14	Die Cast	Cable Clamp Strain Relief	60 VDC
Amphenol Tuchel Industrial T 3651 000	Shielded	3 A	Keyed	M16-14	Silver	Threaded	Gold	Metal	Nickel	IP40	Plug Female Sockets	-40 C	100 °C	Free Hanging (In-Line)	14	Die Cast	Strain Relief	60 VDC
Amphenol Tuchel Industrial T 3651 002	Shielded	3 A	Keyed	M16-14	Silver	Threaded	Gold	Metal	Nickel	IP40	Plug Female Sockets	-40 C	100 °C	Free Hanging (In-Line)	14	Die Cast	Cable Clamp Strain Relief	60 VDC
Amphenol Tuchel Industrial T 3651 001	Shielded	3 A	Keyed	M16-14	Silver	Threaded	Silver	Metal	Nickel	IP40	Plug Female Sockets	-40 C	100 °C	Free Hanging (In-Line)	14	Die Cast	Strain Relief	60 VDC
